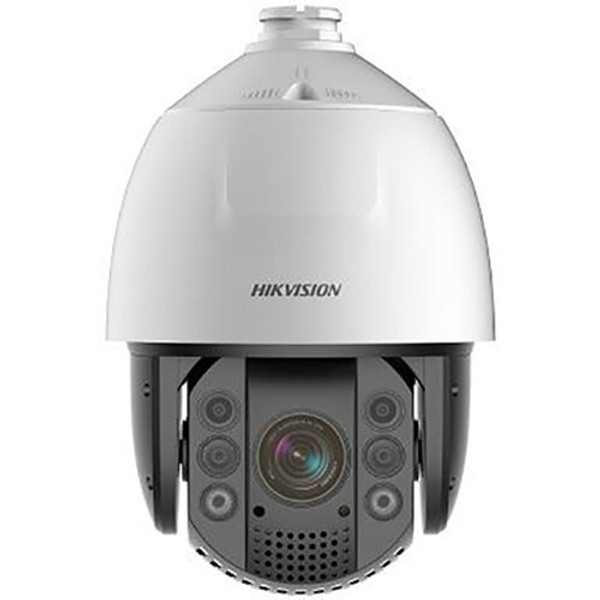

Hikvision AcuSense DS-2DE7A825IW-AEB 8MP Outdoor PTZ Network Dome Camera with Night Vision & Heater

Suitable for monitoring outdoor spaces such as rivers, roadways, railways, airports, squares, parks, and other large venues, the AcuSense DS-2DE7A825IW-AEB 8MP PTZ Network Dome Camera from Hikvision uses a 1/1.8" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 24 fps. IR LEDs provide up to 660' of night vision. A 5.9-147.5mm varifocal lens delivers a 50.8 to 2.6° horizontal field of view. The camera features endless panning, a -15 to 90° tilt range, and 25x optical zoom. Two-way audio is possible thanks to a built-in speaker, an audio input, and an audio output. A memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

Compliance with ONVIF profiles G, S, and T enables interoperability with a wide range of surveillance devices. This PTZ camera is housed in an IP66- and IK10-rated (excluding glass window) enclosure that is suitable for outdoor use in areas at risk of vandalism. An integrated heater ensures that the camera will be operational in temperatures as low as -22°F.

• 3840 x 2160 Resolution at 24 fps
• IR LEDs for Night Vision up to 660'
• 5.9-147.5mm Varifocal Lens
• 50.8 to 2.6° FOV & 25x Optical Zoom
• Endless Panning & -15 to 90° Tilt Range
• Two-Way Audio
• microSD Slot Supports up to 256GB
• Complies with ONVIF Profiles G, S & T
• IP66 Rated for Outdoor Use
• IK10-Rated Vandal Resistance

Specifications

Key Specs
Sensor 8 MP 1/1.8" CMOS
Focal Length 5.9 to 147.5mm
Lens Field of View
Horizontal: 50.8 to 2.6°
Vertical: 29.4 to 1.5°
Diagonal: 57.4 to 3°
Pan/Tilt
Programmed
Pan: 360° at 240°/s
Programmed
Tilt: 105° (-15 to 90°) at 200°/s
Power Source AC, PoE 802.3bt (60 W)
Illumination IR LEDs up to 660' / 201.2 m

Camera
Sensor 8 MP 1/1.8" CMOS
Focal Length 5.9 to 147.5mm
Maximum Aperture f/1.5
Zoom
Optical: 25x
Digital: 16x
Lens Field of View
Horizontal: 50.8 to 2.6°
Vertical: 29.4 to 1.5°
Diagonal: 57.4 to 3°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination
Color: 0.005 Lux
B&W: 0 Lux
Shutter Speed 1/30000 to 1 Seconds
DORI Coverage
With 5.9 to 147.5mm Lens:
Detect: at 6715.5' / at 2046.9 m
Observe: at 2665' / at 812.3 m
Recognize: at 1343.2' / at 409.4 m
Identify: at 671.6' / at 204.7 m

Video
Streaming Resolution 3840 x 2160 at 24 fps (16.384 Mb/s )
Supported Video Compression H.264, H.264+, H.265, H.265+, MJPEG
Multi-View Streaming Yes, 3 Streams
Automatic Gain Control Yes

Audio
1- or 2-Way Audio Two-Way
Audio Formats AAC, G.711, G.722.1, G.726, MP2L2, PCM
Built-In Speaker Yes

Pan & Tilt
Pan/Tilt
Programmed
Pan: 360° at 240°/s
Programmed
Tilt: 105° (-15 to 90°) at 200°/s

Networking
Security Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection, Watermark
Supported Protocols Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP

System Integration
Application Programming Interface (API) ONVIF Profiles G, S & T, ISAPI, SDK, ISUP
Analytics Motion Detection, Video Tampering Alarm, Exception, Alarm Input & Output, Line Crossing Detection, Intrusion Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection, Smart Tracking (Auto & Manual), Face Capture, Perimeter Protection
OS Compatibility *As of February, 2023: Check with manufacturer for the most up-to-date compatibility

Sensors & Alarms
Event Trigger Yes
Event Action Recording, Notification, Alarm
Data Streaming Yes
Alarm I/O 2 / 1

Hardware
Media/Memory Card Slot Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
External Storage Options NAS

Power
Power Source AC, PoE 802.3bt (60 W)
Power Consumption AC: 42 W (With Heater)

Environmental
Operating Temperature -22 to 149°F / -30 to 65°C
Operating Humidity 0 to 90% (Non-Condensing)
IP Rating IP66
IK Rating IK10

General
Inputs/Outputs
1 x RJ45
1 x Power
Illumination IR LEDs up to 660' / 201.2 m
Video Management Software iVMS-4200, HikCentral Pro, Hik-Connect
Material of Construction Aluminum
Dimensions ø: 8.7 x H: 14.3" / ø: 220.0 x H: 363.3 mm
Weight 11 lb / 5 kg

Packaging Info
Package Weight 18.205 lb
Box Dimensions (LxWxH) 23 x 12.6 x 11.4"
