Product Overview
- 5,000 lumens, WUXGA Resolution
- Installation flexibility — lens shift, interchangeable lenses, off-axis short throw option
- Ultimate control – full support for Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
- Powerful image-blending tools – 3-axis color matching system and 10x lamp-power steps
- Advanced features – wired remote, Full 3D support and DICOM simulation
Brilliant presentations with maximum installation flexibility

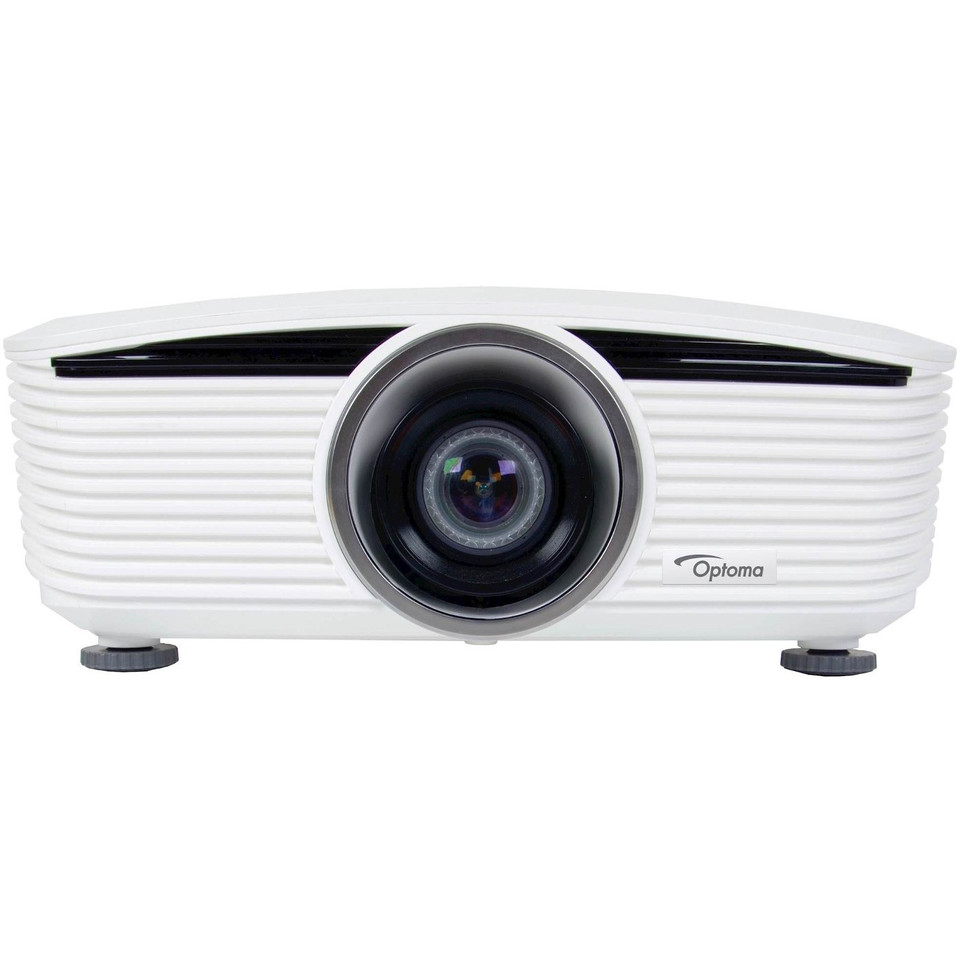

The Optoma ProScene EH505e was designed to deliver extraordinary performance and superior reliability to satisfy your large venue projector install needs. Its powerful bright 5,000 lumen output combined with a remarkable 2,000:1 contrast ratio deliver
amazingly bright, color-rich presentations with sharp, clear text and graphics.

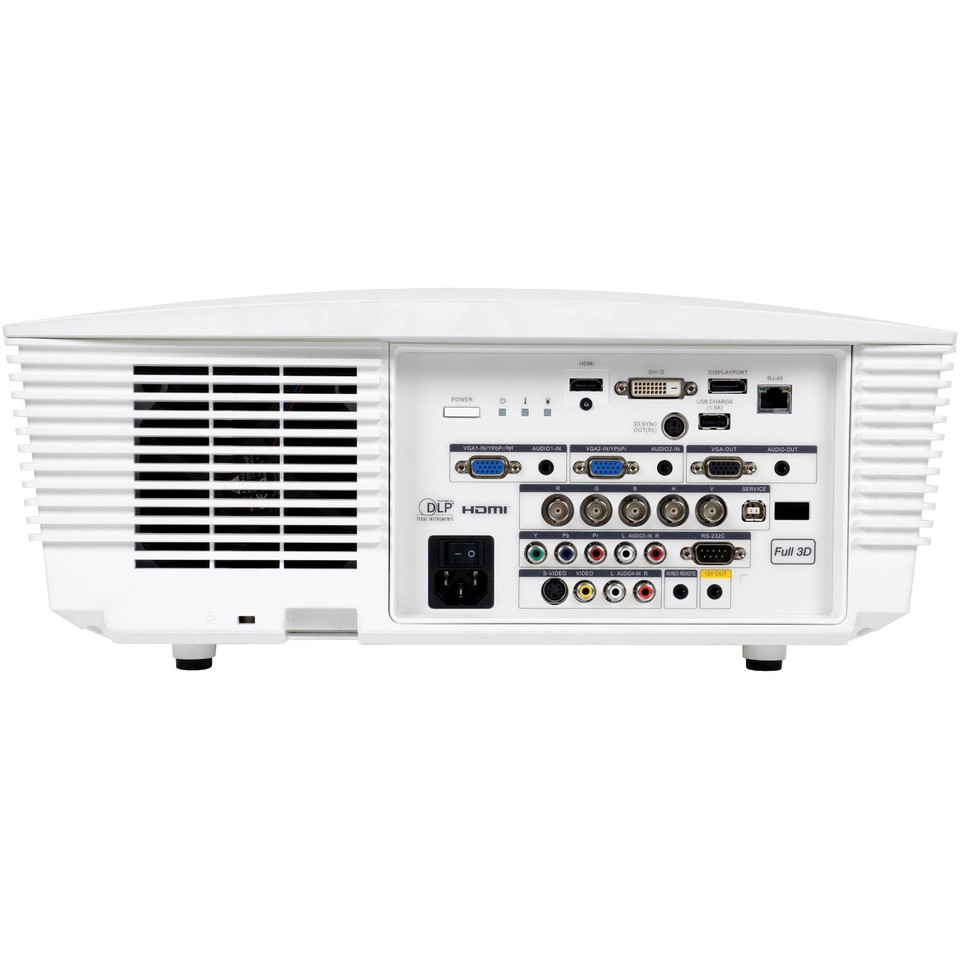

The Optoma EH505e features one of the most comprehensive input panels and most advanced feature set in it’s class to ensure the projector will satisfy your current and future needs: HDMI, display port and DVI for digital connectivity, two VGA
inputs and one VGA out for analog content, vertical and horizontal lens shift, discrete audio inputs, 12-volt trigger for maximum installation convenience.
| Contrast Ratio | 2000:1 | |||||||
|---|---|---|---|---|---|---|---|---|
| Wireless Networking | Optional | |||||||
| Economode | 4000 hours | |||||||
| Audible Noise | 34 dB | |||||||
| Lamp Life | 3000 | |||||||
| Native Resolution | 1920 x 1200 | |||||||
| Display Technology | DLP | |||||||
| Aspect Ratio | 16:10 (WUXGA) | |||||||
| Image Size Diagonal | Dependent upon lens | |||||||
| Inputs | 1x HDMI (1.4a 3D support), 1x DVI-D, 1x DisplayPort, 1x 5BNC, 2x VGA-In (YPbPr/RGB), 1x Component Video (3 x RCA), 1x S-Video, 1x Composite, 5 x Audio In (RCA/3.5mm), USB (mouse/service) | |||||||
| Lens Shift | Horizontal & Vertical | |||||||
| Data / Video Signals | NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p) | |||||||
| Digital Keystone | Vertical | |||||||
| Throw Distance | 0.77 ~ 5.30:1 "Lens dependent" | |||||||
| Unit Weight | 18.6 lbs (8.4 kg) w/o lens | |||||||
| Lens | 5 x lens Options "no lens supplied as standard" | |||||||
| Projector Methods | Front, Rear, Ceiling Mount, Table Top | |||||||
| Lumens (ANSI) | 5000 ANSI Lumens | |||||||
| Dimensions (WxDxH) | 16.9" x 7.1" x 13.4" (430 x 181 x 340 mm) | |||||||
