Product Overview
Optoma Technology GT5500 Overview
Project a big-screen image in close quarters with the Optoma GT5500 Full HD DLP Home Theater Projector. Its ultra-short 0.25:1 throw ratio will allow it to project an 80" image from only 13" from the screen or wall, or a 100" image from only 22.1" away. It has a native resolution of 1920 x 1080 to display Full HD images and a 25,000:1 dynamic contrast ratio to enhance the clarity of dark areas of images. The 3500 lumens of brightness will overcome ambient light in many in-home settings. When paired with compatible 3D glasses, this projector also supports many 3D formats from a variety of sources.

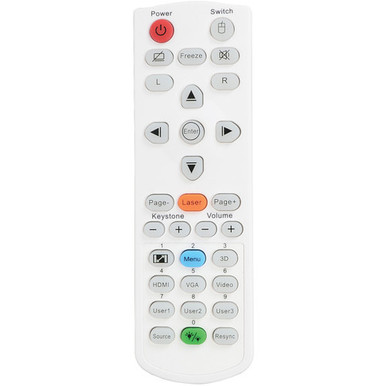

The GT5500 has a composite video, two HDMI, and two VGA inputs to connect a variety of equipment. A 16-Watt speaker is built in for audio playback, as is an 1/8" audio output to connect it to your speaker system. It also has an 1/8" microphone input suitable for both presentations or karaoke. The projector includes a VGA cable, a USB cable, and an IR remote control.
- 1080p, 3500-lumen ultra-short-throw projector with 25,000:1 dynamic contrast ratio
- 100" image from 22.1" from the wall or mounted screen
- Suitable for gaming and watching TV, Blu-ray movies, and sporting events
- Dual HDMI, VGA-in, dual Audio-in, and more
- 3D-Sync Port enables the use of active RF 3D glasses
Key Features
- Brightness of 3500 Lumens
- Full HD (1920 x 1080) Native Resolution
- Ultra-Short 0.25:1 Throw Ratio
- Composite Video, 2x HDMI, 2x VGA Inputs
- Supports Multiple 3D Formats
- Sync Port for RF-Based 3D Glasses
- Analog Audio Output
- Built-In 16-Watt Mono Speaker
- IR Remote Included
Optoma Technology GT5500 Specs
Image Display
| Display System | 0.65" DC3 DMD DLP |
| Native Chip Resolution | 1920 x 1080 |
| Supported Resolutions | Minimum: VGA - 640 x 480 Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness | 3500 Lumens |
| Uniformity | >85% |
| Offset | 118% |
| Aspect Ratio | 4:3 16:9 16:10 |
| Supported 3D Formats | Frame Packing Side by Side Top Bottom |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 15.4 to 91.1 kHz Vertical: 24 to 120 Hz |
Lens
| Lens | f/2.8 (f = 3.7 mm) |
| Throw Distance | 1.1 - 1.8' / 0.3 - 0.5 m |
| Throw Ratio | 0.25:1 |
| Projection Size | 80 - 100" / 203.2 - 254 cm |
Features
| Keystone Correction | Vertical: ± 40° |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16W |

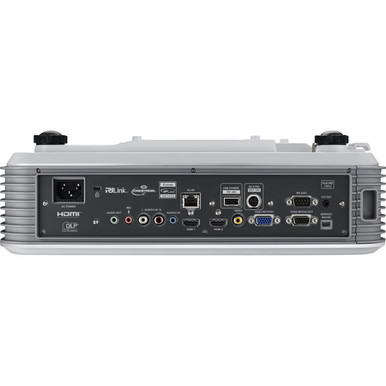

Input/Output Connectors
| Inputs/Outputs | 1 x 1/8" / 3.5 mm Mini Audio Output 1 x VGA (DE-15/DB-15) Video Output 1 x 12 V Trigger Control Input 1 x RS-232 (1/8" / 3.5 mm Mini) Control Input 2 x 1/8" / 3.5 mm Mini Audio Input 1 x Composite (RCA) Video Input 2 x HDMI (HDMI Type-A) Audio, Video Input 2 x VGA (DE-15/DB-15) Video Input 1 x Mini-USB Service 1 x Ethernet (RJ45) Control 1 x USB Type-A Data |
| Memory Card Slot | None |
General
| Expected Lamp Life | Full Brightness: 3000 Hours Medium Brightness: 5000 Hours Low Brightness: 6500 Hours |
| Fan Noise | Full Brightness: 36 dB Low Brightness: 29 dB |
| Security | Cable Lock Slot Keypad Lock Security Bar |
| Power Consumption | Standby Mode (Lamp Off): 0.5 W Full Brightness: 320 W Low Brightness: 260 W |
| Dimensions (W x H x D) | 15.1 x 4.7 x 12.2" / 383.5 x 119.3 x 309.8 mm |
Packaging Info
| Package Weight | 15.45 lb |
| Box Dimensions (LxWxH) | 19.3 x 15.6 x 8.6" |
