Product Overview
Optoma Technology W304M Overview
The Optoma W304M WXGA DLP 3D Ready Projector delivers 3000 ANSI lumens of brightness with a low noise level of only 30 dB in Eco-mode. It features a sharp 10,000:1 contrast ratio, support for a variety of 3D formats and WXGA 1280 x 800 native resolution. The projector is powered by a DLP chip system and the lamp features a long life up to 5000 hours. The W304M is equipped with BrilliantColor technology as well, which provides multi-color processing that produces accurate colors on the screen.
The W304M is compact enough for travel use, which makes it great for most business applications. Plus, it offers several input options including HDMI, VGA, composite video and more. It can project up to a 371.42" diagonal screen size and it offers a complete on-screen menu that supports adjustments in 22 languages. Other features include a less than 0.5W standby power consumption level, ceiling mount capabilities, rear screen projection and a remote control with IR mouse functionality.
- DLP 3D Ready projector with a WXGA 1280 x 800 native resolution and a brightness of 3000 ANSI lumens
- This 3D Ready projector supports all HDMI 1.4a mandatory 3D formats, as well as side-by-side 3D format and top and bottom 3D format

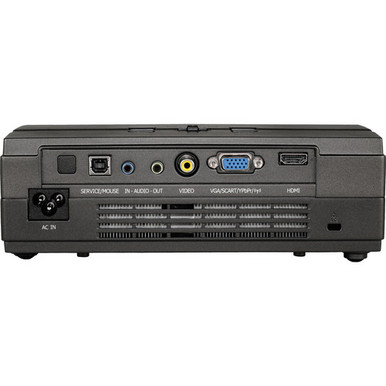

- Connectivity options include HDMI, VGA, USB-B, composite video and more
- The included IR remote control with mouse control simplifies presentations
- Weighing only 3.3 lb and measuring 8.7 x 2.8 x 7", the W304M WXGA data projector works for most business applications
- Texas Instrument's DLP with BrilliantColor technology provides multi-color processing to produce accurate colors
- The W304M's multi-color processing system features a six-segment color wheel coated with an advanced material that achieves superb color saturation and accuracy
- The high 10,000:1 contrast ratio ensures clean and crisp black and white for text and charts that are easy to read
- About.com announced Optoma as the best Video Projector Brand winner in their Home Theater Readers' Choice Awards for 2013
- The W304M uses less than 1W power consumption in standby mode (up to 75% savings compared to regular standby modes)
- The W304M limits energy use with automatic shut down and remote management and control
- Projector employs long-life materials and components including components that are lead-free on all printed circuit boards
- Uses no polystyrene foam in the packing materials and complies with RoHS standards to phase out the use of hazardous materials
- User controls include a complete on-screen menu that supports adjustments in 22 languages
- Projector works with PCs, Mac computers and VESA compatibility standards
Key Features
- WXGA 1280 x 800 Native Resolution
- Brightness of 3000 ANSI Lumens
- 10,000:1 Contrast Ratio
- Long Lamp Life up to 5000 Hours
- Supports a Variety of 3D Formats
- Project up to a 371.42" Screen Size
- Features DLP BrilliantColor Technology
- HDMI Connectivity
- Eco-Friendly Design
- NTSC, PAL & SECAM Compatibility
Optoma Technology W304M Specs
Image Display
| Display System | 1-Chip 0.65" DC3 DMD DLP |
| Native Chip Resolution | 1280 x 800 (WXGA) 1280 x 800 (WXGA) |
| Supported Resolutions | VGA480 - 640 x 480 VGA400 - 640 x 400 SVGA - 800 x 600 XGA - 1024 x 768 SXGA - 1280 x 1024 SXGA+ - 1400 x 1050 WXGA - 1280 x 800 WXGA+ - 1440 x 900 UXGA - 1600 x 1200 WUXGA - 1920 x 1200 |
| Maximum Brightness | 3000 Lumens |
| Uniformity | >80% |
| Offset | 112% ± 0% |
| Aspect Ratio | Native: 16:10 Supported: 16:9 Supported: 4:3 |
| DLP Link 3D | Yes |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Vertical: 24 to 85 Hz or 120 Hz Horizontal: 15.375 to 91.4 kHz |
Lens
| Lens | f/2.55 - 2.72 (f = 21.3 - 24.5 mm) |
| Optical Zoom | 1.15x |
| Throw Distance | 3.9 - 39.4' / 1.189 - 12.009 m |
| Throw Ratio | 1.5 to 1.76:1 |
| Projection Size | 30.95 - 371.42" / 78.61 - 943.41 cm |
Features
| Keystone Correction | Vertical: ± 30° |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 1W |
General
| Light Source | Lamp (1 x SHP) |
| Lamp Power | 220 W |
| Expected Lamp Life | Full Brightness: 4000 Hours Low Brightness: 5000 Hours |
| Fan Noise | Medium Brightness: 32 dB Low Brightness: 30 dB |
| Security | Cable Lock Slot Padlock |
| Power Consumption | Full Brightness: 280 W Low Brightness: 230 W Standby Mode (Lamp Off): < 0.5 W |
| Dimensions (W x H x D) | 8.7 x 2.8 x 7.0" / 221.0 x 71.1 x 177.8 mm |
Packaging Info
| Package Weight | 6.6 lb |
| Box Dimensions (LxWxH) | 12.9 x 10.1 x 7.7" |
