Product Overview

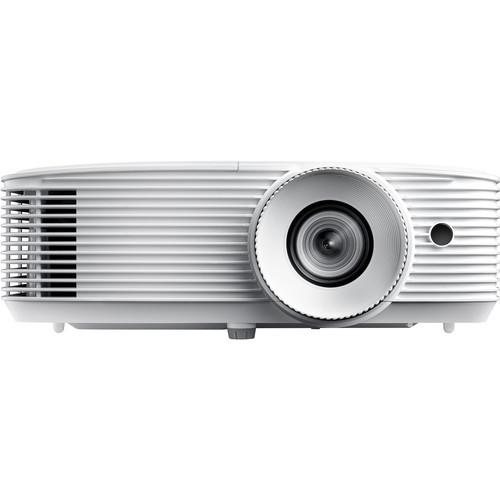

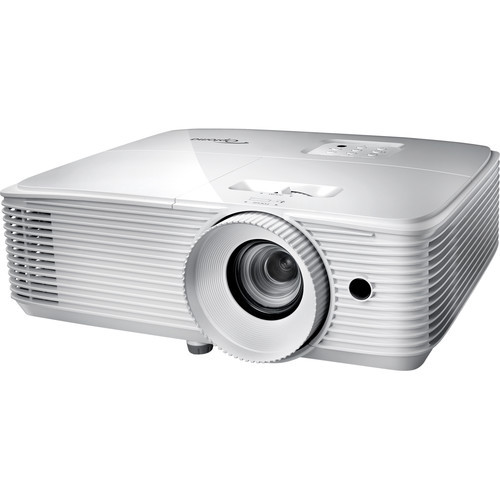

Optoma Technology WU336 Overview
Enjoy bright images and high dynamic contrast with the Optoma WU336 3400-Lumen WUXGA DLP Projector. Its native 1920 x 1200 resolution displays data, video, and images clearly at various viewing distances, while its 1.58 to 2.06:1 throw ratio allows you to place the projector far from the screen without losing focus. The WU336 features VGA, RCA composite video, and two HDMI inputs for connecting different types of devices. One HDMI input is MHL-compatible for wired mirroring of your compatible smart device. The projector includes a carrying case and an IR remote control for added convenience.
- WUXGA projection with 3400 lumens of brightness and a 20,000:1 dynamic contrast ratio
- I/O support includes HDMI, HDMI with MHL, VGA, composite, and 1/8" audio inputs, plus a 1/8" audio output, USB power output, and RS-232C control
- Integrated 10-Watt speaker mitigates the need for an external speaker setup
- Flexible installations with 1.3x optical zoom and Ethernet connectivity
- Minimal maintenance with up to a 15,000-hour lamp life
- Optional HDCast Pro enables wireless mirroring and streaming
Key Features
- Brightness of 3400 Lumens
- WUXGA (1920 x 1200) Native Resolution
- 1.58 to 2.06:1 Throw Ratio
- VGA, RCA Composite, 2x HDMI Inputs
- Analog Audio Input and Output
- Integrated 10-Watt Speaker
- Ethernet and RS-232 Controllable
- 6-Segment Color Wheel: RYGCWB
- DLP Link 3D-Compatible
- Carrying Case & IR Remote Included
Optoma Technology WU336 Specs
Display System | 0.48" DC3 DMD DLP |
Native Chip Resolution | 1920 x 1200 (WUXGA) |
Supported Resolutions | Maximum: WUXGA - 1920 x 1200 |
Maximum Brightness | 3400 Lumens |
Uniformity | 70% |
Offset | 116% ± 5% |
Aspect Ratio | Native: 16:10 Supported: 16:9 Supported: 4:3 |
Color Depth | 10-Bit (1.07 Billion Colors) |
Lens
Lens | f/2.43 - 2.78 (f = 16.91 - 21.6 mm) |
Optical Zoom | Manual: 1.3x |
Throw Distance | 3.9 - 33.46' / 1.189 - 10.199 m |
Throw Ratio | 1.58 to 2.06:1 |
Projection Size | 27 - 299" / 68.58 - 759.46 cm |
Keystone Correction | Manual-Vertical: ± 40° |
Ceiling Mountable | Yes |
Rear Screen Projection | Yes |
Built-In Speaker | Yes |
Inputs/Outputs | 2 x HDMI with MHL Support (HDMI Type-A) Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x Composite (RCA) Video Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x USB 2.0 (USB Type-B) Power Output 1 x HDBaseT (RJ45) Service Input 1 x RS-232 (DE-9/DB-9) Control Input |
Wireless LAN / Wi-Fi | No, Optional Adapter Available |
Light Source | Lamp |
Lamp Power | 240 W |
Expected Lamp Life | Full Brightness: 3500 Hours Medium Brightness: 10,000 Hours Low Brightness: 15,000 Hours |
Security | Cable Lock Slot Password Protection Security Bar |
Power Consumption | Full Brightness: 330 W Low Brightness: 230 W |
Dimensions (W x H x D) | 12.4 x 4.3 x 9.2" / 31.5 x 10.9 x 23.4 cm |
Weight | 6.7 lb / 3.0 kg |
Packaging Info
Package Weight | 9.8 lb |
Box Dimensions (LxWxH) | 15.6 x 13.4 x 6.4" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
