Product Overview

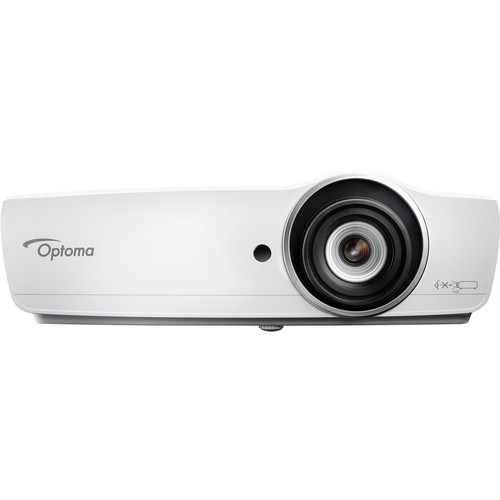

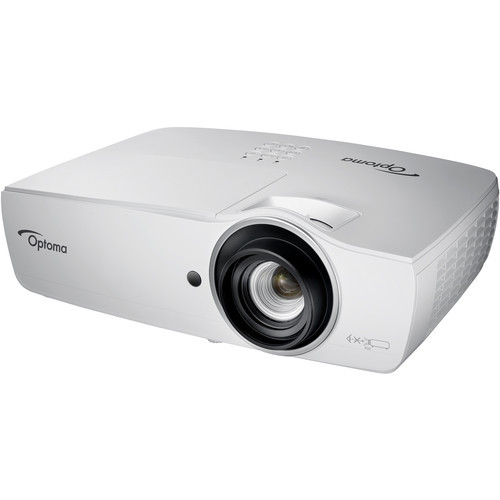

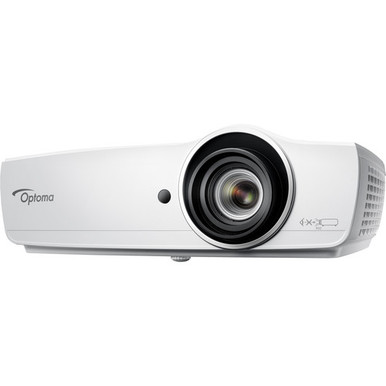

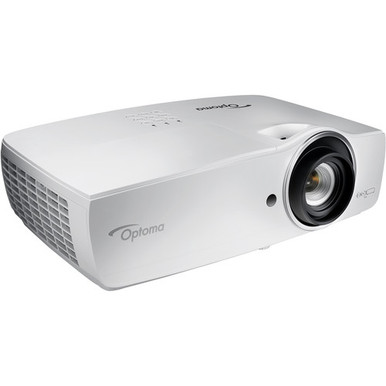

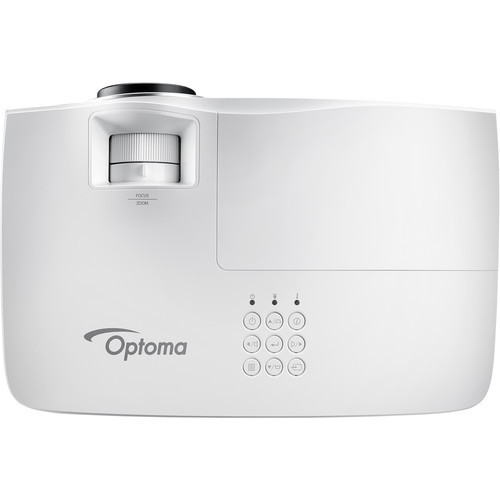

Optoma Technology WU465 Overview
Enjoy bright images and high dynamic contrast in your classroom with the Optoma WU465 4800-Lumen WUXGA DLP Projector. Its native 1920 x 1200 resolution displays data and images clearly at various viewing distances, while its 1.39 to 2.09:1 throw ratio allows you to place the projector relatively far from the screen without losing focus.
The WU465 features VGA and two HDMI inputs, one of which is MHL-compatible for wired streaming from your compatible smart device. Wireless streaming and device mirroring over Wi-Fi is possible with the addition of an optional adapter. An IR remote is included as an added convenience.
Key Features
- Brightness of 4800 Lumens
- WUXGA (1920 x 1200) Native Resolution
- 1.39 to 2.09:1 Throw Ratio
- VGA, 2x HDMI Inputs
- VGA Output for Loop-Through
- Analog Audio Input and Output
- Integrated 10-Watt Speaker
- Ethernet and RS-232 Controllable
- IR Remote Included
DLP Technology
Digital Light Processing (DLP) technology is designed to provide digital projection with higher contrast, faster response time, good pixel structure, and virtually no color degradation.
Engineered for Enhanced Color
The WU465 can produce the Rec.709 color gamut, which is the international HDTV standard to guarantee accurate reproduction of cinematic color as the director intended.
Dynamic Black Technology
Dynamic Black technology is designed to add depth to the image by adjusting the lamp output to create a high contrast ratio, allowing bright scenes to appear crisp and clear while dark scenes remain detailed with deep blacks and enhanced light and shade detail.
Four-Corner Adjustment
Four-corner geometric correction enables quick and easy image adjustments from any of the corner points of the image, simplifying installation with uneven or angled projection surfaces.
Wireless Display and Document Casting with an Optional Wi-Fi Adapter
Mirror the screen of your Android, Windows, and Mac devices wirelessly. Cast images and documents from Android, iOS, Windows, and Mac devices, or use USB Display to mirror Android and iOS devices. HDCastPro and the WUSB Wi-Fi adapter are required and are available separately.
Signal Power On
The projector can power on when it receives a signal through the HDMI input, helping to ensure that the projector is turned on at the same time as the source device.
MHL Connectivity
Turn your projector into a smart display by connecting your smartphone or tablet with a single cable using MHL. Now you can view presentations and documents, stream videos, and share photos on the big screen.
Computer-Free USB Image and Document Viewer
The integrated image and document viewer provides direct viewing of office documents, such as PDFs, images, and presentations from any compatible USB storage device.
Integrated Speaker
Complete the experience with the convenience of a built-in speaker. The speaker allows you to complete your setup without external speakers.
Crestron RoomView with Network Control
Crestron software provides a custom configurable interface to monitor, manage, and control every connected device in every room remotely from virtually any computer. Via a master computer, you can manage up to 250 projectors at the same time, control and alter settings using a web browser page (including OSD menu control), and set up email alerts for warning messages, making the WU465 well suited for use in large installations in both educational and business environments.
In the Box
- Optoma Technology WU465 4800-Lumen WUXGA DLP Projector
- Remote Control with Batteries
- AC Power Cord
- Limited 2-Year Warranty on Projector
- Limited 90-Day Warranty on Lamp
Optoma Technology WU465 Specs
Image Display
| Display System | 0.65" DC3 DMD DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness | 4800 Lumens |
| Uniformity | 75% |
| Offset | 114.9% ± 5% |
| Aspect Ratio | Native: 16:10 Supported: 16:9 Supported: 4:3 |
| Dynamic Contrast Ratio | 20,000:1 |
| DLP Link 3D | Yes |
| Supported 3D Formats | Side by Side (up to 1080i) Frame Packing (up to 1080p) Top Bottom (up to 1080p) |
| Color Wheel | 5-Segment (RYGBW) |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 25 to 85 Hz or 120 Hz Vertical: 15 to 91 kHz |
Lens
| Focus | Manual |
| Lens | f/2.42 - 2.97 (f = 20.7 - 31.05 mm) |
| Optical Zoom | Manual: 1.5x |
| Throw Distance | 3.93 - 50.7' / 1.198 - 15.453 m |
| Throw Ratio | 1.39 to 2.09:1 |
| Projection Size | 26.6 - 334" / 67.56 - 848.36 cm |
Features
| Keystone Correction | Vertical: ± 30° Horizontal: ± 25° |
| Digital Zoom | 2x |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes |
| Speaker Power | 10W |

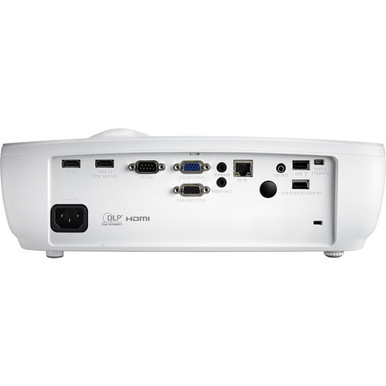

Input/Output Connectors
| Inputs/Outputs | 1 x HDMI with MHL Support (HDMI Type-A) Audio, Power, Video Input 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x VGA (DE-15/DB-15) Video Output 1 x 1/8" / 3.5 mm Mini Audio Output 1 x Ethernet (RJ45) LAN 1 x USB 2.0 (USB Type-A) LAN Input 1 x USB 2.0 (USB Type-A) Audio, Power, Video Input/Output 1 x USB 2.0 (Mini-USB) Data, Service Input 1 x 12 V Trigger Control Output 1 x RS-232 (DE-9/DB-9) Control |
Hardware
| Wireless LAN / Wi-Fi | Yes, with Included Adapter |
General
| Light Source | Lamp |
| Lamp Power | 285 W |
| Expected Lamp Life | Full Brightness: 2500 Hours Medium Brightness: 3500 Hours Low Brightness: 4500 Hours |
| Fan Noise | Full Brightness: 37 dB Medium Brightness: 31 dB |
| Security | Cable Lock Slot Password Protection Security Bar |
| Supported Document File Types | DOC, PDF, PPT, XLS |
| Supported Photo File Types | BMP, JPEG |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 390 W Low Brightness: 320 W |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Operating Humidity | 0 to 85% |
| Dimensions (W x H x D) | 12.2 x 3.9 x 8.7" / 31.0 x 9.9 x 22.1 cm |
| Weight | 6.75 lb / 3.06 kg |
Packaging Info
| Package Weight | 9.79 lb |
| Box Dimensions (LxWxH) | 17.2 x 12.5 x 8.9" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
