Product Overview
Optoma Technology X365 Overview
Enjoy bright images and high dynamic contrast with the Optoma X365 3600-Lumen XGA DLP Projector. Its native 1024 x 768 resolution displays data clearly at various viewing distances, while its 1.95 to 2.15:1 throw ratio allows you to place the projector far from the screen without losing focus. The X365 features VGA, RCA composite video, and two HDMI inputs for connecting different types of devices; one HDMI input is MHL-compatible for wired connection of your compatible mobile device. The projector includes a carrying case and an IR remote control with a built-in laser pointer for added convenience.
- XGA (1024 x 768) projection with 3600 lumens of brightness and a 22,000:1 dynamic contrast ratio
- HDMI, VGA, composite video, and 1/8" audio inputs with an 1/8" audio output
- Computer-free presentations and images – network and USB display for wired screen mirroring from your Windows or Mac computer or Android or iOS device
- Integrated 15W speaker enhances presentations and multimedia with sound
- USB Display Mode enables screen mirroring when connecting iOS and Android devices
- Designed for minimal maintenance with up to a 10,000-hour lamp life
- Optional HDCast Pro enables wireless mirroring and streaming
Maximum of ±0.5% keystone distortion
Key Features
- Brightness of 3600 Lumens
- XGA (1024 x 768) Native Resolution
- 1.95 to 2.15:1 Throw Ratio
- VGA, RCA Composite, 2x HDMI Inputs
- One HDMI Input is MHL-Compatible
- VGA Output for Loop-Through
- Analog Audio Input and Output
- Integrated 15-Watt Speaker

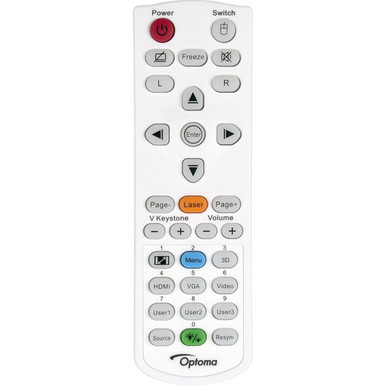

- Includes Carrying Case & IR Remote
Optoma Technology X365 Specs
Image Display
| Display System | 0.55" DC3 DMD DLP |
| Native Chip Resolution | 1024 x 768 (XGA) |
| Supported Resolutions | Maximum: UXGA - 1600 x 1200 |
| Maximum Brightness | 3600 Lumens |
| Uniformity | 80% |
| Offset | 115% ± 5% |
| Aspect Ratio | Native: 4:3 Supported: 16:9 |
| Dynamic Contrast Ratio | 22,000:1 |
| DLP Link 3D | Yes |
| Supported 3D Formats | Side by Side (up to 1080i) Frame Packing (up to 720p) Top Bottom (up to 720p) |
| Color Wheel | 6-Segment (R/G/B/W/Y/C) |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Scan | Horizontal: 25 to 85 Hz or 120 Hz Vertical: 15 to 91 kHz |
Lens
| Focus | Manual |
| Lens | f/2.41 - 2.53 (f = 21.85 - 24.01 mm) |
| Optical Zoom | 1.1x |
| Throw Distance | 3.93 - 43.35' / 1.198 - 13.213 m |
| Throw Ratio | 1.95 to 2.15:1 |
| Projection Size | 27.34 - 304.5" / 69.44 - 773.43 cm |
Features
| Keystone Correction | Vertical: ± 20° Auto-Horizontal: ± 20° |
| Digital Zoom | 2x |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes |
| Speaker Power | 15W |

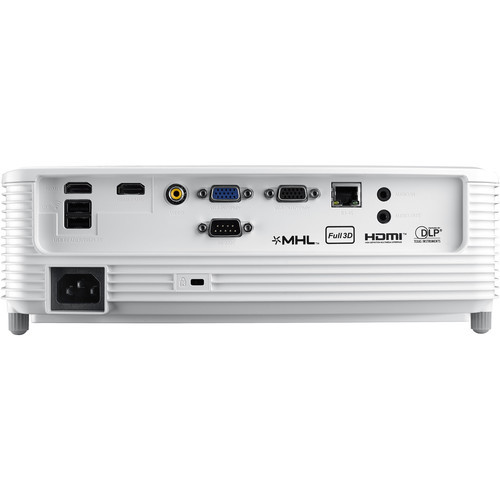

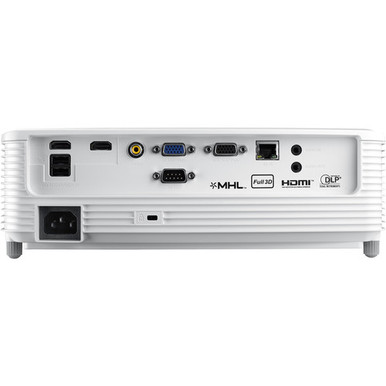

Input/Output Connectors
| Inputs/Outputs | 1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x Composite (2RCA) Video Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x Ethernet (RJ45) LAN Input/Output 1 x USB 2.0 (USB Type-A) LAN Input 1 x USB 2.0 (USB Type-A) Audio, Data, Power, Video Input/Output 1 x USB 2.0 (USB Type-A) Service Input 1 x 12 V Trigger Control Input |
Hardware
| Wireless LAN / Wi-Fi | No, Optional Adapter Available |
General
| Light Source | Lamp |
| Lamp Power | 195 W |
| Expected Lamp Life | Full Brightness: 5000 Hours Medium Brightness: 6000 Hours Medium Brightness: 10,000 Hours |
| Fan Noise | Full Brightness: 31 dB Low Brightness: 29 dB |
| Security | Cable Lock Slot Password Protection Security Bar |
| Supported Document File Types | DOC, DOCX, PDF, PPT, PPTX, XLS, XLSX |
| Supported Photo File Types | BMP, GIF, JPEG |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 294 W Low Brightness: 228 W |
| Dimensions (W x H x D) | 11.7 x 3.8 x 9.1" / 29.7 x 9.7 x 23.1 cm |
| Weight | 5.51 lb / 2.50 kg |
Packaging Info
| Package Weight | 7.7 lb |
| Box Dimensions (LxWxH) | 15.6 x 11 x 6.1" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty.
