Product Overview
Panasonic DLE0 Overview

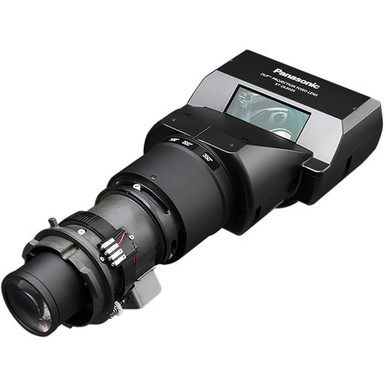

The 5.3mm Fixed-Focus Ultra-Short Throw Lens from Panasonic is designed to be used with select projectors. Included with the lens is a protective lens cover and a lens shift gauge.
Compatibility
This lens is compatible with the following Panasonic projectors:
PT-RZ120
PT-RZ970
PT-RW930
PT-RX110
PT-RZ870
PT-RZ770
PT-RW730
PT-RZ660
PT-RW620
PT-DZ870
PT-DW830
PT-DX100
PT-DZ780
PT-DW750
PT-DX820
PT-RZ120
PT-RZ970
PT-RW930
PT-RX110
PT-RZ870
PT-RZ770
PT-RW730
PT-RZ660
PT-RW620
PT-DZ870
PT-DW830
PT-DX100
PT-DZ780
PT-DW750
PT-DX820
Key Features
- For Select Projectors
- 5.3mm Focal Distance
- f/2.0 Aperture
- Lens Cover Included
- Lens Shift Gauge Included
Panasonic DLE0 Specs
General
| Compatibility | Panasonic PT-RZ120 Panasonic PT-RZ970 Panasonic PT-RW930 Panasonic PT-RX110 Panasonic PT-RZ870 Panasonic PT-RZ770 Panasonic PT-RW730 Panasonic PT-RZ660 Panasonic PT-RW620 Panasonic PT-DZ870 Panasonic PT-DW830 Panasonic PT-DX100 Panasonic PT-DZ780 Panasonic PT-DW750 Panasonic PT-DX820 |
| Lens Type | Fixed, Ultra Short-Throw |
| Motorized | No |
Performance
| Throw Ratio | PT-RZ120/RZ970/RZ870/RZ770/RZ660/DZ870/DZ780: 0.380:1 (16:10) PT-RW930/RW730/RW620/DW830/DW750: 0.399:1 (16:10) PT-RX110/DX110/DX820: 0.394:1 (4:3) |
| Aperture | f/2.0 |
| Focal Length | f = 5.3mm |
Physical
| Exterior Dimensions | H: 4.0 x W: 5.2 x L: 12.2" / H: 102.0 x W: 132.0 x L: 311.0 mm |
| Weight | 2.87 lb / 1.3 kg |
Packaging Info
| Package Weight | 3.8 lb |
| Box Dimensions (LxWxH) | 17 x 9.12 x 8" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
