Product Overview

Quad Pixel Drive 2-axis pixel-quadrupling technology creates detailed 4K images retaining natural sharpness and clarity, while Rich Color Enhancer produces vivid, accurate colors. High-speed 240 Hz processing creates smooth, grid-less images while supporting up to 240 Hz/1080p frame rates with a minimal latency of 8 ms or less.

Exceptionally smooth and detailed 4K image quality
Flexible, simple to use, and easy to integrate
Highly reliable low maintenance projection

Brightness 5,200 ANSI Lumens

Resolution 1920x1080 4K w/pixel shifting

Aspect Ratio 16:9 (HD)

Contrast 20,000:1 (full on/off)

Display Type 0.65" DLP x 1

Video Modes 720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/30, 1080p/50, 2160p/60, 576p, 3840p/24, 480p

Data Modes MAX 3840x2160

Lamp Type Laser Phosphor

Lamp Life 20,000 hours / 24,000 hours (Eco)

Included Lens 2x manual zoom , manual focus

Optional Lenses No

Lens Shift Horizontal +34% / -27% & Vertical +71% / -49%

Throw Distance 8.5' - 31.6'

Image Size 40.08" - 300.05"

Throw Ratio 1.45:1 - 2.92:1 (D:W)

Digital Keystone Horizontal & Vertical

Projector Size 6.61" x 19.61" x 19.37" (HxWxD)

Weight 36.4 lbs

Audible Noise 35 dB / 28 dB (Eco)

Internal Speakers No

Power 100V - 240V

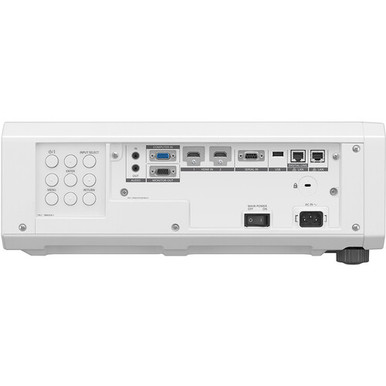

Connection Panel
Audio In: Mini Jack x 2 Audio In: RCA Audio Out: Mini Jack HDBaseT: RJ-45 HDMI 2.3 (HDCP) x 2 Network: RJ-45 RS232: DB-9pin USB VGA In: Dsub-15pin VGA Out: Dsub-15pin
