Product Overview
Panasonic CQ1U Overview

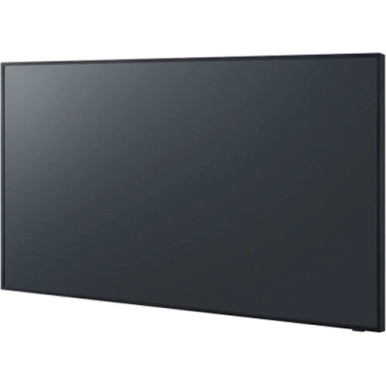

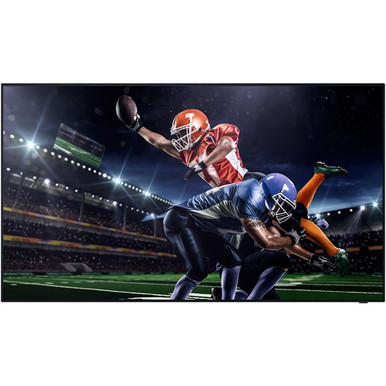

Display high-resolution content in nearly any installation setting with the Panasonic CQ1 86" Class 4K UHD Commercial, Education & Corporate IPS LED TV. It features a 4K UHD native resolution with the capability of running 16/7, allowing you to display highly detailed and vibrant media with compatible content both during and after business hours.

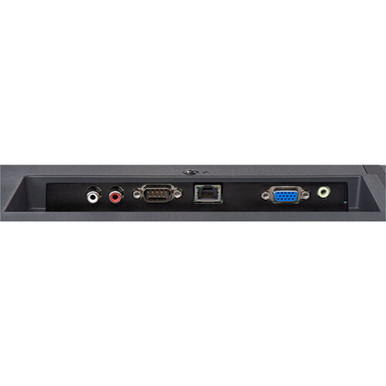

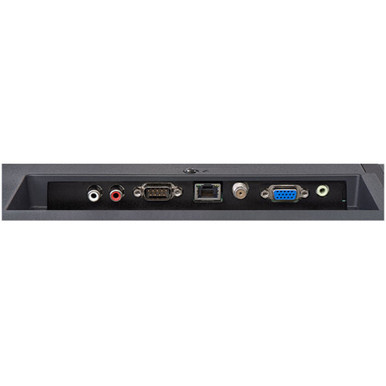

The TV has a VGA and two HDMI inputs to support multiple source components. The USB port can play multimedia stored on thumb drives to eliminate the cable coming from a media player. The CQ1 can be controlled via RS-232C, Ethernet, or the included remote control.
Key Features
- 4K UHD (3840 x 2160) Native Resolution

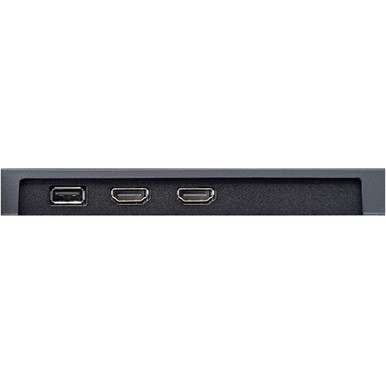

- VGA, 2x HDMI Inputs
- 16/7 Capable
- RS-232 & Ethernet Controllable
- Dual Built-In 10W Speakers
Elaborate 4K UHD Picture Quality Down to the Tiniest Details
With approximately 8,290,000 pixels, about four times the pixels of a Full HD display, images from 4K UHD sources are highly detailed. This dynamic, large-screen display achieves true-to-life, finely nuanced images. The 4K display is suitable for use in digital signage and meeting rooms.
Select the Best Display Mode for Your Content & Environment
The CQ1 series comes with an extensive display menu to let you select the most suitable mode for the content to be displayed and the viewing environment. Graphic modes include Dynamic, Standard, Sports, Cinema, Graphic, and Custom.
Dynamic Contrast
This feature automatically adjusts the contrast by determining the changes in the use of colors for images of the input signal that constantly change, such as motion pictures.
Dynamic Backlight Control
The backlight level can adapt to the input signal, adjusting its brightness to enhance contrast and reduce total power consumption.
Built-In TV Tuner
An ATSC tuner is built-in, providing highly precise 4K UHD images. A Sports mode is also newly equipped, ideal for live sports relays with dynamic images. The narrow bezels also allow better concentration on the screen. In addition to usage in sports bars and restaurants, the CQ1 series is optimal for refreshing office entertainment and information gathering during emergencies.
USB Media File Playback Function
Video and still images saved onto USB media in advance can simply be inserted into the CQ1 series TV for automatic playback.
Built-In Speakers for the Playback of Content with Sound
The TV has built-in speakers so that it can play content with sound without the connection of external speakers. This allows maximum use of a limited space for the installation of a large-screen display.
High Reliability Enables Continuous 16/7 Operation
In addition to being impact resistant, the CQ1 series is capable of 16/7 operation. It offers reliable use in educational institutions and offices.
Choose the Installation to Match Your Application
Installation is possible at a forward tilt of up to 20° to maintain legibility when mounted in high places.
HDMI CEC Support
HDMI CEC-compatible devices can be connected to the display by an HDMI cable, enabling the basic operations of the devices to be controlled by the TV's remote control.
LAN Control Support
The CQ1 series can be controlled by LAN or RS-232C. You can integrate the TV into your existing control system and control several devices simultaneously.
Additional Features
- Plastic cabinet
- Memory Viewer
- Auto setting
- No signal power off
- Button lock
- RC control lock
- Motion Smoother
Warranty Information
1 Year Parts & Labor Manufacture Warranty
