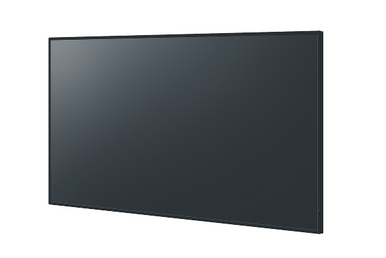

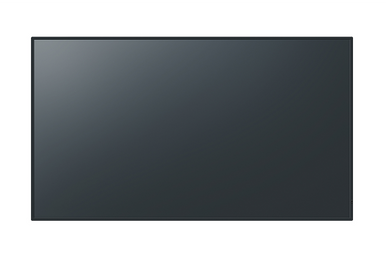

Panasonic TH-43CQ2U 43" Class 4K UHD Commercial LED TV

Screen size (diagonal) (inch)

42.5-inch

Screen size (diagonal) (mm)

1079 mm

Aspect Ratio

16:9

Panel Type

ADS / D-LED

Effective display area (W x H) (mm)

941 x 529 mm

Effective display area (W x H) (inch)

37.0" x 20.8"

Resolution

3840 x 2160

Brightness (typ.)

400 cd/m2

Contrast Ratio

4000 : 1

Response Time

8 ms (G to G)

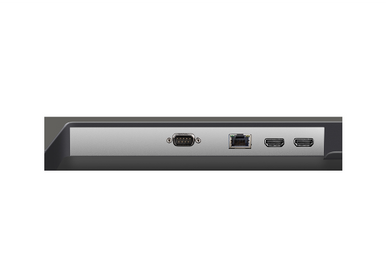

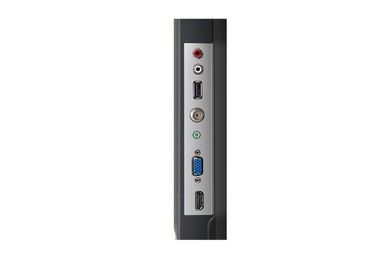

Terminals | HDMI IN

HDMI Type A Connector x 2

Terminals | PC IN/AUDIO IN (L/R)

Mini D-Sub 15-pin (DDC2B) x 1

Terminals | USB

USB Type A Connector x 1, DC 5 V/0.5 A (USB 2.0 is supported)

Terminals | Serial

D-sub 9pin x 1, RS-232C Compatible

Terminals | LAN

RJ45 x 1
RJ45 10BASE-T/100BASE-TX

Built-in Speaker

20 W [10 W + 10 W]

Power Requirements

AC 110 - 127 V 50 Hz / 60 Hz

Power consumption

106 W

Power Off Condition

Approx. 0.5 W

Standby Condition

Approx. 0.5 W

Dimensions (W x H x D) (mm)

969 x 566 x 77 mm

Dimensions (W x H x D) (inch)

38.2" x 22.3" x 3.1"

Bezel width (mm)

T/R/L11.9 mmB 14.9 mm

Bezel width (inch)

T/R/L 0.47"  B 0.59"

Weight (kg)

Approx. 9 kg

Weight (lbs.)

Approx. 19.9 lbs

Wall-hanging pitch (mm)

200 x 200 mmVESA Compliant

Wall-hanging pitch (inch)

VESA Compliant 7.9" x 7.9" (200 x 200 mm) (Installed by: M6 screws / Screw hole depth 0.6" (14 mm))

Operating environment

Temperature : 32°F to 104°F (0 to 40)*1 : 32°F to 95°F (0 to 35)*2
Humidity : 20% to 80% (No condensation)

Operating Time

16 h/day

Viewing angle [(T/B)/(L/R)]

178° / 178° (CR20)

Terminals | AUDIO OUT

RCA Terminal (L / R) x 1
Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load)
0.5 V [rms]

AUDIO IN

Stereo Mini Jack (M3) x 1
(Shared with PC IN)
0.5 V [rms]
