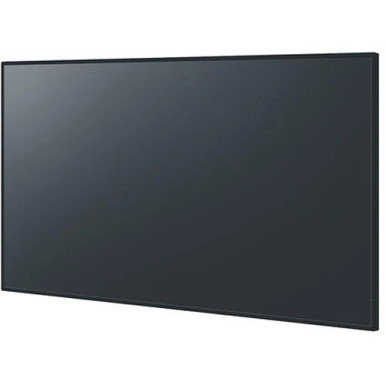

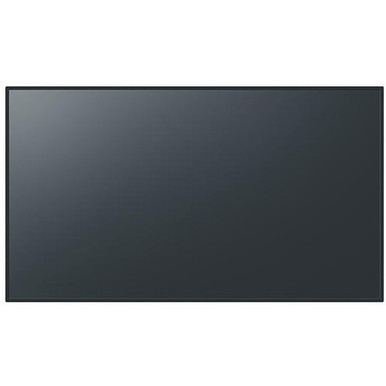

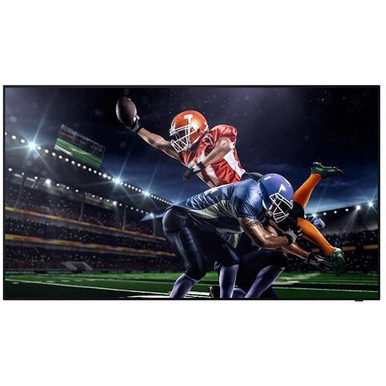

Product Overview
Key features
- 55”, 400 cd/m²
- 4K UHD LCD display delivers highly detailed content with contrast adjustments that enhance image quality
- Expansion of applications with built-in TV tuner
- Easy installation with built-in speakers and basic terminals
- ADS Panel for superb viewing experience from any angle
Specifications:
| Screen size (diagonal) (inch) | 54.6-inch |
| Screen size (diagonal) (mm) | 1387 mm |
| Aspect Ratio | 16:9 |
| Panel Type | ADS / D-LED |
| Effective display area (W x H) (mm) | 1209 x 680 |
| Effective display area (W x H) (inch) | 47.6" x 26.7" |
| Resolution | 3840 x 2160 |
| Brightness (typ.) | 400 cd/m2 |
| Contrast Ratio | 4000 : 1 |
| Response Time | 8 ms (G to G) |

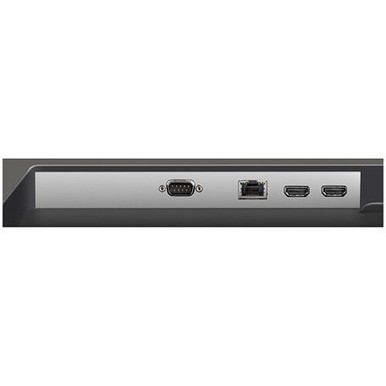

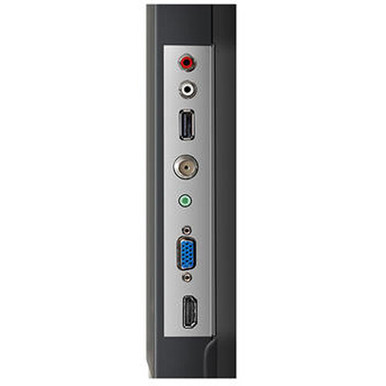

| Terminals | HDMI IN | HDMI Type A Connector x 2 |
| Terminals | PC IN/AUDIO IN (L/R) | Mini D-Sub 15-pin (DDC2B) x 1 |
| Terminals | USB | USB Type A Connector x 1, DC 5 V/0.5 A (USB 2.0 is supported) |
| Terminals | Serial | D-sub 9pin x 1, RS-232C Compatible |
| Terminals | LAN | RJ45 x 1 |
| Built-in Speaker | 20 W [10 W + 10 W] |
| Power Requirements | AC 110 - 127 V 50 Hz / 60 Hz |
| Power consumption | 128 W |
| Power Off Condition | Approx. 0.5 W |
| Standby Condition | Approx. 0.5 W |
| Dimensions (W x H x D) (mm) | 1240 x 718 x 80 mm |
| Dimensions (W x H x D) (inch) | 48.9" x 28.3" x 3.2" |
| Bezel width (mm) | T/R/L11.9 mm B14.7 mm |
| Bezel width (inch) | T/R/L 0.47" B 0.59" |
| Weight (kg) | Approx.15 kg |
| Weight (lbs.) | Approx. 33.1 lbs |
| Wall-hanging pitch (mm) | VESA Compliant (400 x 200 mm) (Installed by: M6 screws / Screw hole depth(17 mm)) |
| Wall-hanging pitch (inch) | VESA Compliant 15.7" x 7.9"(Installed by: M6 screws / Screw hole depth 0.7" |
| Operating environment | Temperature : 32°F to 104°F (0 to 40)*1 : 32°F to 95°F (0 to 35)*2 |
| Operating Time | 16 h/day |
| Viewing angle [(T/B)/(L/R)] | 178° / 178° (CR20) |
| Terminals | AUDIO OUT | RCA Terminal (L / R) x 1 |
| Terminals | IR Out | Pin Jack x 1 |
