Product Overview
Key features
- 86”, 400 cd/m²
- 4K UHD LCD display delivers highly detailed content with contrast adjustments that enhance image quality
- ADS Panel for superb viewing experience from any angle
- Expansion of applications with built-in TV tuner
- Easy installation with built-in speakers and basic terminals
Specifications:
| Screen size (diagonal) (inch) | 86-inch |
| Screen size (diagonal) (mm) | 2177.4 mm |
| Aspect Ratio | 16:9 |
| Panel Type | ADS / Edge LED |
| Effective display area (W x H) (mm) | 1897 x 1068 mm |
| Effective display area (W x H) (inch) | 74.70 x 42.00 inch |
| Resolution | 3840 x 2160 |
| Brightness (typ.) | 400 cd/m2 |
| Contrast Ratio | 1200 : 1 |
| Response Time | 8 ms (G to G) |

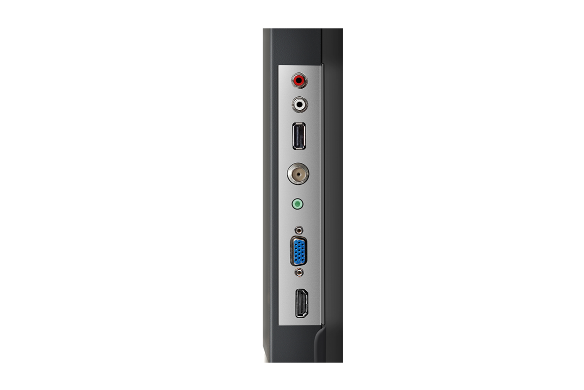

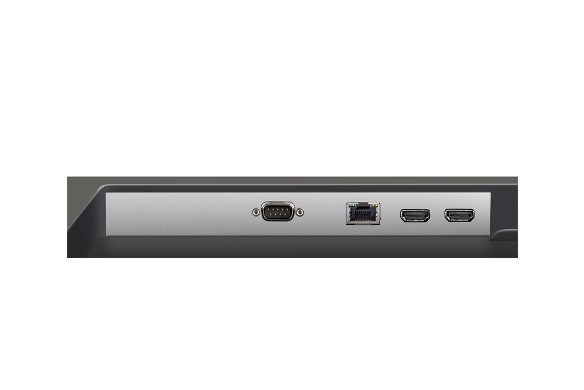

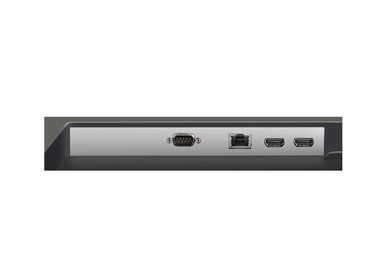

| Terminals | HDMI IN | HDMI TYPE-A Connector x 2 |
| Terminals | PC IN/AUDIO IN (L/R) | Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1 |
| Terminals | USB | USB Type A Connector x 1, DC 5 V/0.5 A (USB 2.0 is supported) |
| Terminals | Serial | D-sub 9-pin x 1 (Input), RS-232C Compatible |
| Terminals | LAN | RJ45 x 1, 10BASE-T/100BASE-TX |
| Built-in Speaker | 20 W [10 W + 10 W] |
| Power Requirements | AC 110 - 127 V 50 Hz / 60 Hz |
| Power consumption | 340 W |
| Power Off Condition | Approx. 0.5 W |
| Standby Condition | Approx. 0.5 W |
| Dimensions (W x H x D) (mm) | 1929 x 1103 x 80 mm |
| Dimensions (W x H x D) (inch) | 76.0" x 43.5" x 3.2" |
| Bezel width (mm) | (T/B/L/R 15.3 mm) |
| Bezel width (inch) | T/B/L/R 0.61" |
| Weight (kg) | Approx.50 kg |
| Weight (lbs.) | Approx. 110.3 lbs |
| Wall-hanging pitch (mm) | VESA Compliant 600 x 400 m) |
| Wall-hanging pitch (inch) | VESA Compliant 23.6" x 15.7" |
| Operating environment | Temperature : 32°F to 104°F (0 to 40)*1 : 32°F to 95°F (0 to 35)*2 |
| Operating Time | 16 h/day |
| Viewing angle [(T/B)/(L/R)] | 178° / 178° (CR>10) |
| Terminals | AUDIO OUT | RCA Terminal (L / R) x 1 |
