Product Overview
Panasonic EQ1W Overview

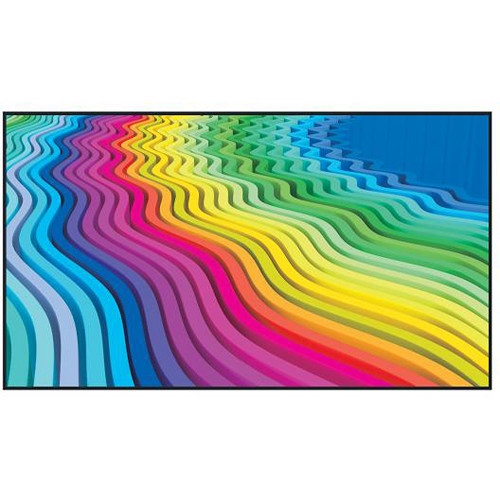

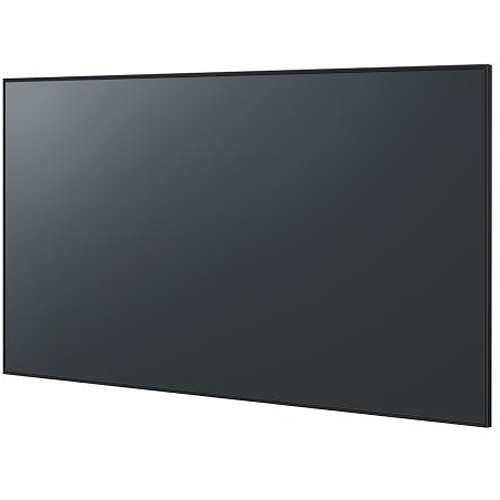

The EQ1W Series 75" 4K UHD Digital Signage IPS LED Display supports video at resolutions up to 3840 x 2160. It features a brightness of 350 cd/m2, a contrast ratio of 1200:1, an 8 ms response time, and supports 178° horizontal and vertical viewing angles. There are HDMI, DVI-D, and audio ports for connectivity as well as RS-232C and IR interfaces for control. You can synchronize playback on multiple displays via the RJ45 Ethernet and USB 3.0 ports. This display has two 10W built-in speakers and is 600 x 400mm VESA mounting compatible. A remote control and two AAA batteries are included.
- USB media player port
- Failover and Failback safeguards for mission critical situations
- Multi-monitoring and control software
- Supports CEC over HDMI
- Easy set up and safe operation
- Landscape or portrait operation
Key Features
-
- 3840 x 2160 Resolution
- 350 cd/m² Brightness
- 1200:1 Contrast Ratio
- 178° Viewing Angles
- 8 ms Response Time
- HDMI, DVI-D & Audio Ports
- RS-232C & IR Control
- RJ45 Ethernet Port
- Two 10W Built-In Speakers
- 600 x 400mm VESA Mounting
Panasonic EQ1W Specs
Display
| Screen Size (Diagonal) | 75" |
| Resolution | 3840 x 2160 |
| Panel Type | IPS-Type LCD |
| Brightness | 350 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 64.9 x 36.5" / 164.85 x 92.71 cm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms (GtG) |
| Pixels Per Inch (ppi) | 59 ppi |
| Backlighting Technology | Edge LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 2 x HDMI Video 1 x 1/8" / 3.5 mm Audio, Video 1 x 1/8" / 3.5 mm Audio 1 x DVI-D Audio, Video 1 x 15-Pin VGA Video |
| Output Ports | 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 1 x USB 3.1 / USB 3.2 Gen 1 Type-A - Control |
| Ethernet Ports | 1 |
| Control | RS-232C via DE-9/DB-9 Input |
| Other I/O | 1 x RS-232C Control Input 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output |
General
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes, Version 2.2 |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
Convenience
| Tilt Adjustment | 0 to 20° |
Electrical
| Power Consumption | Maximum: 296.0 W Standby: 0.5 W |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 80% |
| Operating Altitude | 9186' / 2799 m |
Physical
| Wall Mounting | 600 x 400 mm |
| Material of Construction | Metal |
| Bezel Thickness | 14.8 mm |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 66.2 x 37.8 x 2.9" / 168.2 x 96.0 x 7.4 cm |
| Weight | 123.46 lb / 56 kg |
Packaging Info
| Package Weight | 121.3 lb |
| Box Dimensions (LxWxH) | 71.25 x 50.5 x 10.75" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
