Product Overview

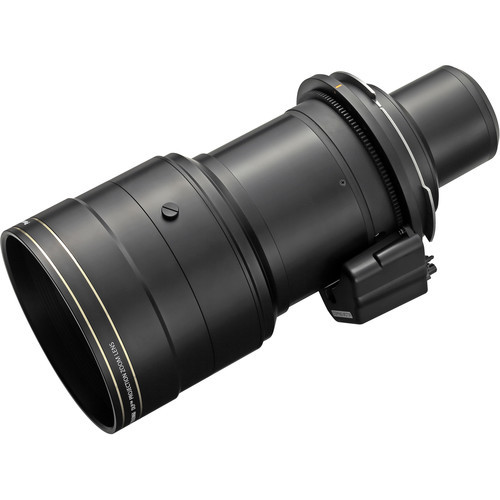

Panasonic D3LEW Overview
Designed for use with select 3-chip DLP projectors, the 19.6-23.5mm Zoom Lens from Panasonic enables you to vary the projection distance by adjusting the focal distance. The zoom lens is equipped with an EEPROM (electronically erasable programmable read-only memory) and a stepping motor. Included with the lens is a protective lens cover.
Key Features
- For Select 3-Chip DLP Projectors
- 19.6-23.5mm Focal Distance
- f/2.5 Aperture
- EEPROM and Stepping Motor
- Lens Cover Included
Panasonic D3LEW Specs
General
| Compatibility | Panasonic PT-RQ32K Panasonic PT-RZ31K Panasonic PT-RZ30K Panasonic PT-RZ21K Panasonic PT-RZ20K |
| Lens Type | Zoom |
| Motorized | Yes |
Performance
| Throw Ratio | PT-RQ32K: 0.991 to 1.18:1 (16:10) PT-RZ31K: 0.924 to 1.1:1 (16:10) PT-RZ21K: 0.924 to 1.1:1 (16:10) PT-RS30K: 1.01 to 1.19:1 (4:3) PT-RS20K: 1.01 to 1.19:1 (4:3) |
| Aperture | f/2.5 |
| Focal Length | f = 19.6 to 23.5mm |
Physical
| Exterior Dimensions | ø: 6.3 x L: 14.1" / ø: 160.0 x L: 357.0 mm |
| Weight | 19.2 lb / 8.7 kg |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
