Product Overview
Panasonic D3LEW Overview

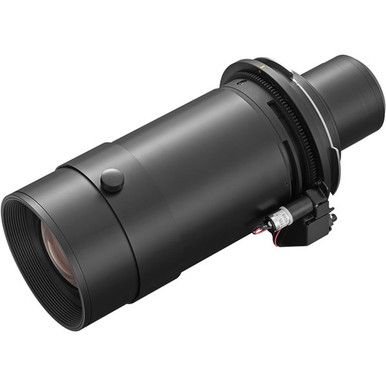

Designed for use with select 3-chip DLP projectors, the 26.6-36.4mm Zoom Lens from Panasonic enables you to vary the projection distance by adjusting the focal distance. The zoom lens is equipped with an EEPROM (electronically erasable programmable read-only memory) and a stepping motor. Included with the lens is a protective lens cover.
Key Features
- For Select 3-Chip DLP Projectors
- 26.6-36.4mm Focal Distance
- f/2.5 Aperture
- EEPROM and Stepping Motor
- Lens Cover Included
Panasonic D3LEW Specs
General
Compatibility | Panasonic PT-RQ32K Panasonic PT-RZ31K Panasonic PT-RS30K Panasonic PT-RQ22K Panasonic PT-RZ21K Panasonic PT-RS20K |
Lens Type | Zoom |
Motorized | Yes |
Performance
Throw Ratio | PT-RQ32K/RQ22K: 1.35 to 1.84:1 (16:10) PT-RZ31K/RZ21K: 1.26 to 1.72:1 (16:10) PT-RS30K/RS20K: 1.37 to 1.86:1 (4:3) |
Aperture | f/2.5 |
Focal Length | f = 26.6 to 36.4mm |
Physical
Exterior Dimensions | ø: 6.1 x L: 13.9" / ø: 154.0 x L: 354.0 mm |
Weight | 13.67 lb / 6.2 kg |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
