Product Overview
Panasonic SF2HU Overview

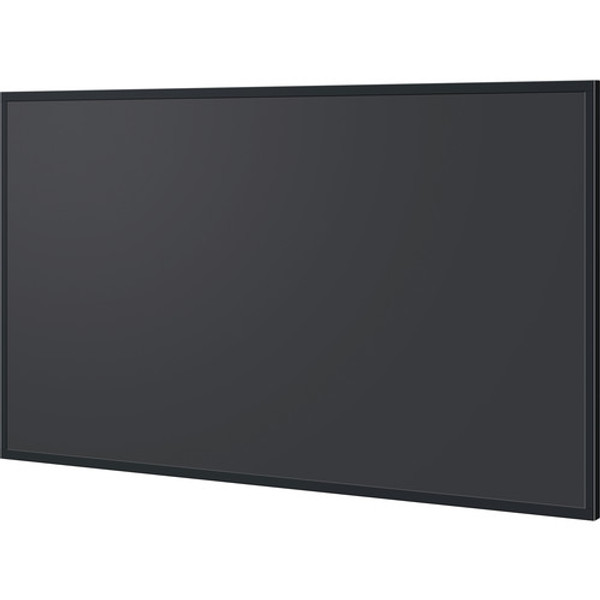

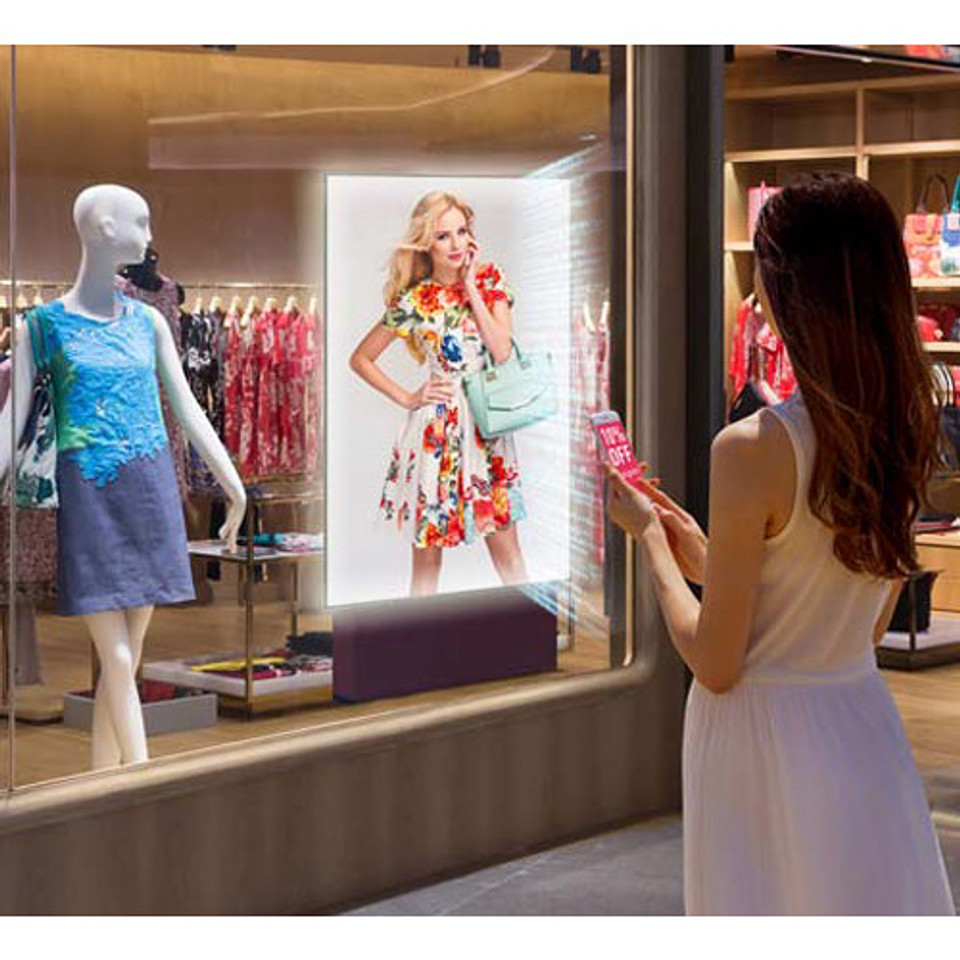

The LinkRay 70" Class Full HD Commercial LED Display from Panasonic delivers remarkable picture quality with 700 cd/m² brightness level and a viewing angle of 176°. The LinkRay transmission function allows to send digital information to smartphones using an app, and the built-in USB media player and DIGITAL LINK functions enable simple setup. High brightness and strong reliability allow continuous 24/7 operation with highly durable panel.

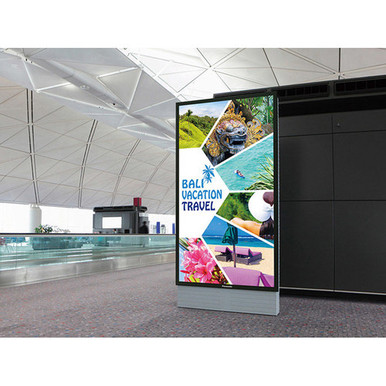

The TH-70SF2HU display can be installed vertically or horizontally to match the space, and tilted 20 degrees forward or back. HDMI-CEC compatible devices can be connected to the display by an HDMI cable, enabling the basic operations (such as power ON/OFF) of the compatible devices to be controlled by the display's remote control. With the use of a USB memory device, data settings can be replicated from one display to another.
- Failback / failover
- Multi display settings
- Power on screen delay
- Auto setting
- PC/DVI-D/HDMI/DIGITAL LINK power management
- Power save
- Button lock
- Controller user level
- Input search
- 6-segment color management
- Gradation smoother
- Dynamic backlight control
- Set up timer
- AMX D.D.
- Crestron connected
- Extron XTP
- Web browser control
- PJLink
- Light ID function compatible
- Image compatible
- Input detection
- HDMI CEC compatible
- Viewer
- Playlist editing function
- 24 hours operating time
Key Features
-
- 700 cd/m² Brightness Level
- 176° Viewing Angle
- LinkRay Transmission
- Built-In USB Media Player
- DIGITAL LINK Function
- High-Brightness
- 24/7 Operation
- Tilting Installation
- Data Cloning
- Remote Control Included
Panasonic SF2HU Specs
Display
| Screen Size (Diagonal) | 69.5" |
| Resolution | 1920 x 1080 |
| Panel Type | VA LCD |
| Brightness | 700 cd/m² |
| Viewing Angle (H x V) | 176 x 176° |
| Screen Area | 60.5 x 34.0" / 153.8 x 86.5 cm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 5000:1 |
| Dynamic Contrast Ratio | 50,000:1 |
| Response Time | 8 ms |
| Backlighting Technology | Edge LED |
Connectivity
| Input Ports | 1 x 1/8" / 3.5 mm Audio 1 x DVI-D Video 1 x VGA 15-Pin Video 2 x HDMI Audio, Video |
| Output Ports | 1 x 1/8" / 3.5 mm – Audio 1 x DVI-D – Video |
| USB Ports | 1 x USB 2.0 Type-A |
| Ethernet Ports | 1 |
| Digital Media Slot | None |
General
| Display Orientation | 45° Angle, Landscape, Portrait |
| HDCP Support | Yes, Version 1.1 |
| Lighting Lifespan | 50,000 Hours |
Surface
| Hardness Rating | 2H |
| Haze Level | 12% |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
Convenience
| Tilt Adjustment | -0 to 20° |
Electrical
| Power Consumption | Typical: 205.0 W Standby: 0.5 W Maximum: 235.0 W |
| AC Input Power | 110 VAC, 60 Hz |
| Apparent Power | 236 VA |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Operating Altitude | 0 to 9186' / 0 to 2800 m |
| Certifications | CSA, FCC, UL, as per Manufacturer |
Physical
| Wall Mounting | 400 x 400 mm |
| Material of Construction | Metal |
| Bezel Thickness | 23.6 mm (Bottom) 18.6 mm (Right) 23.6 mm (Top) 18.6 mm (Left) |
| Dimensions | 1.9 x 5.3 x 0.8" / 4.8 x 13.4 x 2.0 cm (Remote) 62.2 x 36.2 x 3.2" / 158.0 x 91.9 x 8.0 cm |
| Weight | 2.2 oz / 63 g (Remote) 99.2 lb / 45 kg |
