Product Overview
Panasonic PT-DZ21KU Overview
The Panasonic PT-DZ21KU WUXGA 3-Chip DLP Projector for Large Venues features WUXGA 1920 x 1200 resolution for detailed, sharp images. Incorporating 3-chip DLP technology and four 465W UHM lamps with a combined brightness of 20,000 lumens, the projector delivers clear, bright images. Moreover, you don’t have to worry about replacing the lamps frequently thanks to a replacement cycle of up to 2,000 hours.
To achieve a balance between deep blacks and bright whites, this projector also features Dynamic Iris, which allows it to deliver a contrast ratio of 10,000:1. It is compatible with a variety of short-, long-throw zoom and fixed-throw lenses for rear projection, which enhance its overall flexibility. 3D compatibility and installation flexibility make this projector suitable for large venues such as auditoriums, museums, medical schools, hospitals, in addition to rental and staging applications.
The Lens Memory function of this projector allows for adjustment of image size and location in up to 3 different projection positions, so you don’t have to worry about resetting it when you change its position. Furthermore, this 3D-ready projector is equipped with the DICOM Simulation Mode, which allows you to view X-ray images.
The highly efficient optical design of this eco-friendly projector ensures a small footprint and an improved liquid cooling system allows for quiet operation.
Note:
This projector is not a medical device. It is not suitable for use in actual medical diagnosis. The projector has an HID (High Intensity Discharge) lamp that contains mercury.
Key Features
- WUXGA 1920 x 1200 Resolution
- Four 465W UHM Lamps
- Combined Brightness of 20,000 Lumens
- Contrast Ratio of 10,000:1
- Lens Memory Function
- 3D Ready
- DICOM Simulation Mode
- Edge Blending
- Multi-Unit Brightness Control
- Geometric Adjustment Feature
20,000 lm Brightness
Panasonic's quad-lamp system, with its new high-power UHM lamps, has helped to make the body extremely compact while providing an astounding 20,000 lm of brightness.
Dynamic Iris for a High 10,000:1 Contrast Ratio
Panasonic's Dynamic Iris uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1 contrast without lowering its high brightness. This helps to reproduce deeper, richer blacks, and provides images with more detailed textures.
Detail Clarity Processor 3 Gives Natural Clarity to Even the Finest Details
This Panasonic circuit optimizes the sharpness of each image, based on the superhigh, high-, medium-, and low-frequency components of the extracted image information. The resuting images have more natural, lifelike expression.
System Daylight View 2 for Enhanced Color Perception
This Panasonic technology optimizes image quality to improve the color perception of the projected image in bright rooms. With a brightness of 20,000 lm, it provides highly comfortable viewing even in bright lighting, and allows viewers to concentrate easily on the images.
Waveform Monitor Function
When the output level of the source device fluctuates due to the performance of the device or its cable connections, the original black and white levels of the image content cannot be reproduced correctly. With the PT-DZ21K Series projector, you can view the waveforms on the screen and adjust the settings either automatically or manually as you prefer.
DICOM Simulation Mode
This imaging mode is similar to DICOM part 14, which is a medical imaging standard. It reproduces X-ray images with remarkable clarity.
Active 3D Projection Capability
The series is compatible with both passive and active 3D projection systems. It combines with either a separate, external 100/120/144 Hz drive with IR emitter and active shutter glasses, or an active filter and passive glasses, for viewing 3D images.
Advanced Technologies for Excellent Image Quality
3D color management system, Full 10-bit image processing, Progressive cinema scan (3:2 pulldown), Dynamic sharpness control, Digital noise reduction, IP conversion, AI scene control, 2:2 pulldown mode, sRGB compatibility, Fine-adjustable color temperature
Low TCO and an Environmentally Friendly Design
The PT-DZ21KU projector lowers the total cost of ownership (TCO) because it has a lamp replacement cycle of up to 2,000 hours. Its environmentally friendly design also includes a low power consumption of 2,300 W.
Note:
The usage environment affects the lamp replacement cycle
Four-Lamp System Enables Stable, Extended Operation
The four-lamp system allows the projector to keep working even if a lamp should fail. The Lamp Relay mode also operates the lamps alternately to enable 24/7 projection. Quad, Triple, Dual, and Single Lamp modes can be used.
Easy Lamp Replacement
For easier maintenance, you can replace the lamp from the rear. This makes it easy to replace a lamp while the projector is still in the mounting bracket or dual stacked.
Liquid Cooling System Attains a High Level of Reliability
This liquid cooling system directly cools the DLP chip to improve performance and enable operation up to 113°F (45°C). It allows quiet (49 dB) and versatile use while stabilizing performance, and helps make the body compact. And the system is hermetically sealed, so you don't need to replenish the liquid.
Note:
The operating temperature range is 32 to 104°F (0 to 40°C) when the fan control is set to HIGH ALTITUDE MODE (for altitudes from 4,593 to 8,858' (1,400 to 2,700 m) above sea level). When the projector is used with the ET-SFR510 Smoke Cut Filter, the operating temperature range is 32 to 95°F (0 to 35°C), and the projector cannot be used in places at high altitude.
Eco Filter that Needs No Maintenance for up to 12,000 Hours
The Eco Filter has an electrostatic Micro Cut Filter that collects minute dust particles with an ion effect. It combines with the dust-resistant cabinet to enable long-term use even under harsh conditions. Its maintenance cycle of up to 12,000 hours reduces hassle, and the environmental design lets you wash the filter with water and reuse it.
Note:
The usage environment affects the filter maintenance cycle
When washing with water, please follow the procedures listed in the operating instructions. It is recommended to replace the filter with a new one after it has been washed and reused twice. If the filter is not sufficiently clean after washing, replace it with a new one.
When washing with water, please follow the procedures listed in the operating instructions. It is recommended to replace the filter with a new one after it has been washed and reused twice. If the filter is not sufficiently clean after washing, replace it with a new one.
Flexible Installation
The wide adjustment range of the powered horizontal/vertical lens shift function can be easily adjusted with the remote control. The unit can also be rotated 360° vertically, to accommodate various installation conditions. The lens-centered design contributes to easy installation.
Note:
A special fixture must be attached to the lamp case when the projector is placed at an angle within ±30° (upward/downward) of the vertical.
Multi-Unit Brightness Control
This function automatically corrects the brightness fluctuations that occur over time in the individual projectors of a multi-screen system. Up to 8 projectors can be controlled by connecting to each other via a hub, and this can be increased to a maximum of 2,048 projectors by using Multi Projector Monitoring & Control Software Version 2.7.
Multi-Screen Support System Seamlessly Connects Multiple Screens
Edge Blending: The edges of adjacent screens can be blended and their luminance controlled.
Color Matching: This function corrects for slight variations in the color reproduction range of individual projectors. The PC software assures easy, accurate control.
Multi-Screen Processor: This projector can project large, multi-screen images without any additional equipment. Up to 100 units (10 × 10) can be edge-blended at a time.
Color Matching: This function corrects for slight variations in the color reproduction range of individual projectors. The PC software assures easy, accurate control.
Multi-Screen Processor: This projector can project large, multi-screen images without any additional equipment. Up to 100 units (10 × 10) can be edge-blended at a time.
Geometric Adjustment for Specially Shaped Screens
This function adjusts the image for projection onto spherical, cylindrical, and other specially shaped screens. You can make the adjustment easily using only the remote control, with no external equipment needed.
Multiple Terminals

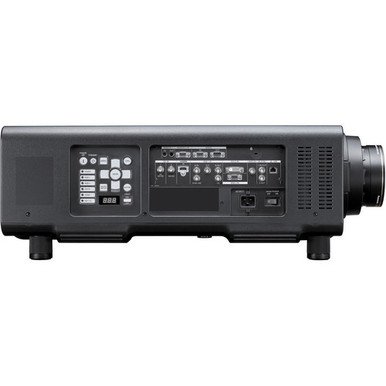

This projector has an array of terminals, including DVI-D, HDMI, and 2 RGB inputs. It also features a 3D-ready HD/SD-SDI input and 3D sync terminals to connect an emitter for 3D projection.
Multi Projector Monitoring & Control Software Version 2.7
Panasonic's original Multi Projector Monitoring & Control Software Ver. 2.7 freeware lets you control and monitor multiple projectors at the same time over a wired LAN. If a problem occurs, an alarm message is sent to the monitoring/controlling PC.
Other Valuable Features

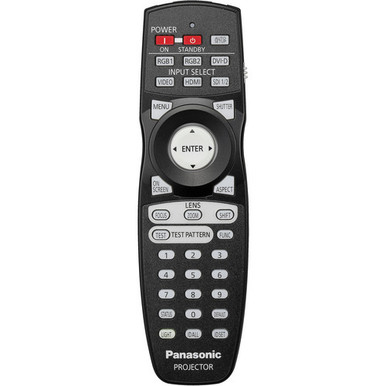

Mechanical lens shutter with fade in/out effect, P-in-P function, 98.4' (30 m) long-range wireless remote control with LED backlight, ID assignment for up to 64 units, Control device setup function, Built-in test pattern, Selectable 10-language on-screen menu (English, German, French, Spanish, Italian, Portuguese, Russian, Japanese, Chinese, Korean), RoHS Directive compliant, Anti-theft features with chain opening
Note:
'P-in-P' function cannot be used with some input signals and selected inputs.
Ecology-Conscious Design
- No halogenated flame retardants are used in the cabinet
- Lead-free solder is used to mount components to the printed circuit boards
- Stand-by power consumption of only 0.3 W
- Auto Power Save activates standby mode when no signal is input
Note:
With the STANDBY MODE set to ECO. When the STANDBY MODE is set to ECO, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
Panasonic PT-DZ21KU Specs
Image Display
| Display System | -Chip DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Maximum Brightness | 20,000 Lumens |
| Uniformity | 90% |
| Aspect Ratio | Native: 16:10 |
| DLP Link 3D | Yes |
Lens
| Projection Size | 70 - 600" / 177.80 - 1524.00 cm |
Features
| Keystone Correction | Vertical: ± 40° Horizontal: ± 15° |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
General
| Lamp Power | 465 W |
| Expected Lamp Life | Medium Brightness: 2000 Hours |
| Power Consumption | Full Brightness: 2300 W Standby Mode (Lamp Off): 9 W Low Brightness: 0.3 W |
| Dimensions (W x H x D) | 24.4 x 11.5 x 31.5" / 619.8 x 292.1 x 800.1 mm |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
