Product Overview
Panasonic PT-EW730ZU Overview

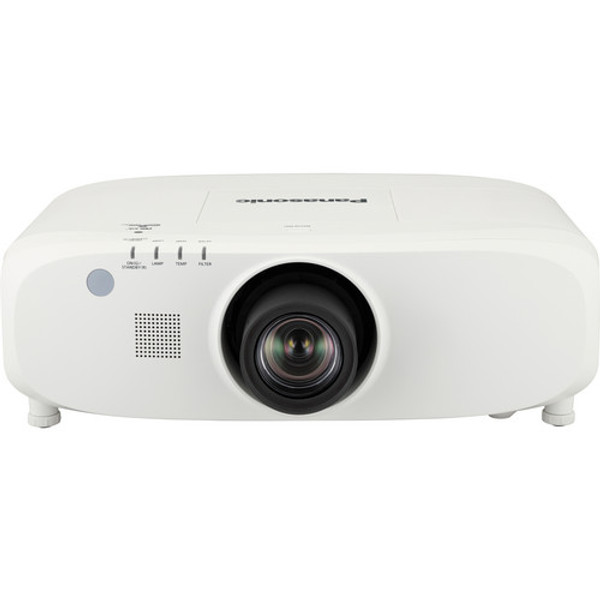

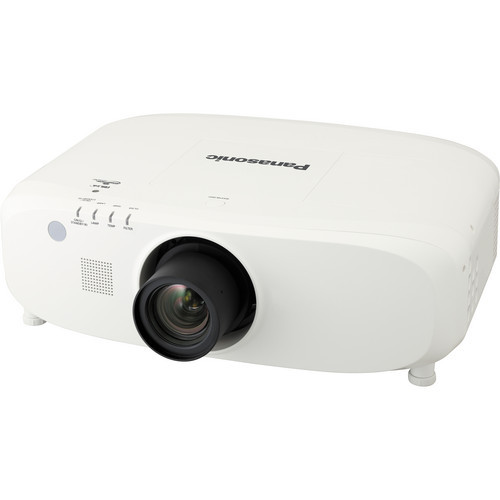

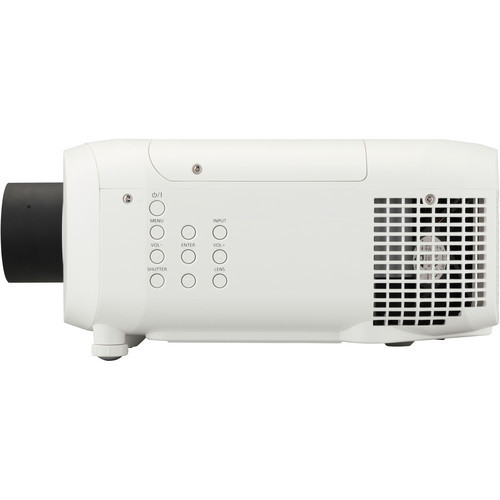

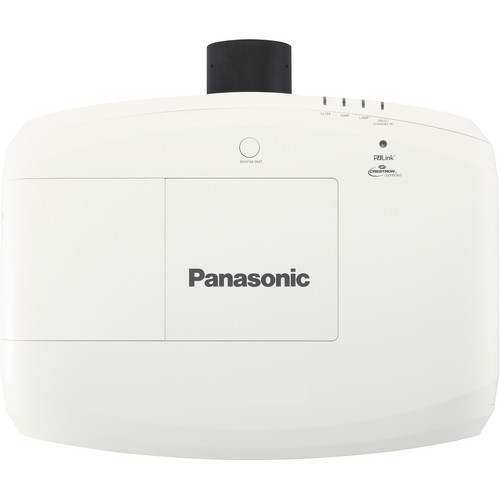

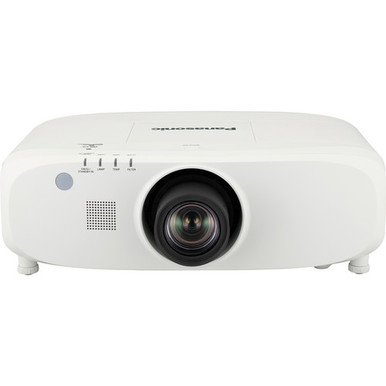

The PT-EW730ZU 3LCD WXGA Multimedia Projector from Panasonic features the standard zoom lens which has a throw ratio of 1.7 to 2.8:1, and can also work with other lenses from Panasonic, including short- and long-throw options. An installation class model, it outputs a brightness of 7000 ANSI lumens in standard mode (up to 7500 lumens in maximum) and features a native resolution of 1280 x 800 (WXGA) - other input resolutions are supported through scaling. Thanks to the flexibility of the lens system, the projector is suitable for deployment in a wide range of applications, including corporate conferences rooms, trade shows, houses of worship, lecture halls, medical imaging, and more.

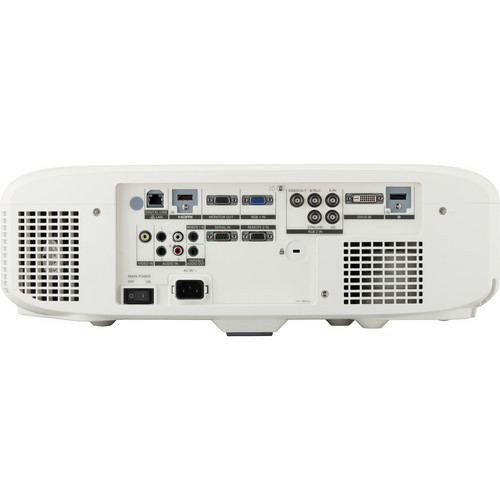

Six video inputs allow you to connect the PT-EW730ZU to just about any source, digital or analog. For computers and digital HD equipment there is a DisplayPort input, an HDMI input, and a DVI-D (digital only) input. A VGA input is provided for legacy analog computer sources, and there is a 5-BNC hybrid analog input for RGBHV, Component, Y/C (adaptable to S-video), or Composite. There is also a dedicated Composite RCA input and a total of three analog audio inputs; one on 2-RCA and two on 3.5mm mini jacks. Uncompressed video (and RS-232C control) can also be input through the Ethernet port when connecting to Panasonic Digital Link-compatible HDBaseT equipment. There is a 10 W mono speaker for audio output, and there is a variable audio output on a 3.5mm mini jack for connecting amplified speakers or a separate sound system.
