Product Overview
Panasonic FRZ50 Overview

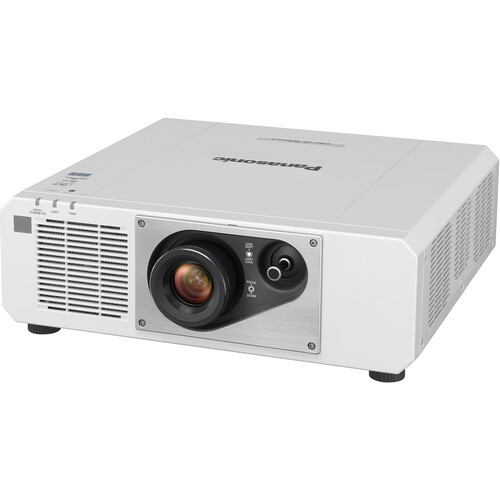

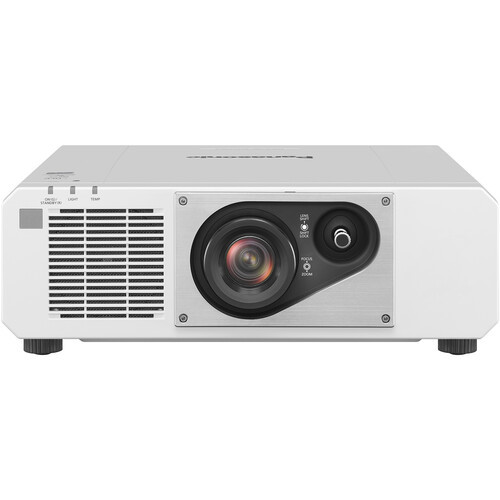

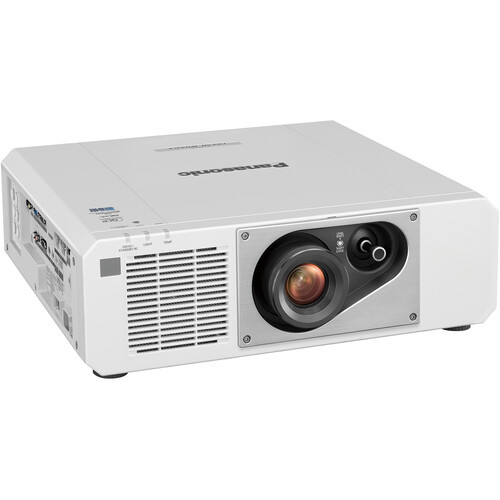

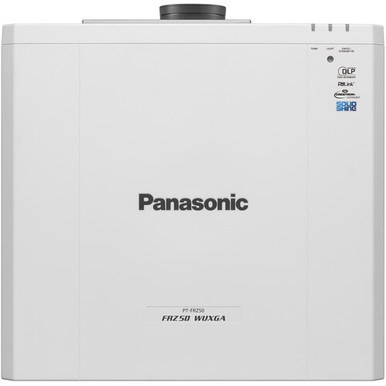

Enjoy bright images in most classroom and office settings with the white Panasonic PT-FRZ50WU 5200-Lumen WUXGA Classroom & Office Laser DLP Projector. Its 5200 lumens of brightness and 20,000:1 dynamic contrast ratio will work together to overcome light in most rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing detailed video, pictures, or data. The 1.46 to 2.94:1 throw ratio offers a range of throw distances for focused images from the back of nearly any room.
The PT-FRZ50WU features composite video, two VGA, and two HDMI inputs to connect to nearly any device. One VGA input can alternatively act as an output to daisy-chain multiple projectors or displays. The projector is controllable via the included wireless remote control, DIGITAL LINK via Ethernet, or RS-232 with various control software options.
Key Features
- Brightness of 5200 Lumens
- WUXGA (1920 x 1200) Native Resolution
- 1.46 to 2.94:1 Throw Ratio
- VGA, Composite Video, 2 x HDMI Inputs
- Second VGA Port for Input or Output
- Analog Audio Input and Output
- 360° Rotation-Capable
- Compatible with Various Control Systems
- Ethernet and RS-232 Controllable
- IR Remote Control Included
Dynamic Color for Bright Rooms
Brilliant Color Reproduction
Quartet Color Harmonizer is an original color wheel mechanism featuring an optimized optical design. It modulates light output according to the image's color requirements, achieving wide-gamut reproduction with pure white for greater color accuracy and depth without sacrificing brightness. Combined with stable SOLID SHINE laser brightness and the superior uniformity of DLP imaging, colors appear richer and brighter without the greenish cast sometimes experienced with alternative projection technologies.
Rich Color Enhancer
Rich Color Enhancer includes a Dynamic Mode that prioritizes image brightness, and a Graphic Mode/Standard Mode to suit graphical content. This mode adjusts color wheel timing for deeper color saturation in situations where projection at maximum brightness is not required.
Dynamic Contrast 2 Heightens Contrast Precision
The PT-FRZ50WU features a new Dynamic Contrast 2 setting that enhances digitally modulated contrast precision to a level approaching our professional models. Dynamic Contrast regulates light output frame-by-frame or scene-by-scene according to image requirements, achieving accurate contrast when bright and dark scenes frequently interchange. Whites are brighter, blacks richer, and skin-tones more natural even in well-lit environments. The technology also consumes less energy than conventional projection systems.
Quiet, Versatile, and Easy to Install
Wide-Range 2x Zoom Lens with Lens Shift
To smooth the path to stress-free installation, the projector equips a 2x optical zoom lens that supports a wide range of throw distances while filling the entire screen with a high-brightness image. Vertical and horizontal lens shift (vertical: +64% ,-44%; horizontal: +34%, -27%) locates the image on screen when optimal projector placement isn't possible, such as in rooms with high ceilings or for angled projection. Vertical and horizontal keystone correction (vertical: ±40°, horizontal: ±20°), curved screen correction, and Auto Image Rotation functions are included to further enhance flexibility. Lens, lens-shift range, and optional brackets are identical to the previous Panasonic PT-RZ570 model, making the PT-FRZ50WU a cost-effective replacement choice, since the new projector can swap straight in with practically no installation adjustment required.
Supports 4K/60p Signal Input
This projector supports uncompressed 4K/60p input signals via HDCP 2.3-compliant HDMI inputs or the DIGITAL LINK terminal. The ability to play Ultra HD video at the projector's resolution is invaluable when distributing the same signal to 4K-ready endpoints of differing screen resolutions. An external video converter is not required, saving on installation cost, and you no longer need to re-encode video to suit different display resolutions. If preferred, both video and 10BASE-T/100BASE-TX control signals can be assigned to DIGITAL LINK using Cat 5e STP cable (or higher), providing a cost-efficient way to connect over long distances.
Quiet 27 dB Projection Mode
With more lessons and meetings now taking place online, it's important to own a quiet projector that won't drown out the discussion. A silent projector also helps your team to focus by limiting distractions. The PT-FRZ50WU includes a Quiet Mode that enables practically inaudible 27 dB operation. Enjoy better results from an alert audience, whether they're in the room or participating online.
CEC-Ready HDMI Inputs and USB-DC Outlet
HDMI inputs are compatible with control commands from a CEC-compatible component, and allow you to power the projector on/off and commence playback using the source device's controls. A 5V/2A USB-DC outlet will power an HDMI network streaming device so groups can share content to the big screen from their PCs or mobiles. USB power also supports connection of PressIT, Panasonic's new Wireless Presentation System, for effortless one-touch transmission of content from PC or mobile – no software installation required.
Separate LAN and DIGITAL LINK Terminals
Separate LAN and HDBaseT-based DIGITAL LINK terminals allow 100BASE-TX and 10BASE-T control signals via Panasonic, Crestron, AMX, and Extron applications to be assigned to the dedicated LAN connection, freeing DIGITAL LINK for high-bandwidth video over cable runs of up to 492'.
Auto Screen Image Rotation
Images are automatically rotated depending on installation orientation: upside down on the ceiling, or set on a table, using a built-in accelerometer.
ECO Management System
Push the ECO button on the remote control to set up Eco Management functions, including automatic brightness reduction in dim ambient lighting conditions and power consumption reduction when no input signal is detected.
Proven SOLID SHINE Laser Reliability
SOLID SHINE Laser for Dependably High Brightness
The PT-FRZ50WU has a durable solid-state laser module in place of a consumable lamp. The benefits of laser projection are emphatically proven, with no need for consumable parts replacement over years of continuous 24/7 projection and a shallower brightness ramp with superior color uniformity. Experience better picture quality for longer at a comparably lower cost. Another advantage is the ability to switch the unit on and off from the room breaker any time without risking damage to the light source.
Laser Redundancy Maintains Image Display
Failover Circuitry limits brightness loss in the unlikely event of a single diode failure. Multi Laser Drive Engine features redundant laser modules that maintain image display and allow the presentation to continue if a laser module fails, invaluable for mission-critical situations when projection must not be interrupted.
Filter-Free Cooling and Airtight Optical Block
Implementation of heat-pipe-based cooling with heat sinks for the DMD block eliminate the need for an air filter. This projector can operate continuously in dusty environments for up to 20,000 hours without maintenance thanks to a hermetically sealed optical engine that prevents dust intrusion and associated image degradation.
Image Quality Features
Detail Clarity Processor 3
This unique Panasonic circuitry optimizes the sharpness of each image based on information gathered from four frequency bands of the video signal. The resulting images are expressed with natural and convincing realism.
Daylight View Basic
Panasonic's Daylight View Basic technology achieves sharp, easily viewed images by enhancing detail, particularly in dark areas of the image that are normally difficult to see in brightly lit rooms. A built-in sensor measures ambient light while Daylight View Basic adjusts halftone color and brightness according to the surrounding level of illumination.
Networking Features
Multi Monitoring & Control Software with Optional Early Warning Functions
Manage up to 2048 devices over your intranet with convenient system-map visualization and auto-search of unregistered devices. The free software is bundled with optional Early Warning functions. These enable abnormality detection, scheduled maintenance reminders, and more.
Single-Cable DIGITAL LINK Connection
DIGITAL LINK transmits uncompressed video, audio, and control commands through a single Cat 5e STP cable for distances of up to 492'. An optional ET-YFB200G DIGITAL LINK Switcher or ET-YFB100G Digital Interface Box further simplifies installation, reduces cabling and associated costs, and enhances reliability.
Additional Features
- HDMI support for Deep Color and CEC
- Laser Safety Guaranteed
- Quick Start / Quick Off function
- 360° front and side body-rotation
- Edge-blending and color-matching functions
- Compatible with Art-Net DMX, Crestron Connected, and PJLink
- DICOM Simulation Mode
- Digital Fade In / Fade Out function
- Screen adjustment for specially shaped screens
- Compatible with Logo Transfer Software
- Molded plastic construction
Panasonic FRZ50 Specs
Image Display
| Display System | DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Maximum: 4K UHD - 3840 x 2160 @ 60 Hz |
| Maximum Brightness | 5200 Lumens (ISO) 5400 Lumens (Center) |
| Aspect Ratio | Native: 16:10 |
Lens
| Focus | Manual |
| Lens | f/2 - 3.4 (f = 21.5 - 43 mm) |
| Lens Shift | Horizontal: -44 to 64% Vertical: -27 to 34% |
| Optical Zoom | Manual: 2x |
| Throw Ratio | 1.46 to 2.94:1 |
| Projection Size | 40 - 300" / 101.6 - 762.0 cm |
Features
| Keystone Correction | Horizontal: ± 20° Vertical: ± 40° |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Projection Tilt Option | Yes |
Input/Output Connectors
| Inputs/Outputs | 1 x HDBaseT (RJ45) Audio, Data, LAN, Video 2 x HDMI (HDMI Type-A) Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Input/Output 1 x Composite (RCA) Video Input 1 x 2RCA Audio Input 2 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x Ethernet (RJ45) LAN 1 x USB 2.0 (USB Type-A) Power Output 1 x RS-232 (DE-9/DB-9) Control Input |
| HDCP Support | Version 2.3 |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 20,000 Hours |
| Fan Noise | Full Brightness: 32 dB Low Brightness: 27 dB |
| Security | Cable Lock Slot |
| Supported Languages | Arabic Czech Danish Dutch English Finnish French German Hungarian Italian Japanese Kazakh Korean Norwegian Polish Portuguese Romanian Russian Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Medium Brightness: 465 W |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 10 to 80% |
| Dimensions (W x H x D) | 19.6 x 6.6 x 19.4" / 498.0 x 168.0 x 492.0 mm With Legs at Shortest Position |
| Weight | 35.3 lb / 16 kg |
Packaging Info
| Package Weight | 47.7 lb |
| Box Dimensions (LxWxH) | 27 x 24 x 12.2" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
