Product Overview
Panasonic JX200F Overview

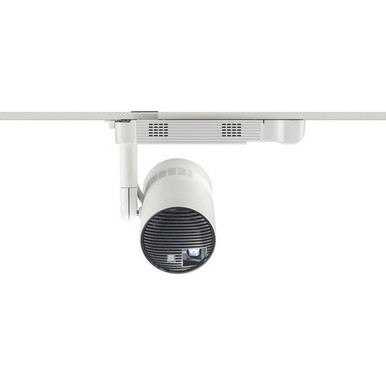

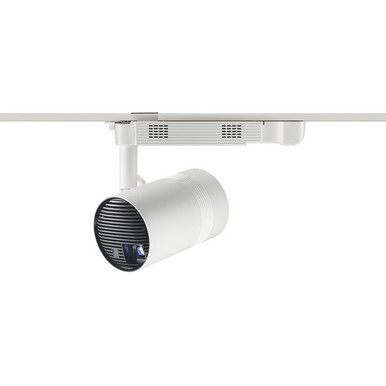

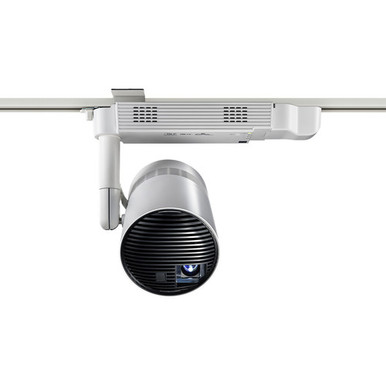

The white PT-JX200F XGA 2000-Lumen Space Player DLP Direct-Mount Projector from Panasonic provides a hybrid illumination and image-projection solution to enhance displayed objects or create vivid signage in variety of locations and applications. The ability to combine customized spotlighting and ambient illumination, still images, and moving pictures grabs attention in retail environments, while harnessing brightness and resolution to deliver text-and-image information clearly in exhibition spaces. This projector gives you the freedom to project a variety of media and in-browser control for networked units. The projector is placed in a housing made of molded plastic and features fixed vertical axis shift of 33%.
Panasonic JX200F Specs
Image Display
| Display System | 0.55" DLP |
| Native Chip Resolution | 1024 x 768 (XGA) |
| Supported Resolutions | VGA @ 60 Hz SVGA @ 56 Hz SVGA @ 60 Hz XGA @ 60 Hz SXGA @ 60 Hz 1280 x 720 @ 50 Hz 1280 x 720 @ 60 Hz 1280 x 768 @ 50 Hz 1280 x 768 @ 60 Hz 1280 x 800 @ 50 Hz 1280 x 800 @ 60 Hz 1600 x 900 @ 50 Hz 1600 x 900 @ 60 Hz |
| Maximum Brightness | 2000 Lumens |
| Uniformity | 80% |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 1000:1 |
| Scan | Horizontal: 15.6 to 67.5 kHz Vertical: 49.8 to 60.3 Hz |
Lens
| Lens | f/2.0 - 2.7 (f = 15.2 - 32.7 mm) |
| Lens Shift | Vertical: + 17% |
| Optical Zoom | Powered: 2.2x |
| Throw Ratio | 1.3 to 2.9:1 |
| Projection Size | 30 - 200" / 76.20 - 508.00 cm |
Features
| Keystone Correction | Vertical: ± 40° Horizontal: ± 40° |
| Ceiling Mountable | Yes |

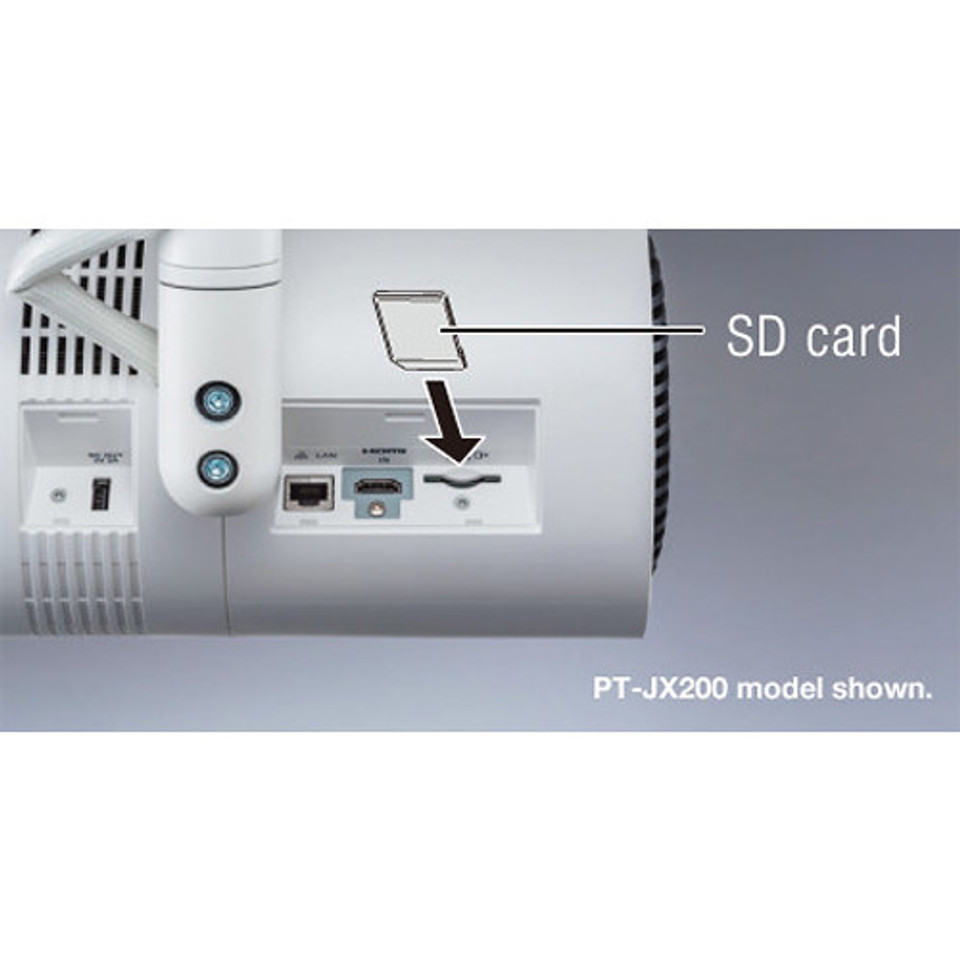

| Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x Ethernet (RJ45) LAN Input/Output 1 x M3 Audio Output 1 x USB 2.0 (USB Type-B) Power Output |
| Wireless LAN / Wi-Fi | Yes, Built-in |
General
| Lamp Power | 36 W |
| Expected Lamp Life | Medium Brightness: 20,000 Hours |
| Fan Noise | Medium Brightness: 33 dB Low Brightness: 30 dB |
| Power Consumption | Medium Brightness: 240 W Standby Mode (Lamp Off): 0.4 W Standby Mode (Lamp Off): 0.5 W Standby Mode (Lamp Off): 12 W |
| Dimensions (W x H x D) | 8.7 x 5.9 x 8.1" / 22.0 x 15.0 x 20.5 cm |
| Weight | 10.1 lb / 4.6 kg |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
