Panasonic RCQ10LWU Overview

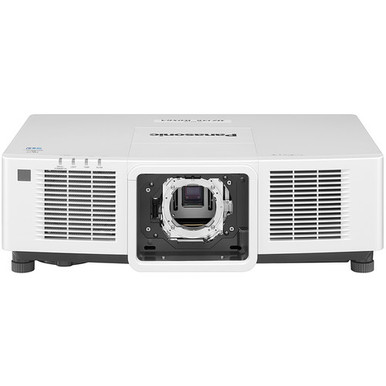

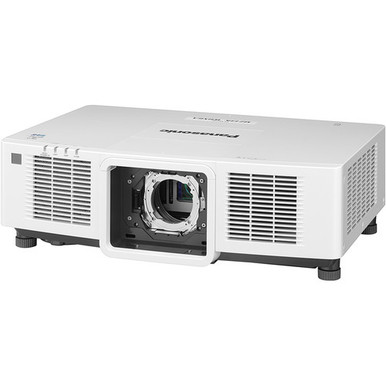

Enjoy bright images in most settings with the white Panasonic PT-RCQ10LWU 10,000-Lumen WUXGA Laser DLP Projector. Its 10,000 lumens of brightness and 10,000:1 dynamic contrast ratio will work together to overcome light in most rooms and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing detailed video, pictures, or data. The projector supports a variety of optional interchangeable lenses to offer various throw ratio choices.
The PT-RCQ10LWU features HDMI, 3G-/HD-SDI, DVI-D, and HDBaseT inputs to connect to nearly any source device. The projector is controllable via HDBaseT or RS-232 with various control software options.
Key Features
- Brightness of 10,000 Lumens
- WUXGA (1920 x 1200) Native Resolution
- On-Screen Resolution up to 2715 x 1697
- Separately Available Lens Required
- HDBaseT, 3G-/HD-SDI, DVI-D, HDMI Inputs
- SLOT NX Expansion Slot
- 360° Rotation-Capable
- Compatible with Various Control Systems
- HDBaseT, Ethernet, RS-232 Controllable
Designed to Produce Detailed Images with Rich, Natural Colors
The Rich Color Harmonizer helps provide deep, vibrant color expression. Combined with Smooth Pixel Drive, a technology engineered to create crisp, smooth images using 1-axis wobbling, you'll enjoy colorful, detailed images.
Upgradeable Design
With support for 4K input signals, DIGITAL LINK, an available SLOT NX interface slot, and compatibility with a variety of Panasonic 1-chip DLP lenses, you can upgrade and adapt the PT-RCQ10LWU for use in various settings.
Long-Lasting Design
The SONIC SHINE laser cooling system helps the light source last for up to 20,000 hours of maintenance-free operation.
Additional Features
- HDCP 2.2 and Deep Color compatibility via HDMI and DIGITAL LINK
- HDCP-compatible single-link DVI version 1.0
- Available software includes Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, and Smart Projector Control for iOS or Android devices
Panasonic RCQ10LWU Specs
Image Display
| Display System | 0.67" DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| On-Screen Resolution | Up to WQXGA (2715 x 1697) via Pixel-Shift Technology |
| Supported Resolutions | Maximum: 4K UHD - 3840 x 2160 @ 60 Hz |
| Maximum Brightness | 10,000 Lumens |
| Uniformity | 90% |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | 10,000:1 |
Lens
| Projection Size | 50 - 600" / 127.00 - 1524.00 cm |
Features
| Supported HDR Input Formats | None |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Projection Tilt Option | Yes |
Input/Output Connectors
| Inputs/Outputs | 1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Service, Video 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x 3G-SDI (BNC) Video Input 1 x DVI-D Video Input 1 x BNC Data Input 1 x BNC Data Output 1 x RS-232 (DE-9/DB-9) Control Input 1 x RS-232 (DE-9/DB-9) Control Output 1 x 1/8" / 3.5 mm Mini Remote Input 1 x 1/8" / 3.5 mm Mini Remote Output 1 x DE-9/DB-9 Remote Input 1 x Ethernet (RJ45) LAN 1 x USB 2.0 (USB Type-A) Data, Power |
| Number of Expansion Slots | 1 |
| Wireless LAN / Wi-Fi | No, Optional Adapter Available |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours |
| Fan Noise | Full Brightness: 43 dB Medium Brightness: 40 dB Low Brightness: 38 dB |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Medium Brightness: 1100 W |
| Operating Altitude | 13,779' / 4200 m |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 10 to 80% |
| Dimensions (W x H x D) | 19.6 x 7.9 x 21.2" / 498.0 x 200.0 x 538.0 mm Without Lens, With Legs at the Shortest Position |
| Weight | 51.59 lb / 23.4 kg |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
