Product Overview
Panasonic RQ22KU Overview

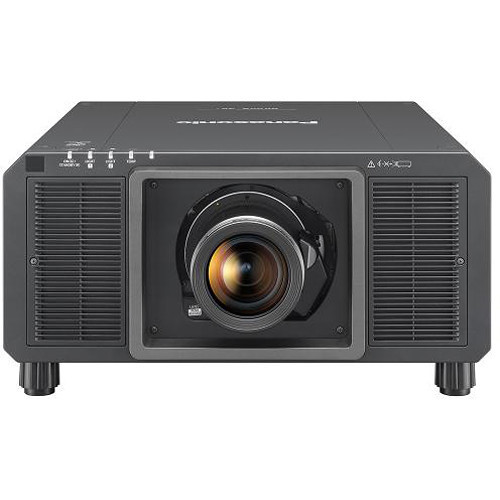

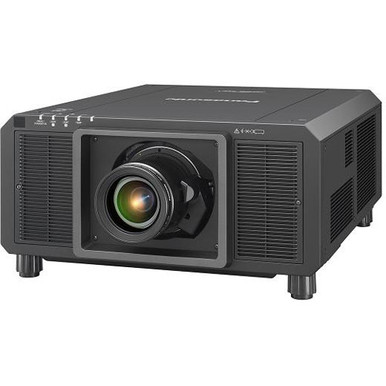

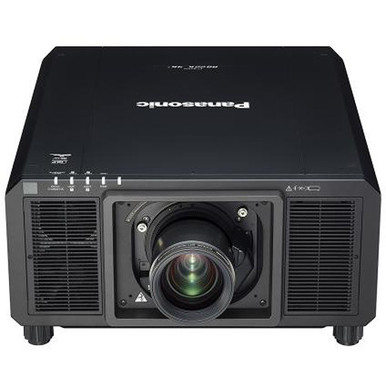

The PT-RQ22KU 20,000-Lumen 4K+ 3-Chip DLP Projector from Panasonic supports a resolution of up to 5120 x 3200 with a brightness of 20,000 lumens. It features a contrast ratio of 20,000:1, supports 360° rotation, and has a 240 Hz refresh rate. There are four 3G-SDI BNC inputs, two RS-232 ports, and an RJ45 LAN port. This projector is compatible with select lenses (available separately).
- 3-chip DLP Solid Shine laser series produces vividly colored pictures rich in detail with excellent brightness
- Maintenance-free operation for up to 20,000 hours

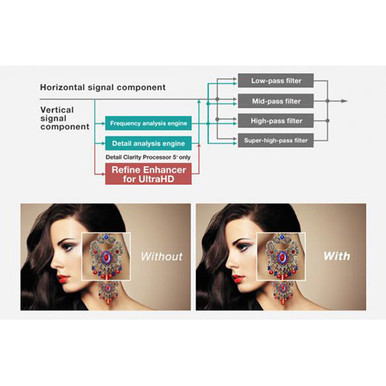

- Algorithms extract hidden information from super-high to low-frequency video bands, sharpening outlines, correcting contours, and reducing ringing noise to improve the sense of resolution
Key Features
- Brightness of 20,000 Lumens

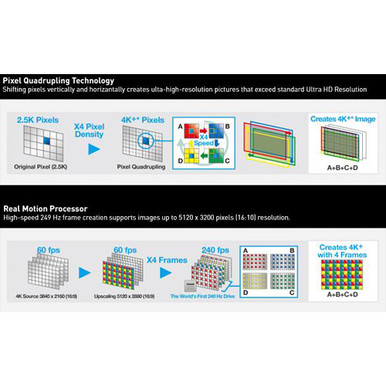

- 4K+ (5120 x 3200) Resolution
- 20,000:1 Contrast Ratio
- 360° Rotation-Capable

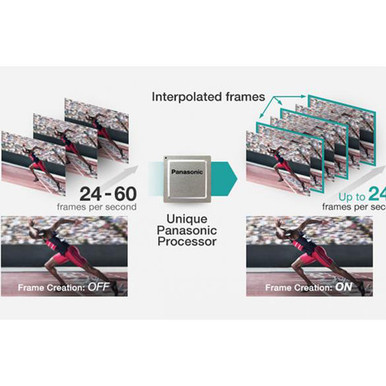

- 240 Hz Refresh Rate
- Four SDI Inputs
- Multi Projector Sync Input & Output
Panasonic RQ22KU Specs
Image Display
| Display System | 3-Chip 0.9" DMD DLP |
| Native Chip Resolution | 5120 x 3200 |
| Supported Resolutions | Maximum: 5120 x 3200 |
| Maximum Brightness | 20,000 Lumens 21,000 Lumens |
| Uniformity | 90% |
| Aspect Ratio | Supported: 16:10 |
Features
| Keystone Correction | Vertical: ± 40° Horizontal: ± 15° |
| Ceiling Mountable | Yes |
Input/Output Connectors

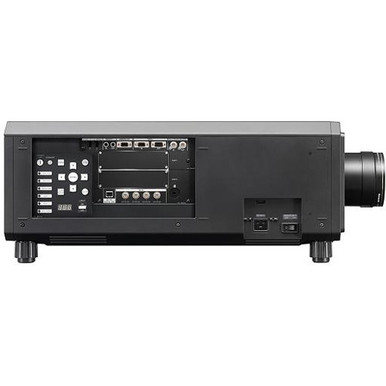

| Inputs/Outputs | 4 x 3G-SDI (BNC) Video Input 1 x BNC Control Input 1 x BNC Control Output 1 x RS-232 (DE-9/DB-9) Control Input 1 x RS-232 (DE-9/DB-9) Control Output 1 x M3 Control Input 1 x M3 Control Output 1 x RS-232 (DE-9/DB-9) Remote Input 1 x Ethernet (RJ45) LAN 2 x USB Type-A Power Output |
| Number of Expansion Slots | 2 |
Hardware
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 10 to 80% |
| Dimensions (W x H x D) | 23.5 x 10.6 x 28.5" / 598.0 x 270.0 x 725.0 mm |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
