Product Overview
Panasonic RZ990 Overview

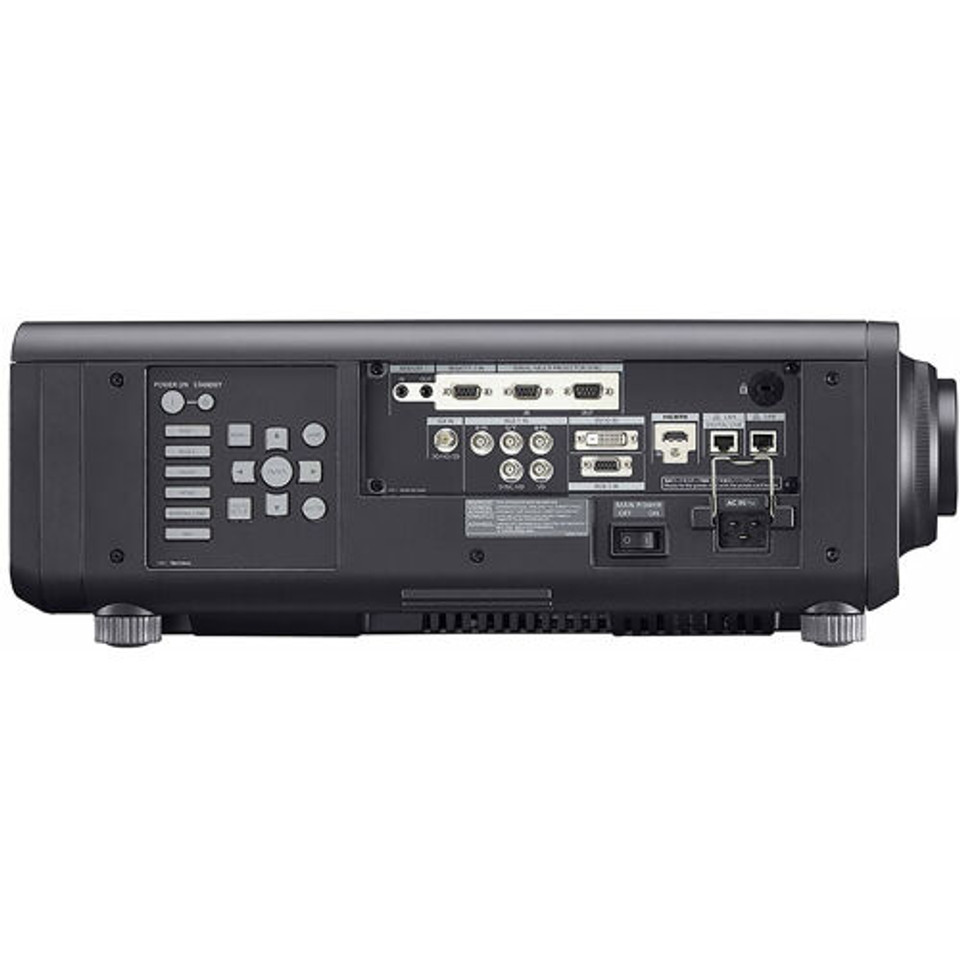

Deepen immersion in any environment with high brightness, rich color, and accurate white balance thanks to the Quartet Color Harmonizer and DLP imaging technology in the black Panasonic PT-RZ990L 9400-Lumen WUXGA Exhibition Laser DLP Projector. With versatile apps and functions, diverse optional lenses, support for 4K input signals, and separate DIGITAL LINK and LAN terminals, the PT-RZ990 helps reduce installation hassles with convenient flexibility.
This projector is engineered for up to 20,000 hours of maintenance-free reliability with lasting brightness and color uniformity from a dust-resistant optical engine.
Key Features
- Brightness of 9400 ISO Lumens
- WUXGA (1920 x 1200) Native Resolution
- Uses Interchangeable Lenses
- HDMI, DVI-D, DIGITAL LINK HDBaseT Inputs
Accurate Color Reproduction
The Quartet Color Harmonizer is a color wheel technology featuring an optimized optical design. It is designed to precisely modulate light output to color requirements for pure white. With the color uniformity of DLP devices supporting seamless edge blends, an immersive single- or multi-screen projection experience is assured.
4K Signal Input Support
The PT-RZ990 supports 4K input signals and fits seamlessly into 4K-ready infrastructure. A separate LAN terminal for control frees the DIGITAL LINK port for high-bandwidth video over long cable runs up to 492'.
Flexible, Convenient Installation
Select from a family of 11 optional lenses, including the ET-DLE020 ultra-short throw zoom lens. The Free Grid function corrects screen distortion without a computer, while the Smart Projector Control app expedites setup.
Up to 20,000 Hours Maintenance-Free
Dust resistance, an airtight optical block, and filter-less cooling team with the failover-protected dual-laser drive to extend maintenance-free projection up to 20,000 hours. Backup input switching adds extra insurance.
Panasonic RZ990 Specs
Image Display
| Display System | 0.67" DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Maximum Brightness | 9400 Lumens (ISO) 10,000 Lumens (Center) |
| Uniformity | 90% |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | 10,000:1 |
Features
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Remote | None |
Input/Output Connectors
| Inputs/Outputs | 1 x HDBaseT (RJ45) Audio, Control, Data, Power, Video 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x DVI-D Video Input 1 x SDI (BNC) Video Input 1 x SDI (5BNC) Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x Ethernet (RJ45) LAN 1 x 1/8" / 3.5 mm Mini Remote Input 1 x 1/8" / 3.5 mm Mini Remote Output 1 x DE-9/DB-9 Remote Input 1 x RS-232 (DE-9/DB-9) Control Input 1 x RS-232 (DE-9/DB-9) Control Output |
| HDCP Support | Version 2.2 |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours |
| Fan Noise | Full Brightness: 40 dB Medium Brightness: 36 dB Low Brightness: 35 dB |
| Security | Cable Lock Slot |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 735 W Medium Brightness: 490 W Low Brightness: 205 W |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 10 to 80% |
| Dimensions (W x H x D) | 19.6 x 7.9 x 21.2" / 498.0 x 200.0 x 538.0 mm |
| Weight | 48.9 lb / 22.2 kg |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
