Product Overview

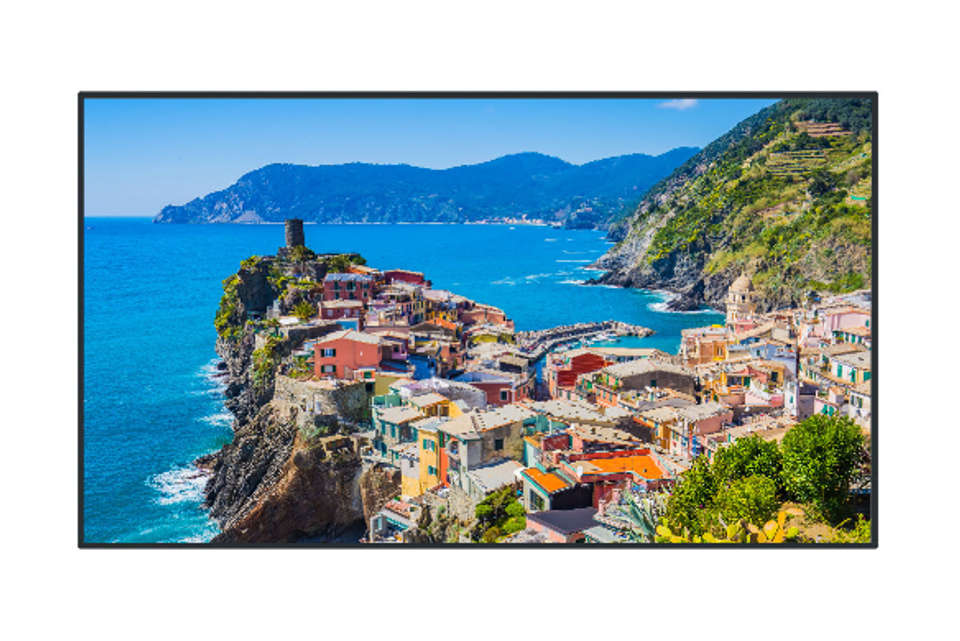

Large 75 inch 4K professional display featuring a thin and stylish design offering high level digital signage with easy installation and high connectivity. Ideal for corporate and retail environments.
- Easy to connect peripherals (camera/speaker) directly to display
- Increased input type and number of available inputs
- Function slot for increased functionality
- Higher visibility due brightness typically found on higher end products
- Installation flexibility – portrait and tilt supported
Tech Specs
- Aspect Ratio - 16:9
- Display Applications - Corporate
- Display Applications - Education
- High Definition - Yes
- Integrated Speakers - Yes
- Orientation - Landscape
- Orientation - Portrait
- Supported Resolution - Ultra HD (3840x2160)
- VESA Mount Size - 600x400 mm
- Spec Sheet available - Yes
- Contrast Ratio: 1200
- Depth: 2.74 in
- Height: 37.87 in
- Width: 66.28 in
- Built-in Speaker: 20W [10 W + 10 W]
- Response Time: 8.0 ms (G to G)
- Operating Time: 18 h/day
- Standby Power: 0.50 Watt
- Operating Environment: Temperature: Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft)
- Product Weight: 81.10 lbs
- Display Size: 74.50 in
- Brightness (candela): 500 cd/m2
- Operating Temperature (Maximum): 104 F
- Operating Temperature (Minimum): 32 F
- AC Voltage (Minimum): 100 Volts
- AC Voltage (Maximum): 240 Volts
- Panel Surface Treatment: Anti-glare type (Haze 25%)
- Tilting angle: 0 - 20 degrees forward/backward with landscape/portrait setting
- Bezel width (mm): 14.9 mm (0.59 inch) (T/R/L/B)
- Viewing angle [(T/B)/(L/R)]: 178°/178° (CR>10)
- Effective display area (W x H) (mm): 1649.6 x 927.9 mm(64.94 x 36.53 inch)
- Terminals:HDMI IN: TYPE A Connector x 3 (HDCP2.2 supported)
- Terminals:PC IN/AUDIO IN (L/R): Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1
- Terminals:Serial: D-sub 9-pin x 1, RS232C Compatible
- Terminals:AUDIO OUT: Stereo Mini Jack (M3) x 1
- Terminals:LAN: RJ45 x 1, RJ45 10BASE-T/100BASE-TX
- Terminals:USB: Type A: DC 5 V/1 A (USB 3.0 is supported),Type A: DC 5 V/2 A (USB 2.0 is supported (TBD)),Type C: (USB2.0 is supported), DP Alt mode compatible (TBD)
- Terminals:Slot: SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A
- Display Size: 6.21 ft
Warranty Information
1 Year Parts & Labor Manufacture Warranty
