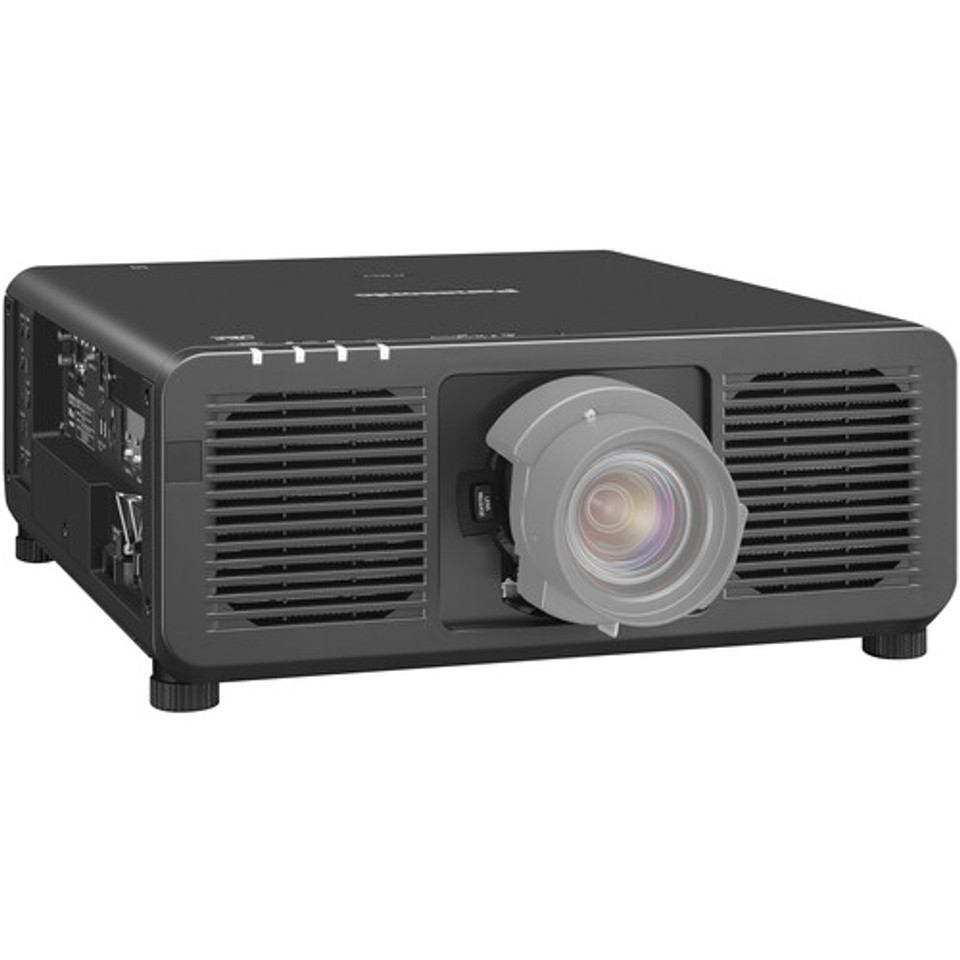

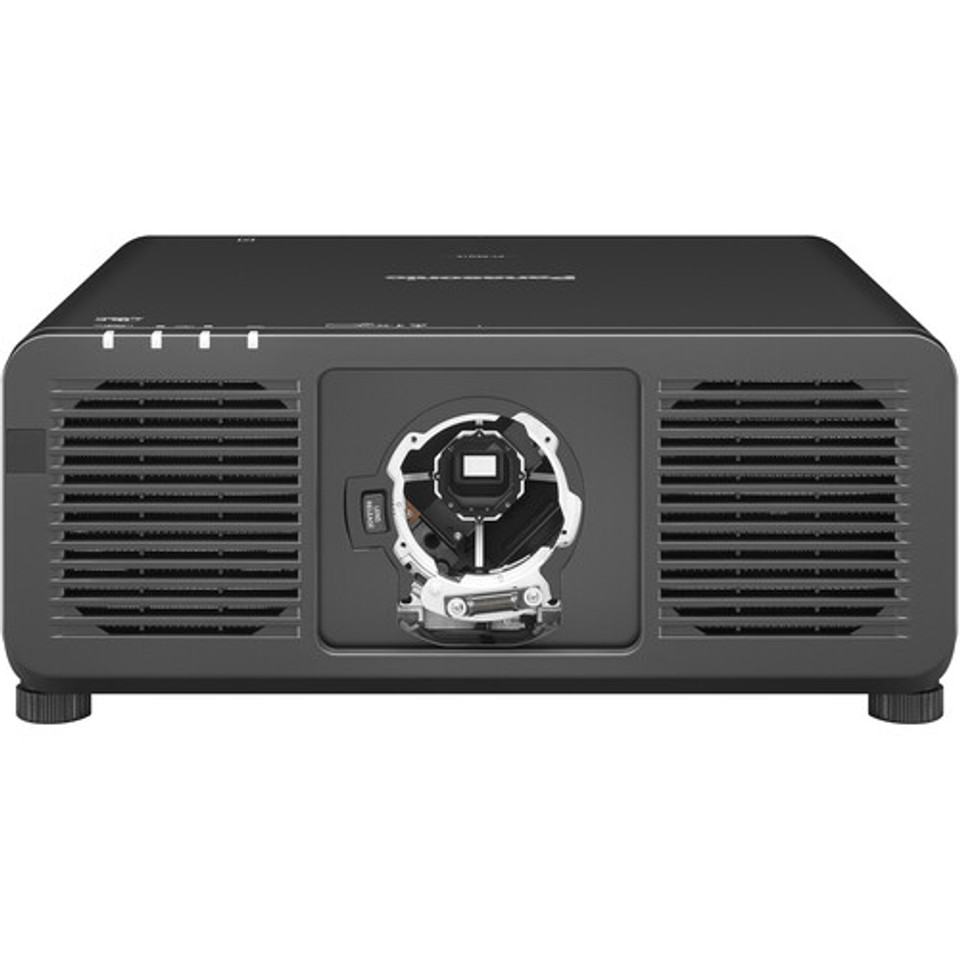

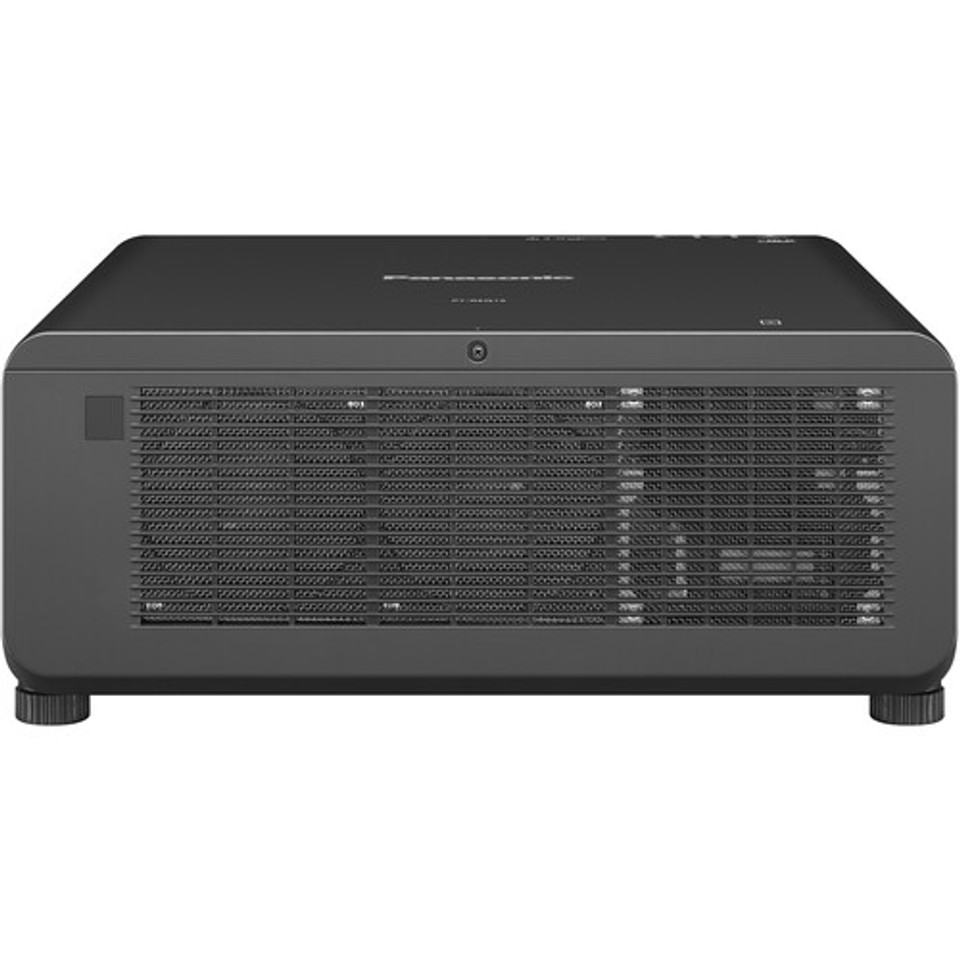

Panasonic PT-REZ15BU 15,000-Lumen WUXGA Laser DLP Projector (Black)

Panasonic

(No reviews yet) Write a Review
$42,997.97
SKU:
PT-REZ15BU7
UPC:
885170428911
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

Panasonic PT-REZ15 Overview

Experience dynamic visuals and professional reliability with the PT-REZ15BU Laser DLP Projector in black from Panasonic. Featuring a brightness of 15,000 ISO lumens, standard-throw lens, and WUXGA resolution, the PT-REZ15BU is ideal for demanding commercial applications, like museums and small to midsize entertainment venues.

Connect devices via HDMI and DisplayPort with support for 4K HDR and HDCP 2.3. It is LAN and RS-232 controllable and compatible with many popular 3rd party functions, such as Crestron Connected, AMX DD, and PJ Link. It can be installed in any orientation to cover a wide range of uses and tricky installations.

Enhanced Function and Contrast
The REZ15 Series projectors work with Panasonic's ET-SWR10 Real-Time Tracking Projection-Mapping System. The Rich Color Enhancer ensures accurate red for artwork, while Evolved Dynamic Contrast boosts image realism. Black level settings offer precision point-based border adjustment for arbitrary screen shapes.
Effortless Workflow, Improved Expandability
The PT-REZ15BU responds to complex productions with expanded functions, interfaces, and options that streamline workflow. A new line of lenses improve native contrast, add powered peripheral focus, and expand the lens-shift range. An Intel SDM-specified slot integrates proprietary or third-party function boards to adapt and scale connectivity. The optimized optical engine enables projection at 15,000 lumens on 100-240VAC power for efficient installation without needing electrical construction. Other highlights include custom test patterns, NFC function to prep for network connection without AC power, and preactivated upgrade kits for Geo Pro software.
Professional Reliability
The REZ15 features an optical engine and laser light source module compliant with the IP5X Dust Protected (IEC 60529) standard with all-liquid cooling, enabling up to 20,000 hours of maintenance-free projection. To prevent interruptions, Backup Input switches to a secondary signal without screen-blanking if the primary is disrupted, while a Multi Laser Drive Engine prevents brightness loss in the unlikely event of diode failure.
NFC Projector Prep
Using a mobile device and NFC technology, you can prepare your projector without it even being powered on. Tap the decal on the PT-REZ15 to use the Smart Projector Control app to adjust settings that can then be applied when the projector is finally set up and powered on. This feature also lets you restore the PT-REZ15 to factory defaults when powered off.

Panasonic PT-REZ15 Specs

Display System
1-Chip 0.80" DLP
Native Resolution
1920 x 1200
Maximum Brightness
15,000 Lumens (ISO)
Throw Ratio
1.36 to 2.10:1 (200" Screen Size @ 24.6' / 7.5 m)
Projection Size
70 to 700" / 1.8 to 17.8 m
HDR Support
Yes, HDR10/Hybrid Log Gamma
Inputs/Outputs
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input
1x USB-A Data, LAN Input
1x USB-A Power Output
1x RJ45 (Ethernet) Control, Data, LAN Input/Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x BNC Control Input
1x BNC Control Output
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x DE-9/DB-9 Remote Input
Light Source
Laser Phosphor
Image Display
Display System
1-Chip 0.80" DLP
Native Resolution
1920 x 1200
Supported Resolutions
Maximum: 3840 x 2400
Maximum Brightness
15,000 Lumens (ISO)
Aspect Ratio
Native: 16:10
Supported: 16:9
Dynamic Contrast Ratio
25,000:1
Lens
Includes Lens
Yes
Focus
Manual Powered
Aperture
f/1.84 to 2.31
Focal Length
23.9 to 37.2mm
Lens Shift
Vertical: ± 60%
Horizontal: ± 29%
Optical Zoom
Powered:
Throw Distance
6.73 to 108.33' / 2.05 to 33.02 m
Throw Ratio
1.36 to 2.10:1 (200" Screen Size @ 24.6' / 7.5 m)
Projection Size
70 to 700" / 1.8 to 17.8 m
Features
Keystone Correction
Manual to Vertical: ± 40°
Manual to Horizontal: ± 40°
HDR Support
Yes, HDR10/Hybrid Log Gamma
Multi-Input Support (PIP/PBP)
Not Specified by Manufacturer
Ceiling Mountable
Yes
Rear Screen Projection
Yes
Built-In Speaker
No
Projection Tilt Option
Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input
1x USB-A Data, LAN Input
1x USB-A Power Output
1x RJ45 (Ethernet) Control, Data, LAN Input/Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x BNC Control Input
1x BNC Control Output
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x DE-9/DB-9 Remote Input
HDCP Support
Yes, Version 2.3
Media/Memory Card Slot
No
Number of Expansion Slots
1
Hardware
Mobile App Compatible
Yes, Adapter Required (Not Included): Android & iOS
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Medium Brightness: 20,000 Hours
Low Brightness: 24,000 Hours
Security
Cable Lock Slot
Password Protection
Input Power
100 to 240 VAC, 50 / 60 Hz
Operating Conditions
32 to 113°F / 0 to 45°C at 10 to 80% Humidity
Dimensions (W x H x D)
19.6 x 8.3 x 25.5" / 498.0 x 212.0 x 648.0 mm (with Lens and Feet)
19.6 x 7.7 x 21.2" / 498.0 x 196.0 x 538.0 mm (without Lens and Feet)
Weight
59.5 lb / 27 kg
