Product Overview

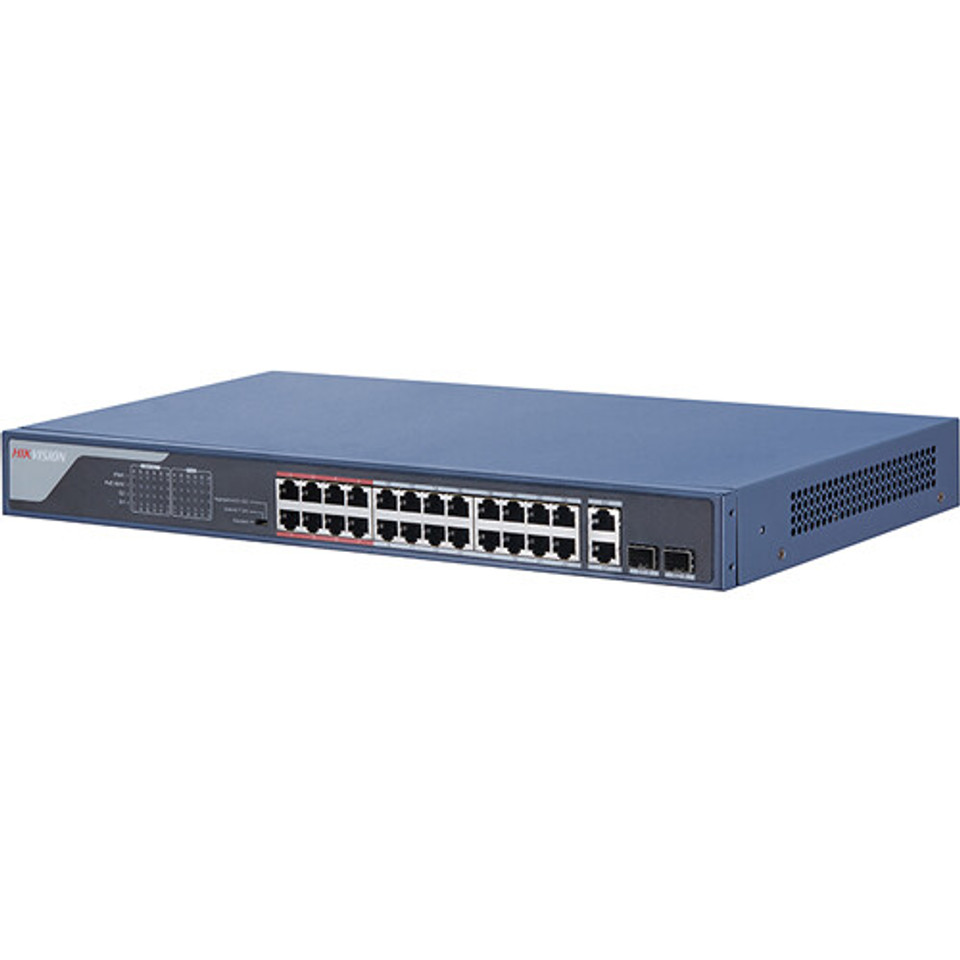

Deploy, monitor, and expand your surveillance system with the DS-3E1326P-EI Smart Managed 24-Port PoE Switch from Hikvision. Designed for businesses big and small, this switch gives you the ability to install and operate security cameras around your property.
Sporting 24 100 Mb/s IEEE 802.3at/af PoE ports with a total budget of 370W, you can connect a multitude of at/af cameras at ranges up to 980 feet for optimal coverage. Dual Gigabit Combo ports support SFP fiber optic connections, allowing you to expand your system further. Each PoE port provides 6kV surge protection, keeping your connected cameras protected from damage caused by electrical fluctuations. When set up, you can view network topology, monitor the health of your network, and receive device alarms in real time.
- Effectively increases available bandwidth on your network
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Features 24 networking ports to establish large network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Management capability allows maximum efficiency and with unrestricted control
- Featuring Fast Ethernet ports to speed up the transfer rate up to 100mb/sec of large files and digital assets across your network
- Twisted Pair media support ensures maximum convenience and great usability
- Visualized Topology Management
- Built-in power supply to ensure all components are being supplied with accurate voltage
Specification
Network Parameters
Port Number 24 x 100 Mbps PoE RJ-45 ports, and 2 x gigabit combos
Port Type RJ-45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding Mode Store-and-forward switching
Working Mode Standard mode (default), Extend mode
High Priority Ports Ports 1 to 8
Long-Distance Transmission Ports Ports 1 to 24
MAC Address Table 16 K
Switching Capacity 8.8 Gbps
Packet Forwarding Rate 6.5472 Mpps
Internal Cache 4 Mbits
PoE Power Supply
PoE Standard Ports 1 to 24: IEEE 802.3af, IEEE 802.3at
PoE Power Pin Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously
PoE Port Ports 1 to 24
Maximum Port Power 30 W
PoE Power Budget 370 W
Software Function
Device Maintenance Remote upgrade, recover default parameters, view logs, configure basic network parameters
Typology Display Supported
Port Configuration Rate, flow control, and switch configuration
PoE Function IEEE 802.3at/af device provides power supply
VIP Ports Function Data of ports in red area forwarded in priority
Link Aggregation G1, G2 port static link aggregation
Device Status Alarm Device status, PoE_MAX and PoE status alarm
Network Management Supports client management
Port Statistics Port transmitting/receiving real-time rate statistics, 7-day transmitting/receiving peak rate statistics
General
Shell Metal material
Net Weight 2.83 kg (6.24 lb)
Dimension (L × H × D) 440 mm × 44 mm × 221 mm (4.76" × 3.47" × 1.09")
Operating Temperature -10° to 55° C (14° to 131° F)
Storage temperature -40° to 85° C (-40° to 185° F)
Operating Humidity 5% to 95% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Power Supply 100–240 VAC, 50/60Hz, maximum 6.5 A
Maximum Power Consumption 400 W
Power Source 400 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN
55024: 2010 +A1: 2015); RCM(AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 +
Am 2:2013)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)No 1907/2006)
