Product Overview

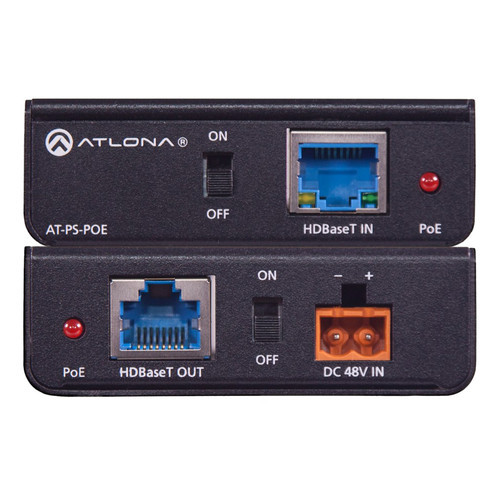

Atlona AT-PS Overview
he Atlona AT-PS-POE is a 48 VDC mid-span power injector designed to send remote power to HDBaseT products that operate on IEEE 802.03af Power over Ethernet. When placed within an HDBaseT transmission line, it allows two PoE-powered products to work together. The power supply features two power switches to selectively send power up- or down-stream. Both power streams can operate simultaneously. With a bandwidth of 10.2 Gbps, the power supply supports 4K/UHD resolutions, multi-channel audio formats, and offers full 3-D pass-through and passes all HDCP signals. The AT-PS-POE is housed in a compact enclosure and can be conveniently placed anywhere between the transmitter and receiver to provide power for PoE-powered devices.
Power Source Equipment (PSE) devices have an internal power supply or plug into external power supply and provide power to the HDBaseT cable. Powered Devices (PD) receive their power from the HDBaseT cable. Atlona offers HDBaseT product series that route remote power in two directions: The HDVS Series powers from the receiving end while the UHD-EX Series powers from the transmitting end.
- Power supply for remote powering for powered devices on HDBaseT transmission lines
- Mid-span power supply
- Power switches for incoming and outgoing line
- Supports 4K/UHD signals
- Upgrade for PoCc systems
- Low-profile, discreet enclosure
Atlona AT-PS Specs
| Device Type |
PoE injector - external
|
| Power Over Ethernet (PoE) |
PoE (IEEE 802.3af)
|
| Input Voltage |
AC 100-240 V
|
| Frequency Required |
50/60 Hz
|
| Power Consumption Operational |
15.2 Watt
|
| Power Output Connectors Details |
1 x RJ-45
|
| Output Voltage |
DC 48 V
|
| Max Electric Current |
0.83 A
|
| Interfaces |
1 x LAN - RJ-45
|
| Included Accessories |
Mounting kit
|
| Features |
VESA interface support, HDCP Compliant
|
| Compliant Standards |
IEEE 802.3af, HDCP 2.2 CCC, FCC, RoHS, cULus, CEC, RCM
|
| Service & Support |
Limited warranty - 10 years
|
| Min Operating Temperature |
32 °F
|
| Max Operating Temperature |
122 °F
|
| Humidity Range Operating |
20 - 90% (non-condensing)
|
| Width |
2.9 in
|
| Depth |
2.8 in
|
| Height |
1 in
|
| Weight |
6.7 oz
|
