Product Overview

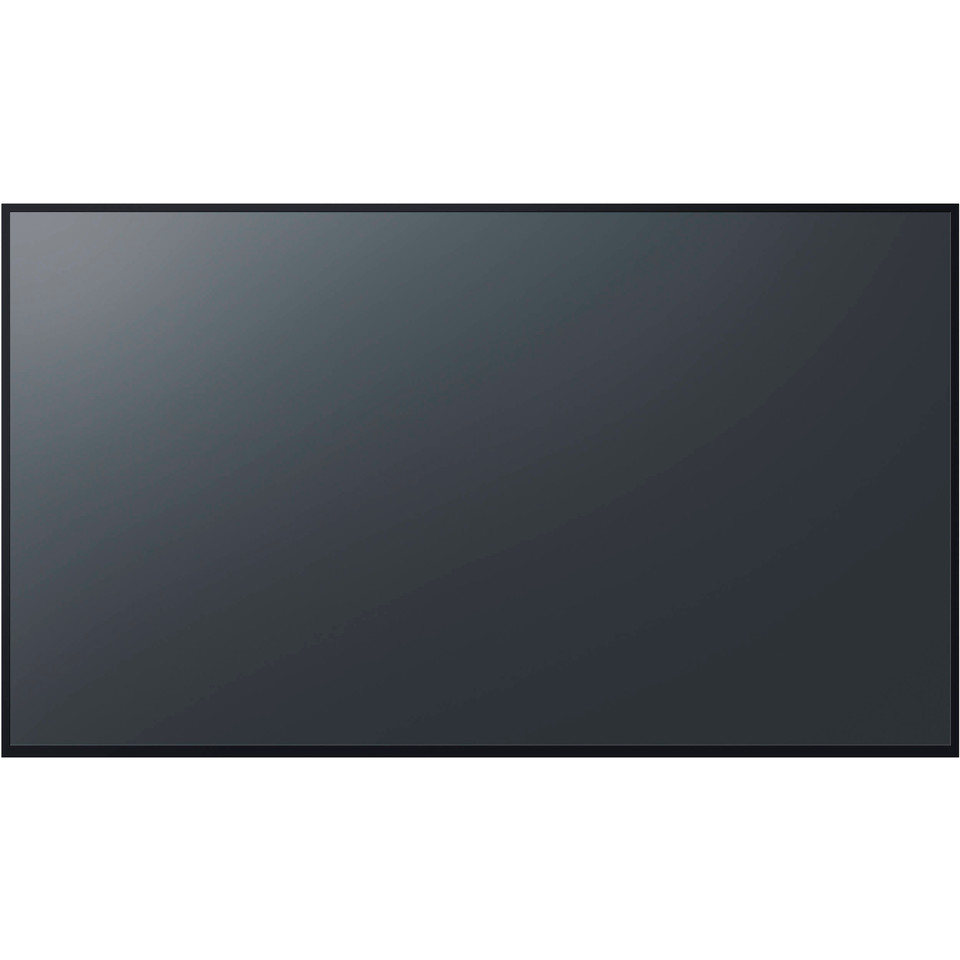

Immerse yourself in unparalleled visual excellence with the TH-50SQ2HW, boasting ultra-high resolution 4K displays that shine with a brilliant 700 cd/m², ensuring robust visibility even in the brightest conditions. Designed for optimal viewing experiences, these panels are crafted to mitigate glare from light sources and ambient light, effectively reducing reflections and enhancing clarity.
Enhanced Visibility in Any Environment: Step into a new realm of visibility—these displays excel even in well-lit areas, making them ideal for classrooms, conference rooms, and vibrant in-store digital signage. Whether positioned next to a window or under direct sunlight, the TH-50SQ2HW ensures your content remains clear and impactful.
Versatile Display Orientation: Adapt to your content with ease. The displays can be effortlessly rotated to support vertical-oriented content, providing flexibility in showcasing information. Tilt the displays forward or backward to achieve the perfect viewing angle, catering to diverse audience preferences.
Reliability Beyond Expectations: With constant 24-hour uptime, the TH-50SQ2HW offers peace of mind for extended display operation. Whether running displays in educational institutions, corporate settings, or public spaces, you can trust in the reliability and durability of these displays.
Multifaceted Connectivity: Experience versatility with a range of interfaces, including USB Type C with DP Alt mode and power delivery of up to 60 W. The Intel Smart Display Module (Intel SDM) specification slot standard expands the range of use cases, allowing seamless integration with various PC boards or interface boards.
Effortless Content Display: Say goodbye to external speakers—the TH-50SQ2HW is equipped with 20 W (10 W + 10 W) built-in speakers, delivering rich audio quality to complement the stunning visuals. The USB media player functionality enables easy display of 4K content, simplifying your setup and enhancing user convenience.
Elevate your visual communication with the TH-50SQ2HW, where cutting-edge technology meets intuitive design. Imbued with advanced features and reliability, these displays redefine the standard for immersive and impactful content delivery in any setting.
Specification
DISPLAY PANEL
Screen Size (Diagonal) 49.5-inch (1257.3 mm)
Panel type / Backlight VA / Direct-LED
Aspect ratio 16:9
Effective Display Area (W x H) 1095.8 x 616.4 mm (43.14" x 24.26")
Resolution (H ｘ V) 3840 x 2160
Brightness (Typ) 700 cd/m2
Contrast Ratio (Typ) 4000:1
Dynamic Contrast Ratio 50000:1
Max. Display Colors Approx. 1.06 Billion
Response Time (Typ) 8.0 ms
Viewing Angle (Horizontal / Vertical) 178° / 178° (CR>10)
Panel Life Time1
(Typ) Approx. 50000 hours
Panel Surface Treatment Anti-glare type (Haze 25%)
CONNECTION TERMINAL
HDMITM IN HDMITM Type A Connector x 3 Linear PCM (Sampling frequency：48 kHz/44.1 kHz/32 kHz)
Compatible with HDCP 2.2
PC IN Mini D-Sub 15-pin (DDC2B) x 1 Y/G : with sync 1.0 V [p-p] (75 Ω)
: without sync 0.7 V [p-p] (75 Ω)
PB/CB/B : without sync 0.7 V [p-p] (75 Ω)
PR/CR/R : without sync 0.7 V [p-p] (75 Ω)
HD/VD : TTL (high impedance)
SERIAL IN D-sub 9pin x 1, RS-232C Compatible
IR IN / OUT Stereo Mini Jack (Φ3.5 mm) x 1 / x 1
AUDIO IN Stereo Mini Jack (Φ3.5 mm) x 1
(Shared video input except USB and MEMORY VIEWER)
0.5 V [rms]
AUDIO OUT Stereo Mini Jack (Φ3.5 mm) x 1
Variable (- ∞ - 0 dB) (1 kHz 0 dB Input,10 kΩ Load)
0.5 V [rms]
LAN RJ45 x 1 compatible with PJLinkTM RJ45 10BASE10-T/100BASE-TX
USB USB Type A Connector x 1 (DC 5 V / 1 A, USB 3.0 is supported)
USB Type A Connector x 1 (DC 5 V / 2 A, USB 2.0 is supported)
USB Type C Connector x 1 (Max 60 W Power Delivery compatible, USB2.0 is supported, DP Alt Mode compatible)
SENSOR 4-pole sub-mini Jack (Φ2.5 mm) x 1
Function slot Intel® SDM specification
Corresponding size SDM-S / SDM-L, Supply power 3.3 V / 1.1 A, 12 V / 5.5 A
AUDIO
Built in Speaker 20W [10 W ＋ 10 W]
ELECTRICAL
Power Requirements AC110-240 V 50 Hz / 60 Hz 2.8-1.4 A
Power Consumption 125 W (Shipping Condition)
On Mode Average Power Consumption1 114 W (Picture Mode: [Standard])
Power Off Condition Approx. 0.3 W
Stand-by Condition Approx. 0.5
MECHANICAL
Dimension (W x H x D) 1129 x 649 x 66 mm (44.43" x 25.56" x 2.60")
Weight 15.5 kg (34.02 lbs)
Carton Dimensions (W x H x D) 1230 x 800 x 142 mm (48.43" x 31.50" x 5.60")
Gross Weight 21kg (46.3 lbs)
Cabinet Material Bezel: Metal, Back: Plastic
Bezel Color Black
Bezel Width T/R/L/B 14.9 mm (0.59")
Pitch for Wall-Hanging VESA Compliant 400 x 400 mm (15.8" x 15.8") (Installed by: M6 screws / Screw hole depth 20 mｍ (0.79"))
INSTALLATION
Orientation Landscape / Portrait
Tilting Angle Landscape : 0 - 20 degrees forward / backward Portrait : 0 - 20 degrees forward / backward
COMPATIBLE SOFTWARE
Multi Monitoring & Control Software
(Early Warning Software)
compatible Ver. 3.3
Yes
Video Wall Manager compatible
Ver. 1.15 Yes
Content management Software
compatible Ver. 4.0.1 Yes
Screen Transfer Compatible Ver. 3.0.0 Yes
STANDARD (CERTIFICATIONS)
SAFETY REGULATIONS IEC 62368-1:2014
IEC 62368-1:2018
UL 62368-1:2019
CSA C22.2 NO. 62368-1:19
EN 62368-1:2014
AS/NZS 62368-1:2022
RADIATION
REGULATIONS
FCC CFR 47, Part 15, Subpart B 2015 Class A
ANSI C63.4-2014
ICES-003 Issue7:2020
EN 55032: 2015
EN 55035: 2017
AS/NZS CISPR32:2015
REMOTE CONTROL TRANSMITTER
Power Requirements DC 3 V (AAA Size batteries x 2)
Operating distance Approx. 7m1
(23ft)
Weight Approx. 63g (2.3oz) ncluding batteries
Dimemsions (W x H x D) 48 x 134 x 20 mm (1.9" x 5.3" x 0.8")
