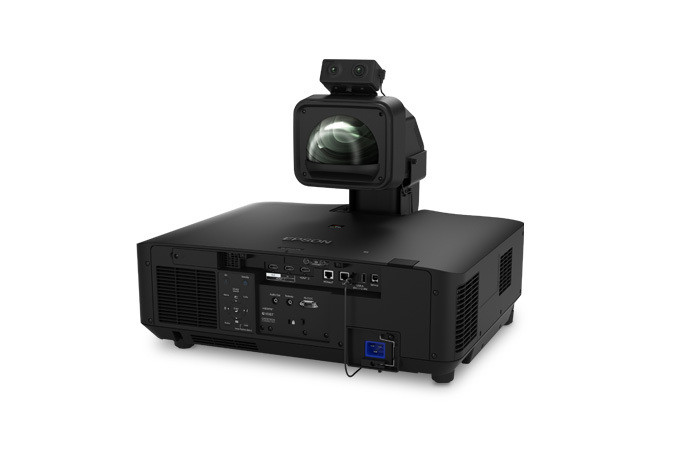

EB-PQ2213B 13,000-Lumen 4K 3LCD Laser Projector

Epson
Condition:
New
$37,899.99
Shipping:
Free Shipping
(No reviews yet) Write a Review
SKU:
V11HB03820
UPC:
010343987180
MPN:
V11HB03820
Availability:
In stock, ship same-day or until 48 Hrs
  • EB-PQ2213B 13,000-Lumen 4K 3LCD Laser Projector
  • EB-PQ2213B 13,000-Lumen 4K 3LCD Laser Projector
  • EB-PQ2213B 13,000-Lumen 4K 3LCD Laser Projector
  • EB-PQ2213B 13,000-Lumen 4K 3LCD Laser Projector
  • EB-PQ2213B 13,000-Lumen 4K 3LCD Laser Projector
  • EB-PQ2213B 13,000-Lumen 4K 3LCD Laser Projector
  • EB-PQ2213B 13,000-Lumen 4K 3LCD Laser Projector
  • EB-PQ2213B 13,000-Lumen 4K 3LCD Laser Projector
  • EB-PQ2213B 13,000-Lumen 4K 3LCD Laser Projector

Description

Compact, premium large venue 4K projector.



Leveraging our 4K Crystal Motion technology, thermo-control panel and double micro-lens array, the EB-PQ2213B laser projector delivers stunning 4K resolution on-screen. With 13,000 lumens of color and white brightness1, the EB-PQ2213B produces captivating visuals in extraordinary detail. And a high native contrast ratio and 3-chip 3LCD technology means you will enjoy a realistic display enriched with vibrant colors and deep blacks.

Designed for fixed installation applications and to meet the rigorous demands of live events, the EB-PQ2213B features a filterless cabinet, IP5X-rated hermetically sealed optical and light source unit, and a virtually maintenance-free 20,000-hour laser light source2. The projector provides frame interpolation for fast-moving objects, as well as HDR support3 and scene adaptive gamma correction for lifelike images. The EB-PQ2213B pairs with 10 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality4, and an optional attachable PixAlign™ camera to streamline multi-projector setups.

  • 13,000 lumens of equal white and color brightness1
  • 4K Crystal Motion technology
  • Virtually maintenance-free 20,000-hour laser light source2
  • High native contrast for a realistic display
  • 10 optional powered lenses (sold separately)
Incredible color
Epson® 3-chip 3LCD technology produces 13,000 lumens of equal white and color brightness1

4K resolution on-screen
leverages Epson’s 4K Crystal Motion technology, thermo-controlled panel and double micro-lens array for crystal clear image quality that fully realizes 4K resolution (3840 x 2160)

Robust, high-reliability design
virtually maintenance-free 20,000-hour laser light source2; IP5X-rated hermetically sealed optical and light source module for high dust resistance; filterless cabinet; optimized liquid cooling system

Stunning image quality
high native contrast ratio for deep blacks; 50 percent improvement over the already high contrast ratio found with the current Epson EB-PU Series; frame interpolation for fast moving objects; HDR support3 and scene adaptive gamma correction 

Simplified installation
10 optional powered lenses (sold separately) including ultra short throw .35 throw lens with a unique zero offset design for installation flexibility; projector compatible with existing Epson lens family

Enhanced connectivity
HDMI® two in and one out; 12G-SDI in/out for daisy chaining and signal monitoring; features automatic input switching when input signal is disrupted
  • Low latency performance and high frame rate support — high-speed graphics chip and panel drive technology enable high frame rate 4K playback
  • Optional attachable PixAlign external camera — access powerful automated tools including edge blending assist5, stacking assist function5, auto color calibration6 and screen matching6 with or without a connected PC and router
  • Efficient setup and management — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT app)7; easily manage your installed inventory using Epson Projector Management – Connected (EPM-C)8 from any device with a Web browser
  • NFC function built-in4 — reduce installation time of multiple projectors; read and write setting information using Epson’s mobile app
  • Mechanical shutter — protects projector from damage during laser light shows

Eco Features

  • RoHS compliant
  • End-of-life options available9
  • Epson America, Inc. is a SmartWay® Transport Partner10

What's In The Box:

  • EB-PQ2213B projector
  • power cable
  • remote control with 2 batteries
  • cable cover
  • quick reference guide
  • warranty sheet

Specifications
Projection System High-aperture Epson 3-chip 3LCD
technology
Projection Method Front/rear/ceiling mount
Driving Method Poly-Silicon TFT Active Matrix
Pixel Number 2,073,600 pixels (1920 x 1080) x 3 chips
Signal Input Maximum Display Resolution: 4096 x 2160
pixels (resizing display)
Native Resolution 1080p with 4K Crystal Motion
(1920 x 1080 x 4)
Resolution on Screen 4K UHD (3840 x 2160)
Aspect Ratio Supports 4:3, 16:10, 16:9*, 21:9*
* With vertical image shift control within letterbox area.
Pixel Arrangement Cross stripe
Color Brightness1 Color Light Output: 13,000 lumens
White Brightness1 White Light Output: 13,000 lumens
Contrast Ratio Up to 5,000,000:1 (Dynamic Contrast: On)
Brightness Uniformity (Typical) 85%
Color Reproduction Up to 1.07 billion colors
Keystone Correction Vertical: ±45 degrees;
Horizontal: ±30 degrees
Illumination Technology Laser Phosphor
Light Source Life2
20,000 hours (Normal Mode)
30,000 hours (Extended Mode)


Projection Lens (Standard)
Visit www.epson.com for information on optional lenses.
Standard Lens ELPLM15 (sold separately)
Type Powered shift/focus/zoom
F-Number 2.0 – 2.1
Focal Length 14.8 mm – 17.7 mm
Zoom Ratio Optical Zoom: 1.0 – 1.6
Throw Ratio Range 1.52 – 2.47
Lens Shift Vertical: ±60%; Horizontal: ±18%


Other Features
Operating Temperature 32 ˚F to 122 ˚F (0 ˚C to 50 ˚C)
Power Supply Voltage 100 V – 240 V AC ±10%, 50 Hz – 60 Hz
Power Consumption
951 W (Normal/Custom)
680 W (Quiet/Extended)
2.0 W Standby (Network Standby)
0.4 W Standby (Energy Saving)
Fan Noise 37 dB (Normal Mode); 34 dB (Eco Mode)
IP Rating IPSX9
Security Security cable hole, lens lock, Kensington®
lock provision, wireless LAN unit lock


Video I/O
Input Signal Input Video Signal (HDMI and HDBaseT® ports)
480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/
4096 x 2160
Auto Power On Signal Detection on HDMI/Plug-In Detection
(HDMI)
Sleep Mode Yes (with timer)
HDMI CEC Control Yes


Dimensions (W x D x H)
Excluding Feet 23.1" x 19.4" x 7.3"
(586 mm x 492 mm x 185 mm)
Weight 63.4 lb (28.8 kg)


Remote Control
Features Power, Source Search Selection, Lens Shift/Zoom/
Focus, Test Pattern Selection, Shutter, Freeze, ID, Color Mode,
Number, E-Zoom, Volume, Menu, Enter, ESC, Pointer Functions,
Blend Guides, Multi-Projection, Color Tone Adjust and Memory
Operating Angle
Front: Right/Left: 60 to +60; Upper/Lower: +30 to 30 degrees
Rear: Right/Left: 30 to +30; Upper/Lower: +40 to +5 degrees
Operating Distance 98 ft


Eco Features
RoHS compliant
End-of-life options available10
Epson America, Inc. is a SmartWay® Transport Partner11
Limited Warranty and Service
Warranty Three-year limited in the U.S. and Canada
Service Toll-free telephone support, Monday through Friday
Epson ConnectionSM
Pre-Sales Support (U.S. and Canada): 800-463-7766
Website: www.epson.com


Epson PreferredSM Plus Extended Service Plan
3-Year Upgrade to Next-Business-Day Whole Unit
Exchange12 for Years 1-3 EPPPRJPQ3
5-Years Next-Business-Day Whole Unit Exchange12
for Years 1-5 EPPPRJPQE5
Other extended service plans may be available.


What’s Included
EB-PQ2213B projector, power cable, remote control with 2
batteries, cable cover, quick reference guide and warranty sheet


Ordering Information
EB-PQ2213B V11HB03820
Ultra Short Throw Lens (ELPLX02S) V12H004X0B
Ultra Short Throw Lens – White (ELPLX02WS) V12H004Y0B
Short Throw #1 Zoom Lens (ELPLU03S) V12H004UA3
Short Throw #2 Zoom Lens (ELPLU04) V12H004U04
Wide Throw #1 Zoom Lens (ELPLW05) V12H004W05
Wide Throw #2 Zoom Lens (ELPLW06) V12H004W06
Wide Throw #3 Zoom Lens (ELPLW08) V12H004W08
Middle Throw #2 Zoom Lens (ELPLM15) V12H004M0F
Middle Throw #3 Zoom Lens (ELPLM10) V12H004M0A
Middle Throw #4 Zoom Lens (ELPLM11) V12H004M0B
Long Throw Zoom Lens (ELPLL08) V12H004L08
Rigging Frame (ELPMB59) V12H996A01
Stacking Frame (ELPMB84) V12H006AW0
Mounting Tilt Plate (ELPMB77) V12H006AP0
Wireless LAN Module (ELPAP11) V12H005A02
Projector Ceiling Mount (ELPMB67) V12HA54010
Fine Adjust Ceiling Mount (ELPMB68) V12H006AE0
PixAlign Camera (ELPEC01) V12HA46010


Interfaces
12G-SDI In/Out
HDMI (HDCP 2.3) x 2/HDMI Out x 1
HDBaseT x 1
Variable Audio Out: Mini Stereo x 1
USB Type-B x 1
USB Type-A x 2 (5 V, 2.0 A)
USB Type-A for Wireless LAN (optional)
Serial: RS-232c x 1 (9

View AllClose

Warranty Information

Warranty Three-year limited in the U.S. and Canada Service Toll-free telephone support, Monday through Friday
