Product Overview
Key Features
- Brightness of 4000 Lumens
- WUXGA (1920 x 1200) Native Resolution
- Ultra-Short 0.22 to 0.37:1 Throw Ratio
- VGA, Composite Video, 3x HDMI Inputs
- VGA Output for Loop-Through
- Analog Audio Input and Output
- Compatible with SMART Notebook System
- Built-In 16-Watt Speaker
- Ethernet and RS-232 Controllable
- Wall Mount & 2 Interactive Pens Included
Epson 710Ui Overview

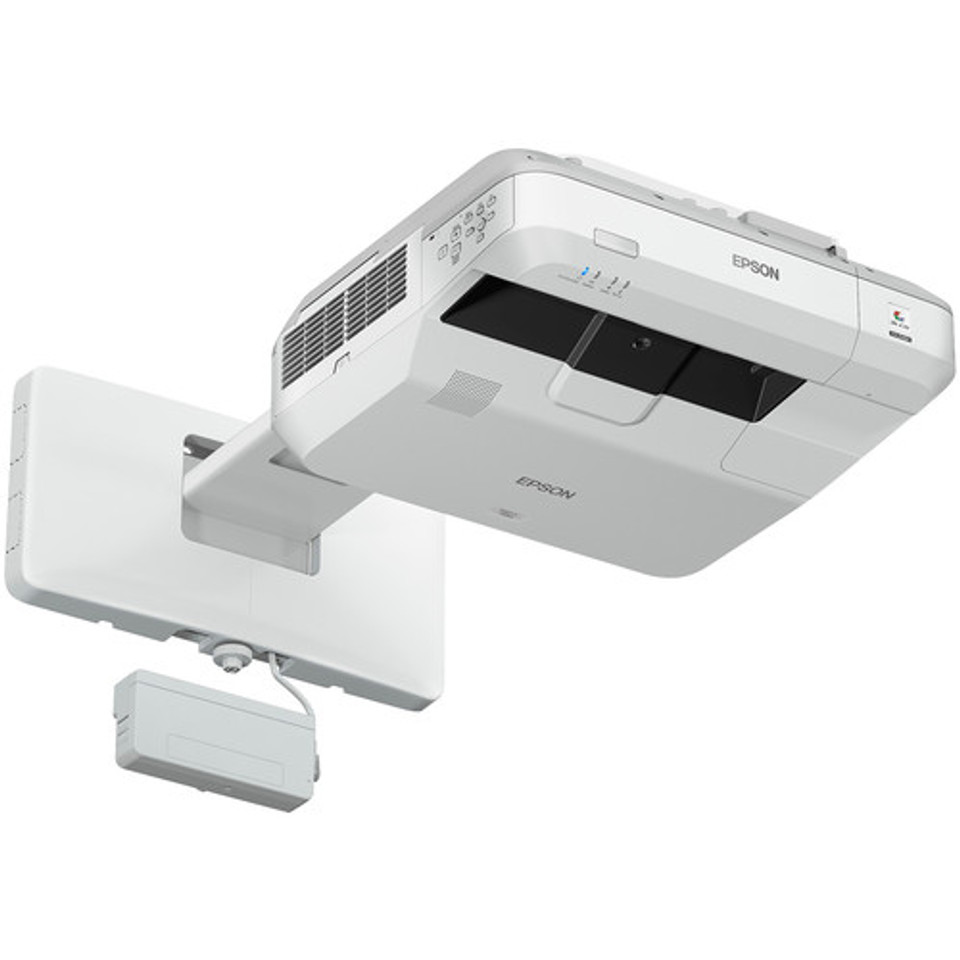

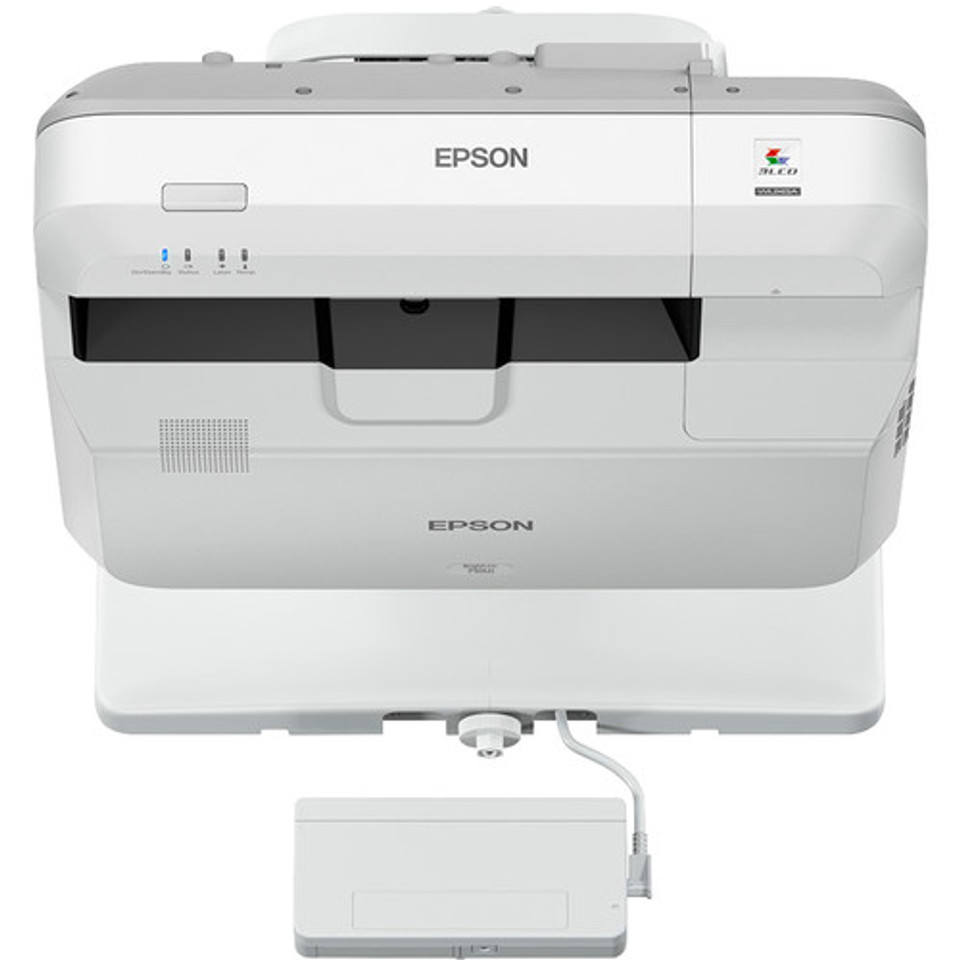

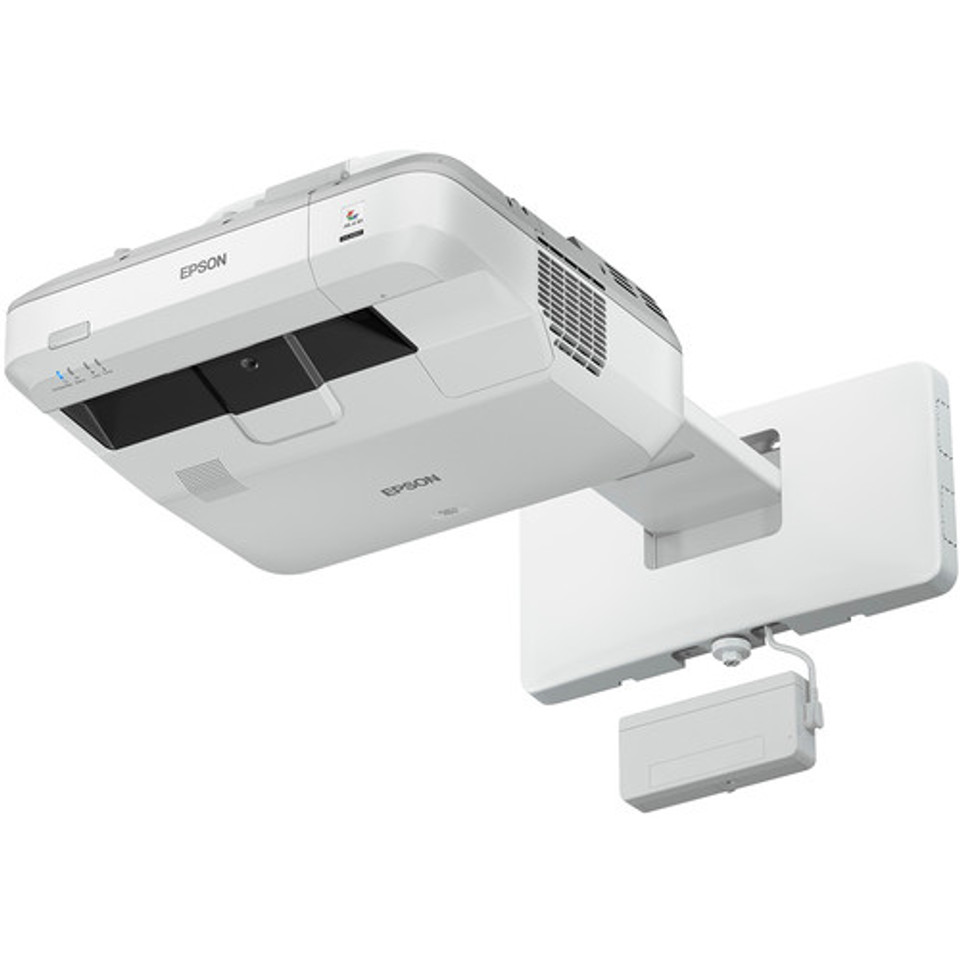

Enjoy out-of-the-box interactivity with the Epson BrightLink 710Ui 4000-Lumen WUXGA Ultra-Short Throw 3LCD Laser Interactive Projector. It includes an interactive module and two interactive pens and supports interactivity with up to eight users at once. It features support for wireless sharing to and from the projector for up to 50 compatible devices with an optional wireless module. Its 4000 lumens of brightness and 2,500,000:1 dynamic contrast ratio help images remain clear and detailed in well-lit rooms.

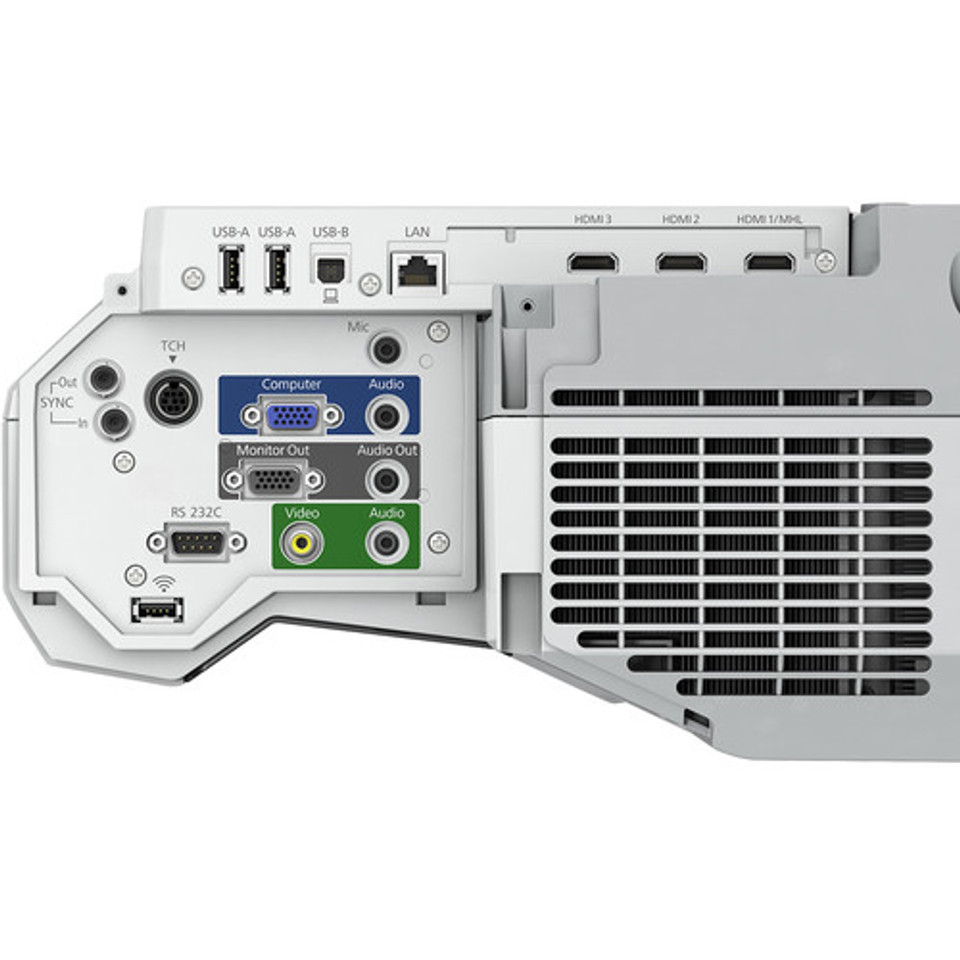

The BrightLink 710Ui sports an ultra-short 0.22 to 0.37:1 throw ratio (for 16:10) to virtually eliminate on-screen shadows and minimize the risk of shining in a presenter's eyes. It has VGA, composite video, and three HDMI inputs to support a variety of source types. One HDMI input is MHL-compatible for wired mirroring of your compatible smartphone or tablet. The projector also includes a wall mount for instant installation.
- Designed for accurate, vivid color, even in well-lit rooms with up to 4000 lumens of color and white brightness
- Laser light source provides up to 20,000 hours of virtually maintenance-free operation, enhanced image contrast, and instant on/off
- Full HD / WUXGA images up to 100" diagonal for augmented readability from nearly anywhere in the room, with double the interactive space of a 70" display
- Pen- and touch-based interactivity allows up to eight users to draw, share, and collaborate at once, with six points of touch plus two pens
- Two-way content sharing allows teachers to push content from the projector to wirelessly connected devices and to control which device screens to display; students can make notes and send their work back to the projector
- Designed for seamless integration with popular curriculum software, the BrightLink 710Ui includes a 1-year subscription to and support for SMART Notebook
- DuoLink allows you to install two BrightLink displays side-by-side to create one seamless interactive up to 177" diagonal
- The 3-chip design helps enhance color brightness and broaden the available color gamut
- With an optional wireless module and Epson iProjection, you can connect up to 50 Chromebook, Mac, Windows, iOS, and Android devices and simultaneously display up to four screens
Epson 710Ui Specs
Image Display
| Display System | 3-Chip Polysilicon TFT LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Maximum Brightness | 4000 Lumens |
| Aspect Ratio | Native: 16:10 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
Lens
| Focus | Manual |
| Lens | f/1.6 (f = 4.2 mm) |
| Optical Zoom | None |
| Throw Ratio | 0.22 to 0.44:1 |
| Projection Size | 70.4 - 100" / 178.82 - 254.00 cm |
Features
| Keystone Correction | Manual-Horizontal: ± 3° Manual-Vertical: ± 3° |
| Digital Zoom | 1.35x |
| Ceiling Mountable | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16W |
Input/Output Connectors
| Memory Card Slot | None |
| Wireless LAN / Wi-Fi | No, Optional Adapter Available |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours |
| Fan Noise | Full Brightness: 38 dB Low Brightness: 27 dB |
| Security | Cable Lock Slot Password Protection Security Bar |
| Power Consumption | Full Brightness: 448 W Low Brightness: 348 W Standby Mode (Lamp Off): 2 W |
| Dimensions (W x H x D) | 19.5 x 6.8 x 17.3" / 49.5 x 17.3 x 43.9 cm Projector 0.9 x 6.3 x 0.9" / 2.3 x 16.0 x 2.3 cm Interactive pen |
| Weight (lb) | 24.7 lb |
Packaging Info
| Package Weight | 63.1 lb |
| Box Dimensions (LxWxH) | 31 x 23 x 10" |
