Product Overview

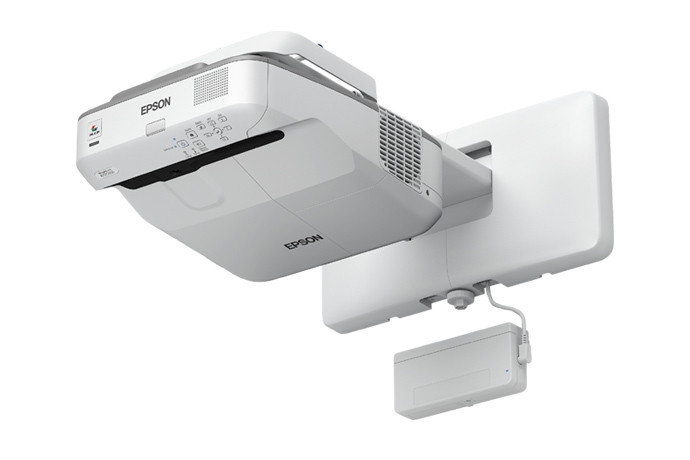

Epson 695WI Overview

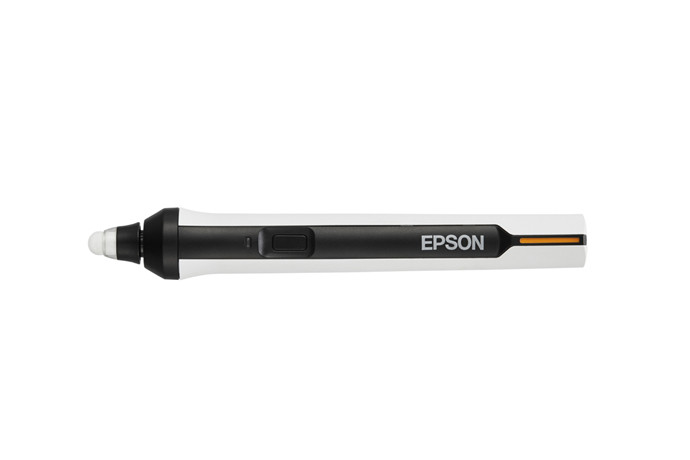

Enjoy out-of-the-box interactivity with the Epson BrightLink 695Wi 3500-Lumen WXGA Ultra-Short Throw 3LCD Interactive Projector. It includes an interactive module and two interactive pens, and supports interactivity with up to two users at once. It features support for wireless sharing to and from the projector for up to 50 compatible devices with an optional wireless module. Its 3500 lumens of brightness and 14,000:1 dynamic contrast ratio help images remain clear and detailed in well-lit rooms.
The BrightLink 695Wi sports an ultra-short 0.28 to 0.45:1 throw ratio to virtually eliminate on-screen shadows and minimize the risk of shining in a presenter's eyes. It has VGA, composite video, and three HDMI inputs to support a variety of source types. One HDMI input is MHL-compatible for wired mirroring of your compatible smartphone or tablet.
- 3500 lumens of color/white brightness with 3LCD technology
- Make nearly any wall or whiteboard interactive; pen-based interactivity allows up to two users to write and draw at once anywhere on the image area
- Simultaneously share and control content from up to four Chromebook, Windows, Mac, iOS, or Android devices at once using Moderator software; up to a total of 50 devices can be connected
- Share images between the big screen and wirelessly connected mobile devices for individualize learning
- Includes a trial subscription of the SMART Learning Suite, which includes SMART Notebook, SMART amp, SMART lab, SMART Learning Suite Online, and more
- Get a 100" image from as little as 11" away with virtually no shadow interference thanks to the ultra-short throw ratio
- Lasts up to 10,000 hours in ECO Mode
- DuoLink allows you to install two BrightLink displays side by side to create one seamless interactive surface
- USB plug-and-play for Windows Vista, 7, 8, and 10, and Mac OS 10.7, 10.8, 10.9, 10.10, 10.11, and 10.12.x
- 850 nm IR interactive technology
- 60 to 100" interactive area
- Up to six points of touch
Epson 695WI Specs
| Display System | 3-Chip Polysilicon TFT LCD |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Maximum Brightness | White: 3500 Lumens Color: 3500 Lumens |
| Aspect Ratio | Native: 16:10 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
| Focus | Manual |
| Lens | f/1.6 (f = 3.7 mm) |
| Optical Zoom | None |
| Throw Ratio | 0.28 to 0.45:1 |
| Projection Size | 53 - 100" / 134.62 - 254.00 cm |
| Keystone Correction | Horizontal: ± 3° Vertical: ± 3° |
| Digital Zoom | 1.35x |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16W |
| Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input 1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Input/Output 1 x Composite (RCA) Video Input 3 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Microphone Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x USB 2.0 (USB Type-A) Audio, Video Input 1 x USB 2.0 (USB Type-B) Audio, Control, Video Input 1 x Ethernet (RJ45) LAN Input/Output 1 x RS-232 (DE-9/DB-9) Control 2 x Proprietary Data Input 1 x Proprietary Data Output |
| Memory Card Slot | None |
| Light Source | Lamp (1 x UHE) |
| Lamp Power | 250 W |
| Expected Lamp Life | Full Brightness: 5000 Hours Low Brightness: 10,000 Hours |
| Fan Noise | Full Brightness: 35 dB Low Brightness: 29 dB |
| Security | Cable Lock Slot Password Protection Security Bar |
| Power Consumption | Full Brightness: 373 W Standby Mode (Lamp Off): 2.2 W |
| Dimensions (W x H x D) | 14.5 x 5.9 x 15.8" / 36.8 x 15.0 x 40.1 cm 6.3 x 0.9 x 0.9" / 16.0 x 2.4 x 2.4 cm Interactive pen |
| Weight (lb) | 12.8 |
| Package Weight | 25 lb |
| Box Dimensions (LxWxH) | 21.1 x 19.2 x 9.9" |
