Epson EB-PU2120W 20,000-Lumen 3LCD Laser Projector with 4K Enhancement

Epson

(No reviews yet) Write a Review
$48,888.98
Epson EB-PU2120W 20,000-Lumen 3LCD Laser Projector with 4K Enhancement
SKU:
EB-PU2120W
UPC:
010343968929
Condition:
New
Availability:
In stock, ship same-day or until 48 Hrs
Shipping:
Free Shipping
Adding to cart… The item has been added

Product Overview

Premium large venue laser projector with 4K enhancement1

Experience the power and flexibility of the EB-PU2120W large venue laser projector. This incredibly compact and energy-efficient2 projector produces ultra bright images up to 20,000 lumens3 using 220 V power and up to 19,000 lumens3 using standard 120 V power to support a wide variety of venues. The EB-PU2120W features WUXGA resolution with 4K Enhancement Technology1 to deliver an exceptionally sharp and detailed display.

The projector uses a 20,000-hour virtually maintenance-free laser light source4, a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation. The EB-PU2120W pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality5, and an optional attachable PixAlign™camera to streamline multi-projector setups.

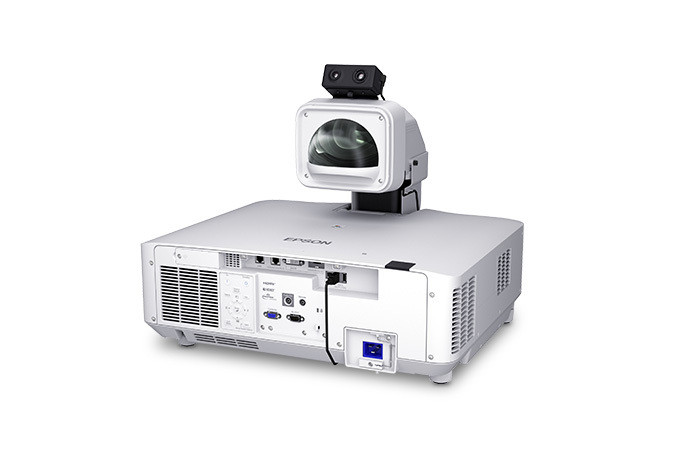

NOTE: compartment shown is space for optional camera

  • Incredibly bright and compact 20,000-lumen projector3
  • WUXGA with 4K Enhancement1
  • 20,000-hour virtually maintenance-free laser light source4
  • 9 optional powered lenses (sold separately
  • 19,000 lumens3 from 120 V; full brightness from 220 V
Incredible Color
Epson 3-chip 3LCD technology produces 13,000 lumens of equal white and color brightness2

WUXGA with 4K Enhancement1
accepts 4K content and delivers up to 4.6 million pixels on-screen for an incredibly crisp and vibrant image

Robust, high-reliability design
virtually maintenance-free 20,000-hour laser light source4; filterless cabinet; optimized liquid cooling system; IP5X-rated hermetically sealed optical and light source module for high dust resistance

Simplified installation
9 optional powered lenses (sold separately), including an ultra short-throw .35 throw lens with unique zero offset design, provide enhanced flexibility and convenience during installation

Installation flexibility
provides full brightness from 220 V power and up to 19,000 lumens3 from a standard 120 V power source

Outstanding image quality
high native contrast ratio produces deep blacks; frame interpolation delivers realistic moving images; HDR support5 and scene adaptive gamma correction for true-to-life images
  • Fast installation — built-in NFC functionality4 and easy-to-use Android™ and iOS® mobile app, Epson Projector Configuration Tool (EPCT)6, to streamline multi-projector installations
  • Optional attachable PixAlignTM camera — provides access to powerful features, including projector stacking assist function7, blending assist7 for edge blends, color calibration8 and screen matching8 from the projector menu or Epson Projector Professional Tool (EPPT) app9
  • Simple Blending and Simple Stacking functions8 — for fast blending or stacking of two projectors using a remote controller instead of conventional setup with a PC and router; requires optional attachable PixAlign camera8
  • Efficient setup and management — control multiple projectors in a single, large space with EPPT app9; easily manage your installed inventory using Epson Projector Management – Connected (EPM-C)10 from any device with a Web browser
  • Built-in media player — remotely update playlists and content with the Epson Projector Content Manager application11
  • Custom brightness and constant brightness modes — helps maximize light source life and provide a consistent brightness level

Eco Features

  • RoHS compliant
  • End-of-life options available12
  • Epson America, Inc. is a SmartWay® Transport Partner13

Better Products for a Better Future™

For more information on Epson's environmental programs, go to eco.epson.com

What's In The Box:

  • EB-PU1008W projector
  • Power cable
  • Remote control with 2 batteries
  • Cable cover
  • Lens connector cap
  • User guide
  • Warranty sheet

Specifications

Projection System High-aperture Epson 3-chip 3LCD
technology
Projection Method Front/rear/ceiling mount
Driving Method Poly-Silicon TFT Active Matrix
Pixel Number 2,304,000 dots (1920 x 1200) x 3
Signal Input Maximum Display Resolution: 4096 x 2160
(resizing display); Display Resolution: 1920 x 1200 pixels
Native Resolution WUXGA with 4K Enhancement2
(1920 x 1200 x 2)
Resolution on Screen WUXGA with 4K Enhancement2
/
4.6 million pixels
Aspect Ratio Supports 4:3, 16:10, 16:9*, 21:9*
* With vertical image shift control within letterbox area
Pixel Arrangement Cross stripe
Color Brightness1 Color Light Output: 20,000 lumens
White Brightness1 White Light Output: 20,000 lumens
Contrast Ratio 2,500,000:1 (Dynamic Contrast: On)
Brightness Uniformity (Typical) 85%
Color Reproduction Up to 1.07 billion colors
Keystone Correction Vertical: ±45 degrees;
Horizontal: ±30 degrees
Illumination Technology Laser Diode


Projection Lens (Standard)
Visit Epson.com for information on optional lenses.
Standard Lens ELPLM15 (sold separately)
Type Powered shift/focus/zoom
F-Number 2.0 – 2.1
Focal Length 14.8 mm – 17.7 mm
Zoom Ratio Optical Zoom: 1.0 – 1.6
Throw Ratio Range 1.57 – 2.56
Lens Shift Vertical: ±60%; Horizontal: ±18%


Other Features
Operating Temperature 32 ËšF to 122 ËšF (0 ËšC to 50 ËšC)
Power Supply Voltage 100 V – 240 V AC ± 10%, 50 Hz – 60 Hz
Power Consumption
1,118 W (Normal/Custom)
791 W (Quiet/Extended)
2.0 W Standby (Network Standby)
0.4 W Standby (Energy Saving)
Fan Noise 38 dB (Normal Mode); 34 dB (ECO)
IP Rating IP5X10
Security Security cable hole, lens lock, Kensington®
lock provision, wireless LAN unit lock


Video I/O
Input Signal Input Video Signal (HDMI®, DVI-D and HDBaseT®
ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/
4096 x 2160
Auto Power On Signal Detection on HDMI/Plug-In Detection
(HDMI, VGA 15-pin)
Sleep Mode Yes (with timer)
HDMI CEC Control Yes


Dimensions (W x D x H)
Including Feet 23.1" x 19.4" x 8.6"
Weight 53.5 lb (24.3 kg)


Remote Control
Features Power, Source Search Selection, Lens Shift/Zoom/
Focus, Test Pattern Selection, A/V Mute, Freeze, User ID, Auto
Aspect, Color Mode, Number, Page Up and Down, E-Zoom,
Volume, Help, Menu, Enter, ESC and Pointer Functions
Operating Angle
Front: Right/Left: 60 to +60; Upper/Lower: +30 to 30 degrees
Rear: Right/Left: 30 to +30; Upper/Lower: +40 to +10 degrees
Operating Distance 98 ft


Eco Features
RoHS compliant
Recyclable product10
Epson America, Inc. is a SmartWay® Transport Partner11

Support
Epson ConnectionSM
Pre-Sales Support (U.S. and Canada): 800-463-7766
Website: www.epson.com




Warranty Information

1 Year Parts & Labor Manufacture Warranty
