Product Overview
Epson 2255U Overview

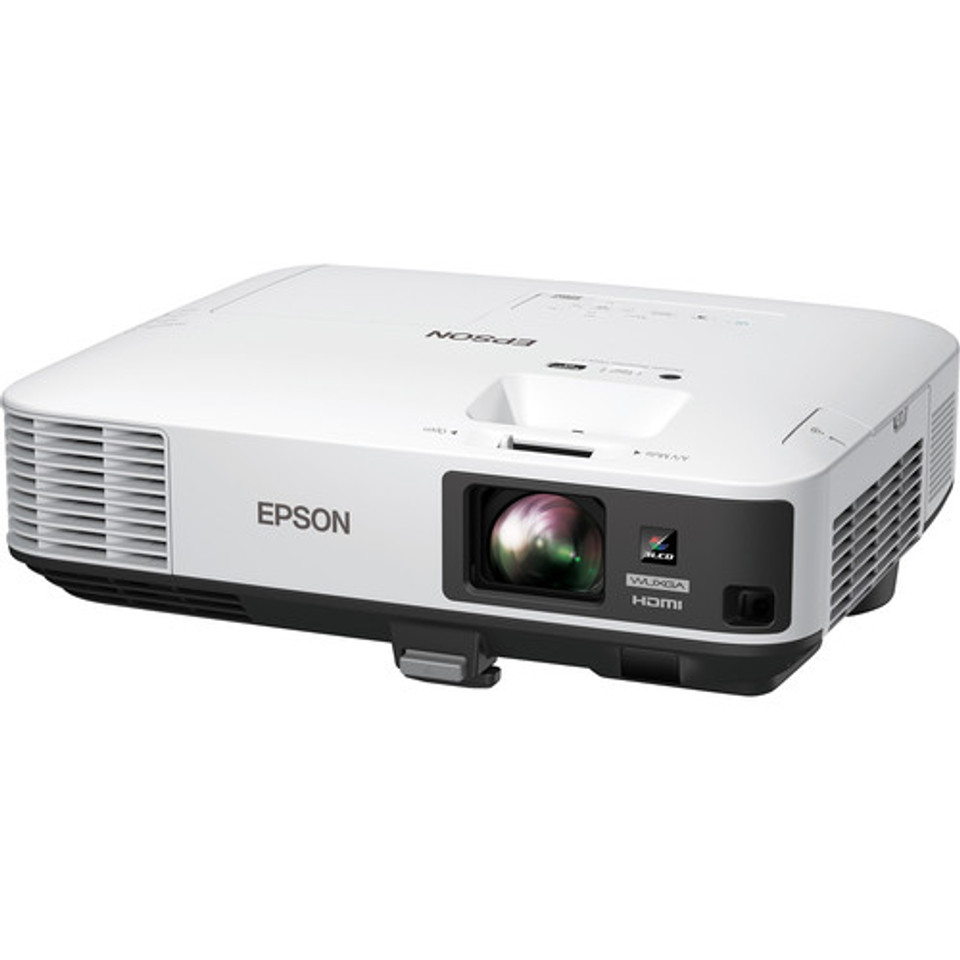

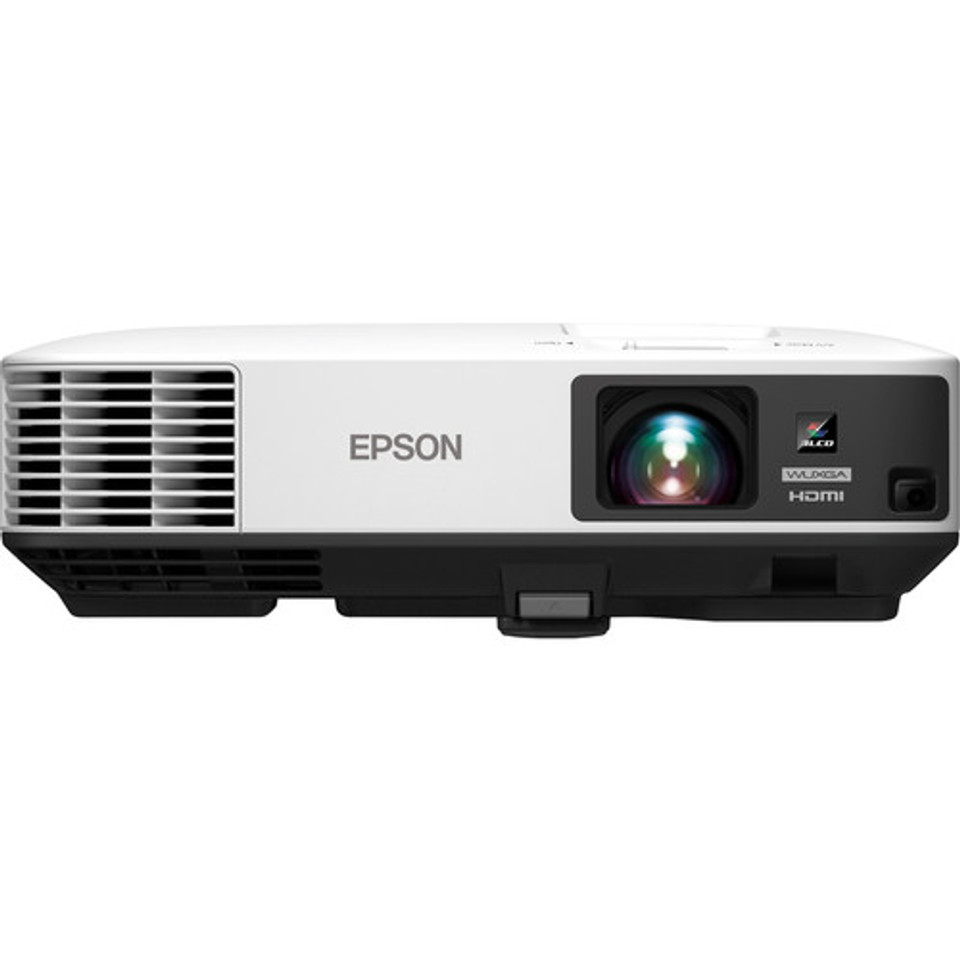

Enjoy bright, vibrant images with the Epson PowerLite 2255U 5000-Lumen WUXGA 3LCD Projector. Its 5000 lumens of brightness, combined with its 15,000:1 contrast ratio, will help it overcome ambient light in many situations, helping it retain detail in dark areas of the image without compromising overall brightness. Its 1920 x 1200 native resolution will help ensure that text is clear at most viewing distances.

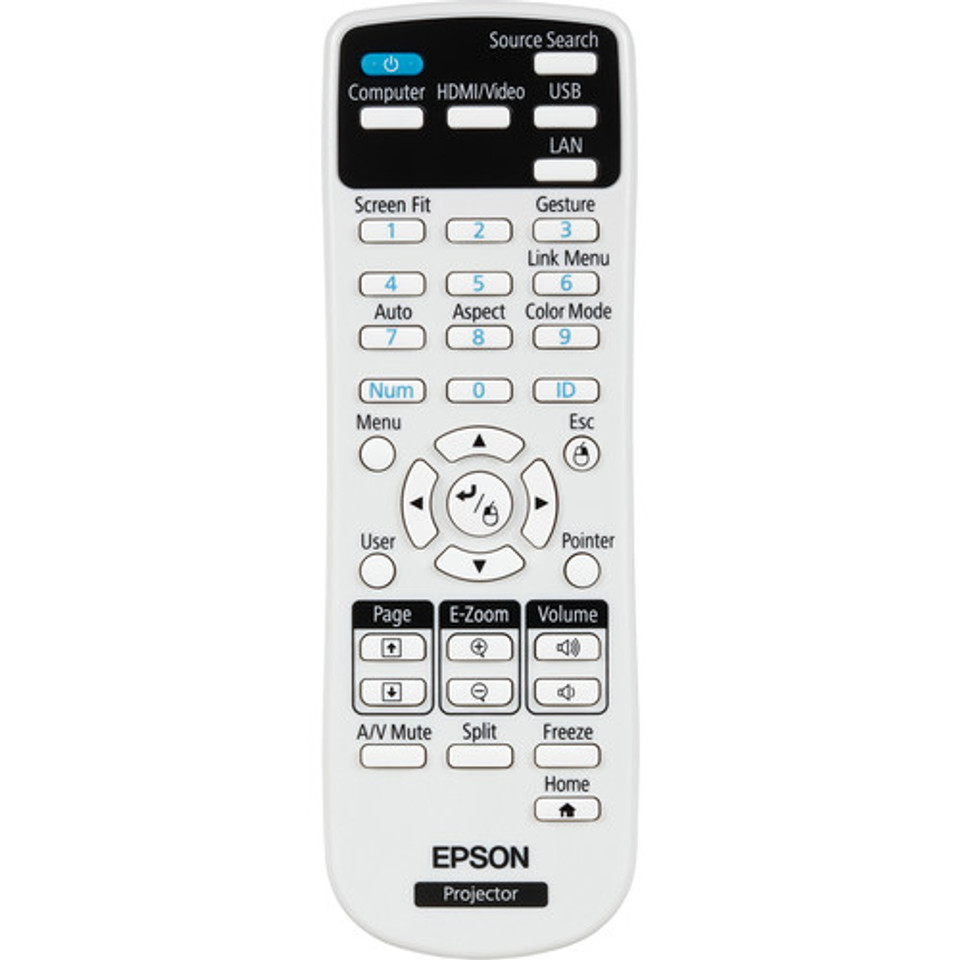

The PowerLite 2255U features VGA, RCA composite, and two HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control, and a wireless LAN module is also included for wireless networking.
High Color and White Brightness Levels
Wireless Ready
HDMI with MHL Connectivity
Auto Screen Fit
3LCD Color Accuracy
Enhanced Sharpness and Detail
Stream Content from Your Smartphone or Tablet
Secure Wireless Networking
Split Screen
Remote Management and Control Tools
Epson 2255U Specs
Image Display
| Display System | 3-Chip Polysilicon TFT LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Maximum Brightness | 5000 Lumens |
| Aspect Ratio | Native: 16:10 |
| Contrast Ratio | 15000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
Lens
| Focus | Manual |
| Lens | f/1.5 - 2 (f = 23 - 38.4 mm) |
| Optical Zoom | Manual: 1.6x |
| Throw Distance | 4.921 - 29.199' / 1.5 - 8.9 m |
| Throw Ratio | 1.57 to 2.58:1 |
| Projection Size | 45 - 260" / 114.30 - 660.40 cm |
Features
| Keystone Correction | Vertical: ± 30° Horizontal: ± 20° |
| Supported HDR Input Formats | None |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16W |
| Remote | Yes |
Input/Output Connectors

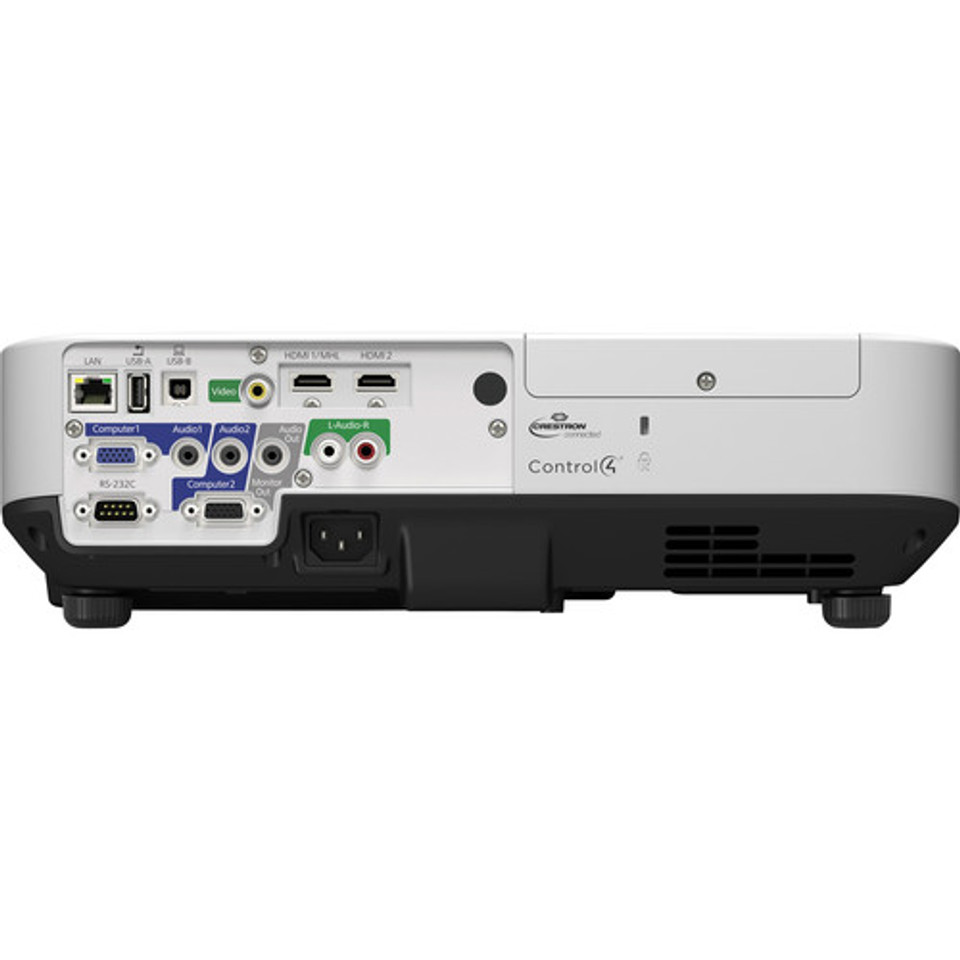

| Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x HDMI with MHL Support (HDMI Type-A) Audio, Video Input 2 x VGA (DE-15/DB-15) Video Input 2 x 1/8" / 3.5 mm Mini Audio Input 1 x Composite (RCA) Video Input 1 x 2RCA Audio Input 1 x Ethernet (RJ45) LAN Input 1 x RS-232 (DE-9/DB-9) Control Input 1 x USB Type-B Data Input 1 x USB Type-A Power Output |
| Wireless LAN / Wi-Fi | Yes, Built-in |
General
| Light Source | Lamp (1 x UHE) |
| Lamp Power | 300 W |
| Expected Lamp Life | Medium Brightness: 5000 Hours Low Brightness: 10,000 Hours |
| Fan Noise | Medium Brightness: 39 dB Low Brightness: 29 dB |
| Security | Cable Lock Slot Password Protection |
| AC Input Power | 120 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Medium Brightness: 429 W Low Brightness: 340 W Standby Mode (Lamp Off): 2.4 W Standby Mode (Lamp Off): 0.21 W |
| Dimensions (W x H x D) | 14.8 x 4.9 x 11.5" / 37.6 x 12.4 x 29.2 cm Including feet 14.8 x 4.3 x 11.5" / 37.6 x 10.9 x 29.2 cm Excluding feet |
| Weight | 10.1 lb / 4.6 kg |
Packaging Info
| Package Weight | 15.25 lb |
| Box Dimensions (LxWxH) | 20.8 x 15.2 x 8.1" |
