Product Overview
Epson 675W Overview

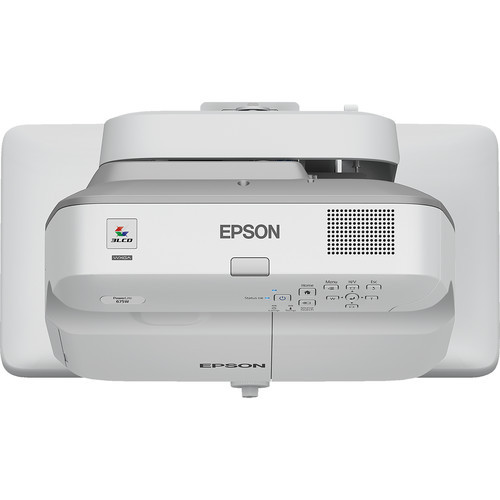

njoy virtually shadowless images with the Epson PowerLite 675W 3200-Lumen WXGA Ultra-Short Throw 3LCD Projector. It features an ultra-short 0.28 to 0.37:1 throw ratio, which will allow it to be mounted only 11" from your screen or whiteboard and project an image as large as 100", reducing the risk of possible shadows. Its 3200 lumens of brightness, combined with its 14,000:1 contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image without compromising overall brightness. The 1280 x 800 native resolution will help ensure that text is clear at most viewing distances.

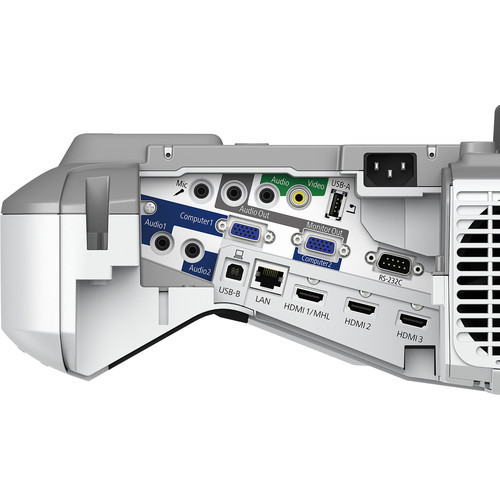

The PowerLite 675W features USB, RCA composite, and three HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. The USB input allows you to project directly from a Windows or Mac computer. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control.
Key Features
- Brightness of 3200 Lumens
- WXGA (1280 x 800) Native Resolution
- Ultra-Short 0.28 to 0.37:1 Throw Ratio
- USB, RCA Composite, 3 x HDMI Inputs
- VGA Output for Loop-Through
- Analog Audio Input and Output
- Built-In 16W Speaker
- Ethernet and RS-232 Controllable
- IR Remote Included
High Color and White Brightness Levels
Ultra-Short Throw Projector
Split Screen
Built-In Speaker
USB Plug & Play
3LCD Color Accuracy
Simultaneously Display and Control Multiple Device Screens
Manage Your Display and Sent Announcements Remotely
Versatile Connectivity
Epson 675W Specs
Image Display
| Display System | 3-Chip Polysilicon TFT LCD |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Maximum: UXGA - 1600 x 1200 |
| Maximum Brightness | 3200 Lumens |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 14000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
Lens
| Focus | Manual |
| Lens | f/1.6 (f = 3.7 mm) |
| Throw Distance | 13.701 - 23.504" / 34.8 - 59.7 cm |
| Throw Ratio | 0.28 to 0.37:1 |
| Projection Size | 60 - 100" / 152.40 - 254.00 cm |
Features
| Keystone Correction | Manual-Vertical: ± 3° |
| Digital Zoom | 1.35x |
| Ceiling Mountable | None |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16W |
Input/Output Connectors
| Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input |
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Lamp (1 x UHE) |
| Lamp Power | 215 W |
| Expected Lamp Life | Medium Brightness: 5000 Hours |
| Fan Noise | Medium Brightness: 35 dB |
| Security | Cable Lock Slot |
| AC Input Power | 120 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Medium Brightness: 333 W |
| Dimensions (W x H x D) | 14.5 x 7.4 x 15.8" / 36.8 x 18.8 x 40.1 cm Including feet |
| Weight | 12.6 lb / 5.7 kg |
Packaging Info
| Package Weight | 19 lb |
| Box Dimensions (LxWxH) | 21.4 x 19.3 x 10.3" |
