Product Overview
Epson 750F Overview

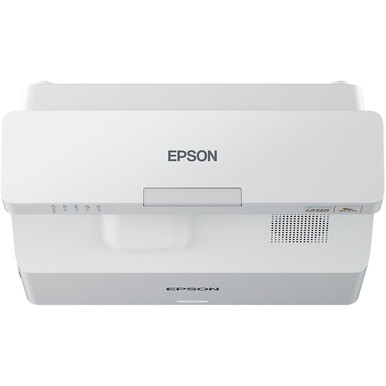

Create large images from short distances in classrooms and digital signage applications with the Epson PowerLite 750F 3600-Lumen Full HD Ultra-Short Throw Laser Signage & Education Network 3LCD Projector. It has Wi-Fi built in, allowing wireless screen mirroring via Miracast, so teachers and presenters can stream wirelessly from their compatible mobile devices. The projector outputs up to 3600 lumens of color and white brightness to provide vibrant images, even in classrooms with ambient light.
The ultra-short 0.26 to 0.36:1 throw ratio lets you place the PowerLite 750F very close to your screen or wall to help prevent on-screen shadows or to enable big-screen projection in small spaces. A VGA, a composite video, and three HDMI inputs are onboard to connect both standard definition and HD sources. The second VGA connector can be used either as an input or an output to provide flexible connection options. An IR remote is included as an added convenience.
- 3600 lumens of color and white brightness
- Full HD 1080p resolution for vibrant, true-to-life displays up to 120"
- Virtually maintenance-free 20,000-hour laser light source with no lamps to replace
- Convenient ultra-short throw design projects large, easy-to-read images, even in small spaces
- Built-in 5 GHz Wi-Fi supports Miracast and wireless displays via Epson iProjection software to display and share content simultaneously to/from up to 50 connected devices
- Remote management and control tools for ease of access and maintenance
- Simple, flexible installation with 360° placement capabilities – mount or place the projector in any position or angle, from landscape to portrait
- Free downloadable content management software and app to create amazing effects and experiences for digital signage, create custom content, or upload and play directly from the projector
- Horizontal and vertical foot adjustment ±0.8°
- Dynamic, Presentation, Cinema, sRGB, DICOM SIM, and Multi-Projection Modes
- Enterprise-level security encryption
- Remote control with Source Search, HDMI, Computer, USB, LAN, Keystone, Effect, USB Viewer, ID, Default, User, E-Zoom, Color Mode, Aspect, A/V Mute, Split, Freeze, and Home functions
- Recyclable design
- RoHS compliant
Key Features
- Color & White Brightness of 3600 Lumens
- Full HD (1920 x 1080) Native Resolution
- 0.26 to 0.36:1 Ultra-Short Throw Ratio
- Integrated Wi-Fi & Ethernet Connectivity
- Wireless Screen Mirroring via Miracast
- VGA, Composite Video, 3x HDMI Inputs
- Analog Audio Input and Output
- VGA Output for Loop-Through
- RS-232 Controllable
- Includes IR Remote
Epson 750F Specs
Image Display
| Display System | 3-Chip Polysilicon TFT LCD |
| Native Chip Resolution | 1920 x 1080 (Full HD) |
| Max Brightness | White: 3600 Lumens (ISO) Color: 3600 Lumens |
| Aspect Ratio | Native: 16:9 Supported: 16:10 Supported: 4:3 Supported: 16:6 |
| Contrast Ratio | 1440:1 |
| Dynamic Contrast Ratio | 2,500,000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
Lens
| Focus | Manual |
| Lens | f/1.6 (f = 3.7 mm) |
| Optical Zoom | None |
| Throw Ratio | 0.26 to 0.36:1 |
| Projection Size | 60 - 120" / 152.4 - 304.8 cm |
Features
| Keystone Correction | Manual-Horizontal: ± 3° Manual-Vertical: ± 3° |
| Supported HDR Input Formats | None |
| Digital Zoom | 1.35x |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16W |
Input/Output Connectors

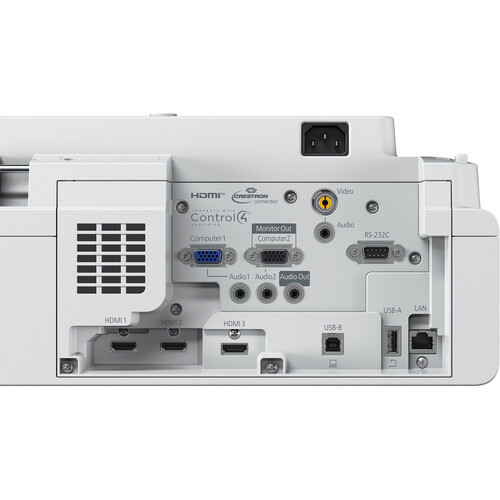

| Inputs/Outputs | 3 x HDMI (HDMI Type-A) Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input/Output 1 x VGA (DE-15/DB-15) Video Input 1 x Composite (RCA) Video Input 3 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Audio Output 1 x USB 2.0 (USB Type-A) LAN 1 x USB 2.0 (USB Type-B) Data 1 x Ethernet (RJ45) LAN 1 x RS-232 (DE-9/DB-9) Control |
Hardware
| Wireless LAN / Wi-Fi | Yes, Built-in |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours Low Brightness: 30,000 Hours |
| Fan Noise | Full Brightness: 36 dB Low Brightness: 26 dB |
| Security | Security Bar |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 267 W Low Brightness: 206 W Standby Mode (Lamp Off): 2 W |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Operating Humidity | 20 to 80% |
| Dimensions (W x H x D) | 14.1 x 6.4 x 15.6" / 35.8 x 16.3 x 39.6 cm Including Feet |
| Weight | 12.5 lb / 5.7 kg |
Packaging Info
| Package Weight | 16.77 lb |
| Box Dimensions (LxWxH) | 18.7 x 17.2 x 12.2" |
