Product Overview
Epson 982W Overview

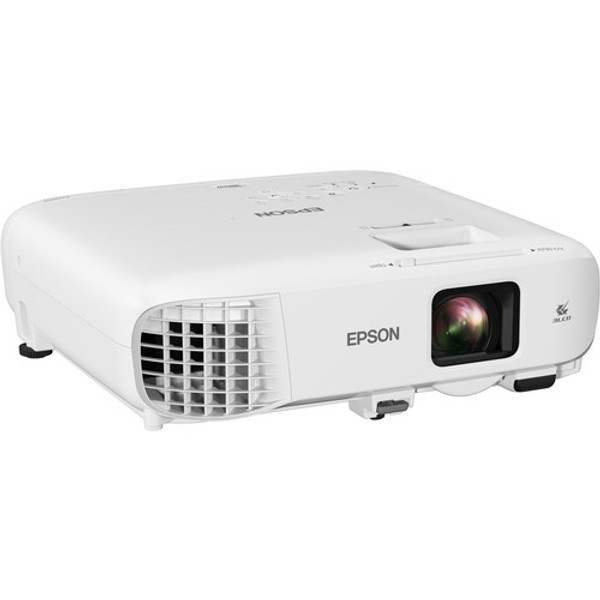

Enjoy bright, vibrant images in most classroom settings with the Epson PowerLite 982W 4200-Lumen WXGA 3LCD Projector. Its 4200 lumens of brightness, combined with its 16,000:1 dynamic contrast ratio, helps it overcome ambient light in many situations and retain detail in dark areas of the image without compromising overall brightness. The projector's 1280 x 800 native resolution helps ensure that images and text are clear at most viewing distances.
The PowerLite 982W features composite video, two HDMI, and two VGA inputs to support various source devices. The projector also accepts video signals via USB Type-B from Windows and Mac computers. A VGA cable and an IR remote control are included as an added convenience.
Key Features
- Brightness of 4200 Lumens
- WXGA (1280 x 800) Native Resolution
- 1.38 to 2.24:1 Throw Ratio
- Composite, 2x HDMI, 2x VGA Inputs
- VGA Output for Loop-Through
- Analog Audio Input and Output
- USB Type-B Computer Input
- Integrated 16-Watt Speaker
- Includes VGA Cable and IR Remote Control
Designed to Provide Bright, Vivid Color
The projector's 4200 lumens of both color and white brightness combine with 3LCD technology to deliver bright, accurate color.
Extend Lamp Life in ECO Mode
The included lamp can last up to 6500 hours in Normal Mode and up to 17,000 hours in ECO Mode.
Network Connectivity
Ethernet connectivity allows remote network projector management, presentations over the network, and more.
Moderator Function
This function allows up to 50 users to connect to the projector simultaneously for displaying a variety of content or comparing work side-by-side.
Optional Wireless Connectivity
With a separately sold adapter, you can wirelessly display from your Windows, Mac, Chromebook, iOS, or Android devices.
Installation Flexibility
1.6x zoom and ±30° manual horizontal & automatic vertical keystone correction help simplify installation.
Versatile Connectivity
Connect your digital HD devices with the two HDMI inputs.
Integrated Speaker and Microphone Input
A built-in 16W speaker mitigates the need for an external sound system, and the mic input lets you dictate over your presentation.
Additional Features
- RoHS compliant
- Recyclable design
- USB plug-and-play with Windows and Mac computers
- Remote control for A/V Mute, Freeze, Split, Aspect, Color Mode, Auto, MHL Menu, and Volume functions
Epson 982W Specs
Image Display
| Display System | 3-Chip Polysilicon TFT LCD |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | UXGA 60 - 1600 x 1200 |
| Maximum Brightness | White: 4200 Lumens Color: 4200 Lumens |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | 16,000:1 |
| Color Depth | 10-Bit (1.07 Billion Colors) |
Lens
| Focus | Manual |
| Lens | f/1.51 - 1.99 (f = 18.2 - 29.2 mm) |
| Optical Zoom | Manual: 1.6x |
| Throw Ratio | 1.38 to 2.24:1 |
| Projection Size | 29 - 280" / 73.66 - 711.20 cm |
Features
| Keystone Correction | Auto-Vertical: ± 30° Manual-Horizontal: ± 30° |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes (Mono) |
| Speaker Power | 16W |
Input/Output Connectors
| Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input 2 x VGA (DE-15/DB-15) Video Input 1 x Composite (RCA) Video Input 1 x 2RCA Audio Input 2 x 1/8" / 3.5 mm Mini Audio Input 1 x 1/8" / 3.5 mm Mini Microphone Input 1 x VGA (DE-15/DB-15) Video Output 1 x 1/8" / 3.5 mm Mini Audio Output 1 x Ethernet (RJ45) LAN 1 x USB 2.0 (USB Type-A) Data 1 x USB 2.0 (USB Type-B) Control 1 x RS-232 (DE-9/DB-9) Control |
Hardware
| Wireless LAN / Wi-Fi | No, Optional Adapter Available |
General
| Light Source | Lamp (1 x UHE) |
| Lamp Power | 230 W |
| Expected Lamp Life | Full Brightness: 6500 Hours Medium Brightness: 10,000 Hours Low Brightness: 17,000 Hours |
| Fan Noise | Full Brightness: 37 dB Low Brightness: 28 dB |
| Security | Cable Lock Slot Padlock Security Bar |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 354 W Low Brightness: 235 W Standby Mode (Lamp Off): 2 W |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Dimensions (W x H x D) | 12.1 x 4.1 x 11.5" / 30.7 x 10.4 x 29.2 cm Including Feet 12.1 x 3.5 x 11.1" / 30.7 x 8.9 x 28.2 cm Excluding Feet |
| Weight | 6.83 lb / 3.1 kg |
Packaging Info
| Package Weight | 10 lb |
| Box Dimensions (LxWxH) | 15.3 x 15 x 6.5" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
