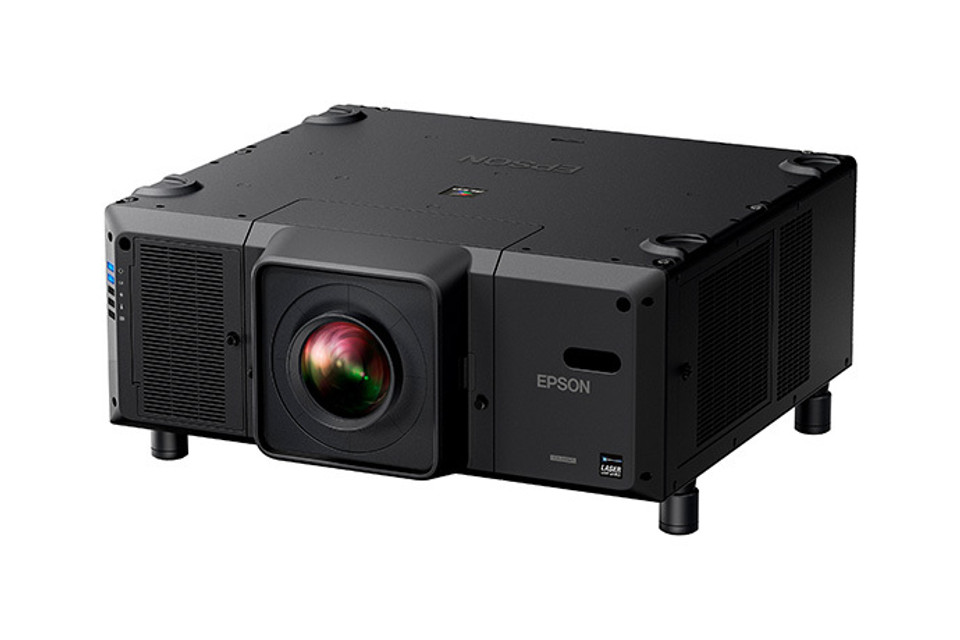

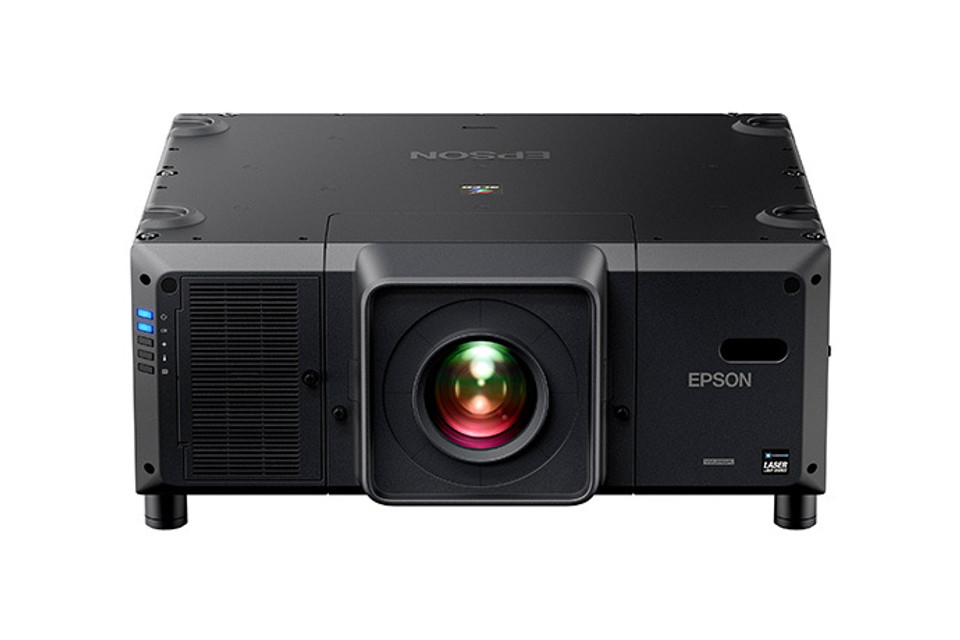

Epson Pro L30000UNL Laser WUXGA 3LCD Projector with 4K Enhancement

What's In The Box:

• Pro L30000UNL projector
• Mounting Bracket (ELPMB56)
• Quick Start Guide
• Power cables
• Projector remote control with batteries
• HDMI cable clamp

3LCD laser projector with 30,000 lumens (2) plus 4K Enhancement (1)

Epson’s brightest projector, the Pro L30000UNL offers 30,000 lumens of color and white brightness², plus native WUXGA resolution with 4K Enhancement Technology¹, making it the perfect choice for live events, rental and staging, auditoriums, lecture halls and other large-venue applications. The solid-state laser light engine and electrostatic air filter offer virtually maintenance-free operation for up to 20,000 hours³.  The projector includes a host of premium features for enhanced durability and fast setup, such as a mechanical shutter and sealed optical engine as well as Stacking Assist, Tiling Assist and a built-in camera. Nine optional interchangeable lenses are available.

Specifications

Projection System:High-aperture Epson^® 3LCD, 3-chip technology

Projection Method:Front/rear/ceiling mount

Driving Method:Poly-silicon TFT Active Matrix

Native Resolution:WUXGA with 4K Enhancement¹ (1920 x 1200 x 2)

Resolution on Screen:WUXGA with 4K Enhancement¹/4.6 million pixels

Pixel Number in Device:2,304,000 dots (1920 x 1200) x 3

Color Brightness - Color Light Output:30,000 lumens²

White Brightness - White Light Output:30,000 lumens²

Aspect Ratio:Supports 4:3, 16:9, 16:10

Resolution:1920 x 1200

Maximum Resolution:4096 x 2160 (resizing display)

Brightness Uniformity:90%

Pixel Arrangement:Cross stripe

Size - projected distance:100" – 1000"

Keystone Correction:Vertical: ±45 degrees; Horizontal: ±30 degrees

Contrast Ratio:2,000,001:1 +

Color Reproduction:Up to 1.07 billion colors

Light Source Life:20,000 hours (Normal/Quiet); 30,000 hours (Extended)³

Illumination Technology:Laser Diode

Projection Lens (Standard)
Type:

• Powered shift/focus/zoom
• Standard Lens ELPLM12
• See website for information on optional lenses

F-number:1.9 – 2.1

Focal Length:54.7 – 73 mm

Zoom Ratio:Optical zoom 1 – 1.35x

Throw Ratio Range:1.74 (Wide) – 2.35 (Tele)

Lens Shift:Vertical: ±65 percent; Horizontal: ±30 percent

Projector Details:

Input Signal:Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160

Interfaces:

• 1x DVI-D
• 1X HDMI® (HDCP 2.2)
• 1x HDBaseT^TM (HDCP 2.2)
• 5-BNC, 1x VGA
• 1x 3G-SDI
• USB 2.0 Connectors: 1x Type B (For Firmware update, copy OSD) 1x Type A (For Optional Wireless LAN)
• Monitor Out: 1x Mini D-sub 15 pin
• Serial Control Serial: 1x RS-232c
• 1x SDI Out (Loop-Through)
• Remote: Stereo Mini
• Wire LAN x 1 RJ45 (Compliant with Control I/O (Art-Net))

Fan Noise:49 dB (Normal Mode); max. 41 dB (ECO Mode)

Video I/O
Input Signal Input Video Signal (HDMI®, DVI-D and HDBaseT®
ports): 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/
4096 x 2160
Auto Power On Signal Detection on HDMI/Plug-In Detection
(HDMI, VGA 15-pin)
Sleep Mode Yes (with timer)
HDMI CEC Control Yes

Dimensions (W x D x H)
Dimensions Including Feet 23.1" x 19.4" x 8.6"
Weight 53.7 lb (24.4 kg)

Interfaces
3G-SDI in/out
HDMI x 1 (HDCP 2.3)
HDBaseT x 1
DVI-D x 1
VGA x 1
Variable Audio Out: Mini Stereo x 1
USB Type-B x 1
USB Type-A x 2 (5 V, 2.0 A)
USB Type-A for Wireless LAN (Optional)
Serial: RS-232c x 1 (9-pin)
Remote Mini Stereo
Network: RJ-45

Remote Control
Features:Power, Search Selection, Lens Shift, Zoom, Focus, Test Pattern Selection, Shutter, Remote ID, Auto, Aspect, Color Mode, Menu and more

Operating Distance:98 ft

Operating Angle:

• Right/Left: Front: ± 50 degrees; Rear: ± 40 degrees
• Upper/Lower: Front: ± 50 degrees; Rear: +20 degrees

Eco Features
RoHS compliant
Recyclable product10
Epson America, Inc. is a SmartWay® Transport Partner11
