Product Overview
3LCD laser projector with 30,000 lumens2 plus 4K Enhancement1

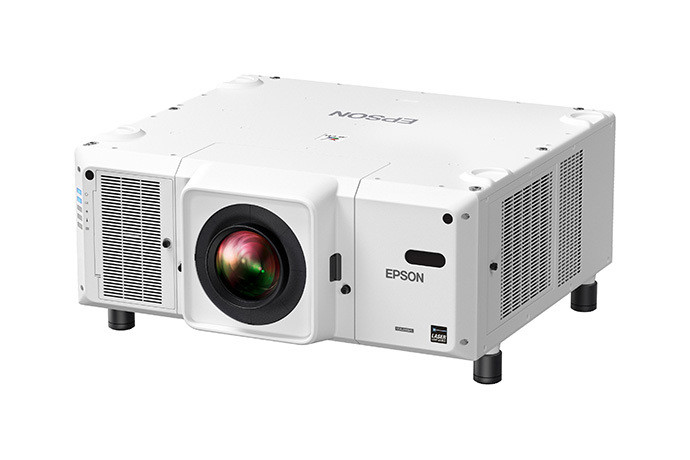

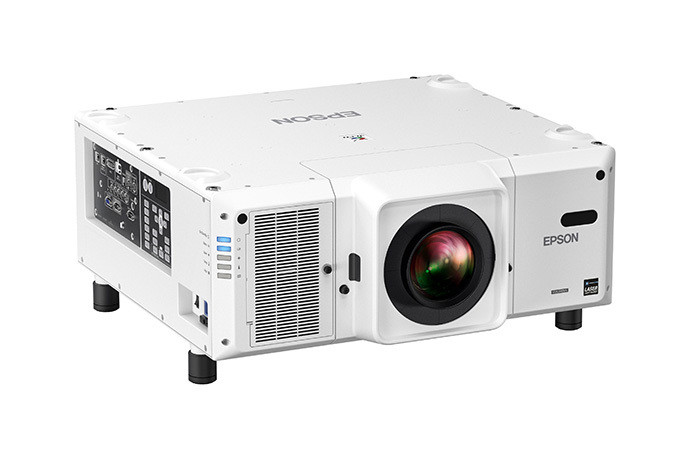

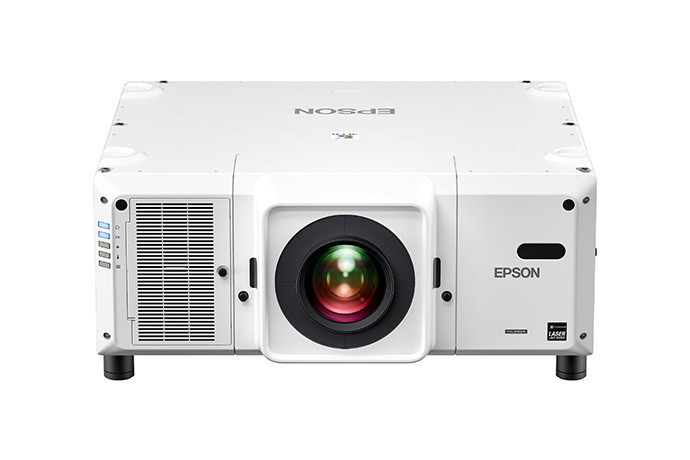

Epson’s brightest projector, the Pro L30000UNL offers 30,000 lumens of color and white brightness2, plus native WUXGA resolution with 4K Enhancement Technology1, making it the perfect choice for live events, rental and staging, auditoriums, lecture halls and other large-venue applications. The solid-state laser light engine and electrostatic air filter offer virtually maintenance-free operation for up to 20,000 hours3. The projector includes a host of premium features for enhanced durability and fast setup, such as a mechanical shutter and sealed optical engine as well as Stacking Assist, Tiling Assist and a built-in camera. Nine optional interchangeable lenses are available.
-
Projection System: High-aperture Epson® 3LCD, 3-chip technology

Native Resolution: WUXGA with 4K Enhancement1 (1920 x 1200 x 2)
Color Brightness: 30,000 lumens2
White Brightness: 30,000 lumens2
30,000 lumens of color and white brightness2
native WUXGA (1920 x 1200) with 4K Enhancement1; provides up to 4.6 million pixels onscreen
delivers vibrant, true-to-life images
solid-state laser light source and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours3
nine optional interchangeable lenses (sold separately)
protects the projector from damage during laser light shows
- Designed for live events — features a sealed light source and optical engine for outstanding durability in harsh conditions
- Stacking Assist — for fast, simple stacking of two projectors
- Tiling Assist for projecting large images — fast setup for edge blending in multi-projector applications
- Built-in cameras — facilitate Stacking Assist, Tiling Assist and auto-color calibration of networked projectors
- Supports High Dynamic Range (HDR) content — HDR104 (PQ) and Hybrid Log Gamma (HLG)
- Frame interpolation — helps ensure image clarity when projecting scenes with fast-moving objects
Eco Features
- RoHS compliant
- Recyclable product5
- Epson America, Inc. is a SmartWay™ Transport Partner6
Better Products for a Better Future™
For more information on Epson's environmental programs, go to eco.epson.com
What's In The Box:
- Pro L30000UNL projector
- Mounting Bracket (ELPMB56)
- Quick Start Guide
- Power cables
- Projector remote control with batteries
- HDMI cable clamp
3LCD laser projector with 30,000 lumens (2) plus 4K Enhancement (1)
Epson’s brightest projector, the Pro L30000UNL offers 30,000 lumens of color and white brightness2, plus native WUXGA resolution with 4K Enhancement Technology1, making it the perfect choice for live events, rental and staging, auditoriums, lecture halls and other large-venue applications. The solid-state laser light engine and electrostatic air filter offer virtually maintenance-free operation for up to 20,000 hours3. The projector includes a host of premium features for enhanced durability and fast setup, such as a mechanical shutter and sealed optical engine as well as Stacking Assist, Tiling Assist and a built-in camera. Nine optional interchangeable lenses are available.
- 3LCD laser projector with 4K Enhancement1 — 30,000 lumens of color and white brightness2
- Exceptional Full HD widescreen display — native WUXGA (1920 x 1200) with 4K Enhancement1; provides up to 4.6 million pixels onscreen
- 3-chip 3LCD technology — delivers vibrant, true-to-life images
- Worry-free operation — solid-state laser light source and electrostatic air filter provide virtually maintenance-free operation for up to 20,000 hours3
- 4K-ready lenses with powered lens shift and memory — nine optional interchangeable lenses (sold separately)
- Mechanical shutter — protects the projector from damage during laser light shows
- Designed for live events — features a sealed light source and optical engine for outstanding durability in harsh conditions
- Stacking Assist — for fast, simple stacking of two projectors
- Tiling Assist for projecting large images — fast setup for edge blending in multi-projector applications
- Built-in cameras — facilitate Stacking Assist, Tiling Assist and auto-color calibration of networked projectors
- Supports High Dynamic Range (HDR) content — HDR104 (PQ) and Hybrid Log Gamma (HLG)
- Frame interpolation — helps ensure image clarity when projecting scenes with fast-moving objects
Specifications
Projection System:High-aperture Epson® 3LCD, 3-chip technology
Projection Method:Front/rear/ceiling mount
Driving Method:Poly-silicon TFT Active Matrix
Native Resolution:WUXGA with 4K Enhancement1 (1920 x 1200 x 2)
Resolution on Screen:WUXGA with 4K Enhancement1/4.6 million pixels
Pixel Number in Device:2,304,000 dots (1920 x 1200) x 3
Color Brightness - Color Light Output:30,000 lumens2
White Brightness - White Light Output:30,000 lumens2
Aspect Ratio:Supports 4:3, 16:9, 16:10
Resolution:1920 x 1200
Maximum Resolution:4096 x 2160 (resizing display)
Brightness Uniformity:90%
Pixel Arrangement:Cross stripe
Size - projected distance:100" – 1000"
Keystone Correction:Vertical: ±45 degrees; Horizontal: ±30 degrees
Contrast Ratio:2,000,001:1 +
Color Reproduction:Up to 1.07 billion colors
Light Source Life:20,000 hours (Normal/Quiet); 30,000 hours (Extended)3
Illumination Technology:Laser Diode
Projection Lens (Standard)
Type:
- Powered shift/focus/zoom
- Standard Lens ELPLM12
- See website for information on optional lenses
F-number:1.9 – 2.1
Focal Length:54.7 – 73 mm
Zoom Ratio:Optical zoom 1 – 1.35x
Throw Ratio Range:1.74 (Wide) – 2.35 (Tele)
Lens Shift:Vertical: ±65 percent; Horizontal: ±30 percent
Projector Details:
Input Signal:Input Video Signal (HDMI, DVI-D and HDBaseT ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160

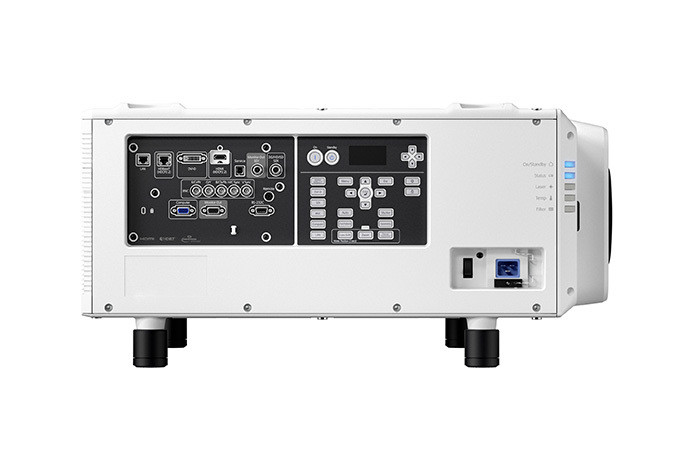

Interfaces:
- 1x DVI-D
- 1X HDMI® (HDCP 2.2)
- 1x HDBaseTTM (HDCP 2.2)
- 5-BNC, 1x VGA
- 1x 3G-SDI
- USB 2.0 Connectors: 1x Type B (For Firmware update, copy OSD) 1x Type A (For Optional Wireless LAN)
- Monitor Out: 1x Mini D-sub 15 pin
- Serial Control Serial: 1x RS-232c
- 1x SDI Out (Loop-Through)
- Remote: Stereo Mini
- Wire LAN x 1 RJ45 (Compliant with Control I/O (Art-Net))
Fan Noise:49 dB (Normal Mode); max. 41 dB (ECO Mode)
Video I/O
Input Signal Input Video Signal (HDMI®, DVI-D and HDBaseT®
ports): 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/
4096 x 2160
Auto Power On Signal Detection on HDMI/Plug-In Detection
(HDMI, VGA 15-pin)
Sleep Mode Yes (with timer)
HDMI CEC Control Yes
Dimensions (W x D x H)
Dimensions Including Feet 23.1" x 19.4" x 8.6"
Weight 53.7 lb (24.4 kg)
Interfaces
3G-SDI in/out
HDMI x 1 (HDCP 2.3)
HDBaseT x 1
DVI-D x 1
VGA x 1
Variable Audio Out: Mini Stereo x 1
USB Type-B x 1
USB Type-A x 2 (5 V, 2.0 A)
USB Type-A for Wireless LAN (Optional)
Serial: RS-232c x 1 (9-pin)
Remote Mini Stereo
Network: RJ-45
Remote Control
Features:Power, Search Selection, Lens Shift, Zoom, Focus, Test Pattern Selection, Shutter, Remote ID, Auto, Aspect, Color Mode, Menu and more
Operating Distance:98 ft
Operating Angle:
- Right/Left: Front: ± 50 degrees; Rear: ± 40 degrees
- Upper/Lower: Front: ± 50 degrees; Rear: +20 degrees
Eco Features
RoHS compliant
Recyclable product10
Epson America, Inc. is a SmartWay® Transport Partner11
