LG ProBeam BU60RG 4K 6,000 Lumens Laser Projector

SuperSign
LG Connected Care

PROJECTION SYSTEM

Native Resolution :- 4K UHD (3840 x 2160)3)

Brightness (ANSI Lumen / Lumen) 1) :- 6000

Contrast Ratio (Full On Full Off) :- 3,000,000:1 ↑

Noise (typical) - Energy Saving Min. (Bright) :- 33 dB(A)

Noise (typical) - Energy Saving Med. :- 30 dB(A)

Noise (typical) - Energy Saving Off (Max) :- 29 dB(A)

Uniformorty(JBMMA 9point) :- 85%

Changeable F# :- Yes

Projection Lens - Focus (Auto / Manual) :- Manual

Projection Lens - Zoom :- 1.6x

Projection Image - Screen Size :- 40" ~ 300"

Projection Image - Standard (lens to wall) :- Wide 2880 /Tele 4630 (100'')

Projection Image - Throw Ratio :- 1.30 - 2.08

Lens Shift :- Yes ( Horiz ± 20% / Vert ± 50% )

Projection Offset:- 100%

Light source - Type :- Laser (LD + P/W)

Light source - Life High Brightness :- 20,000 Hrs

GENERAL SPECIFICATION

Aspect Ratio :- Full / Original 16:6 / 16:9 / 16:10 / 21:9 / 4:3

Sound - Output :- 10W (5W+5W)

Sound - Clear Voice :- Yes (Clear Voice lll)

Net Size (mm) (W x D x H) :- 370 x 290 x 155.7 370 x 290 x 143.7 (Without Leg)

Net Weight (kg or g) :- 9,7Kg

Gross size (mm) (W x D x H) :- 580 x 441 x 273

Gross Weight (kg or g) :- 11.5KG

Power Consumption (Max.) :- 460W

Stand-by Power :- 0.5W↓

Power Supply :- 100V – 240V @ 50~60 Hz(PSU Built-in)

Operation Temperature :- 0 ~ 40℃

Input Signal Compatibility - Digital(HDMI) :- Up to 4K (4096x2160)(60Hz, 50Hz, 24Hz)

INPUT/OUTPUT TERMINALS

Audio out :- Yes (Phone jack)

RS-232C(in) :- 1

RS-232C(out) :- 1

IP control :- Yes

RJ45 :- 1

HDMI(in) :- 2

USB Type-A :- 2 (USB2.0)

MAIN FEATURES

Platform (OS, UI) :- Signage webOS 6.0

Screen Share(Wireless Mirroring with MiraCast supporting device) :- Yes

Contents Sharing (with DLNA supporting device) :- Yes

Bluetooth Sound out :- Yes

LG Sound Sync(with Sound Bar) :- Yes

Plug & Play(RGB/DVI/HDMI Auto Source Detection) :- Yes

USB Host (Movie, Photo) :- Yes

Setting Guide :- Yes

HID (Keyboard/Mouse/GamePad Connection Thru USB :- Yes

Eco Function - Energy Saving Mode :- Yes (Min/Mid/Max)

Eco Function - Auto Off / Auto Sleep :- Yes

Eco Function - Time Power On/Off (On Time / Off Time) :- Yes (On / Off)

Eco Function - Automatic Standby / Auto Power Off :- Yes

ADDED FEATURES

HDR :- Yes

TruMotion :- Yes

HDCP :- Yes

Built-in Memory (for Storage) :- Yes (about 9G)

Blank :- Yes

PIP :- Yes

Crestron RoomView™ :- Yes

One Quick Share :- Yes

Color Temperature Adjustment :- Yes

Brilliant Color™ (Overlap Duty) :- Yes

Noise Reduction :- Yes

HDMI simplink(CEC) :- Yes

DICOM :- Yes

Digital Keystone Correction :- Warping (4/9/15/25/HV)

Quick(Instant) Power on/off :- Yes (on 12 Sec off 2 Sec)

Background Image :- Yes

Image Flip:- Yes (Horizontal/Vertical)

PBP :- Yes

24/7 Operation :- Yes

Black Level Control :- Yes

Expert controlvADJ :- Yes

Gamma Correction :- Yes

HDMI ARC(Audio Return Channel) :- Yes

DESIGN

Cabinet Color :- Top/Bottom - White Front/Rear - Gray

Kensington Lock :- Yes

Ceiling mount hole (for bracket):- Yes

Local Key :- Joystick

Leg-Stand :- Yes (4 Leg)

ACCESSORY

Manual (Full or Simple Book) :- Simple Book, Full Book

Quick User Guide (Quick Set-up Guide) :- Yes

Warranty Card :- Yes

Cable - RS232C cable(D-sub to phone) :- 1

Cable - Power cord:- 1

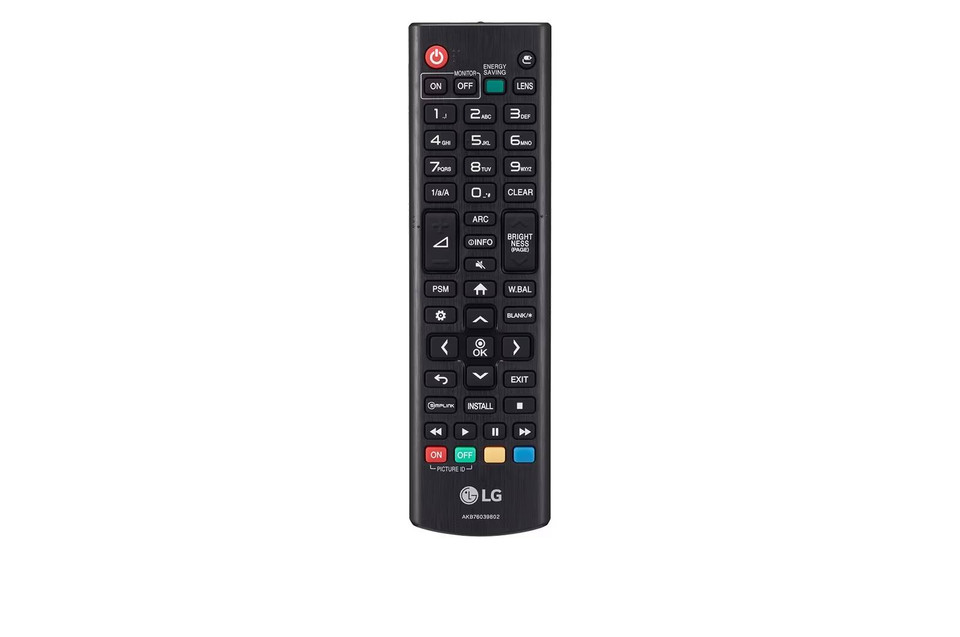

Remote control (Battery included) - Normal:- 0

Conformances(Regulation):- FCC/ETL/CE/CB/CCC/PSE/BIS
