Product Overview

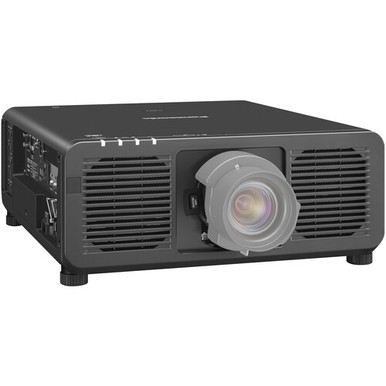

Experience dynamic visuals and professional reliability with the PT-REQ15BU Laser DLP Projector in black from Panasonic. Featuring a brightness of 15,000 ISO lumens, standard-throw lens, 4K on-screen resolution, and 240 Hz projection capability, the PT-REQ15BU is ideal for demanding commercial applications, like museums and small to midsize entertainment venues.
Connect devices via HDMI and DisplayPort with support for 4K HDR and HDCP 2.3. It is LAN and RS-232 controllable and compatible with many popular 3rd party functions, such as Crestron Connected, AMX DD, and PJ Link. It can be installed in any orientation to cover a wide range of uses and tricky installations.
- Brightness of 15,000 ISO Lumens
- UHD 4K 3840 x 2400 On-Screen Resolution
- WUXGA 1920 x 1200 Native Chip Resolution
- 1.36-2.10:1 Throw Ratio Lens Included
- Powered Zoom & Focus
- 1 x DisplayPort & 2 x HDMI Inputs
- Intel SDM-Ready Expansion Slot
- 20,000 Hours of Maintenance Free Use
- IP5X Certified Dust Protection
- NFC Prep Function
Specifications
Key Specs
Display System 1-Chip 0.80" DLP
Native Resolution 1920 x 1200
Maximum Brightness 15,000 Lumens (ISO)
Throw Ratio 1.36 to 2.10:1 (200" Screen Size @ 24.6' / 7.5 m)
Projection Size 70 to 700" / 1.8 to 17.8 m
HDR Support Yes, HDR10/Hybrid Log Gamma
Inputs/Outputs
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input
1x USB-A Data, LAN Input
1x USB-A Power Output
1x RJ45 (Ethernet) Control, Data, LAN Input/Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x BNC Control Input
1x BNC Control Output
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x DE-9/DB-9 Remote Input
Light Source Laser Phosphor
Image Display
Display System 1-Chip 0.80" DLP
Native Resolution 1920 x 1200
On-Screen Resolution Up to 3840 x 2160 via Pixel-Shift Technology
Supported Resolutions Maximum: 3840 x 2400
Maximum Brightness 15,000 Lumens (ISO)
Aspect Ratio
Native: 16:10
Supported: 16:9
Dynamic Contrast Ratio 25,000:1
Lens
Includes Lens Yes
Focus Manual Powered
Aperture f/1.84 to 2.31
Focal Length 23.9 to 37.2mm
Lens Shift
Vertical: ± 60%
Horizontal: ± 29%
Optical Zoom Powered:
Throw Distance 6.73 - 108.33' / 2.05 - 33.02 m
Throw Ratio 1.36 to 2.10:1 (200" Screen Size @ 24.6' / 7.5 m)
Projection Size 70 to 700" / 1.8 to 17.8 m
Features
Keystone Correction
Manual to Vertical: ± 40°
Manual to Horizontal: ± 40°
HDR Support Yes, HDR10/Hybrid Log Gamma
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker No
Projection Tilt Option Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input
1x USB-A Data, LAN Input
1x USB-A Power Output
1x RJ45 (Ethernet) Control, Data, LAN Input/Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x BNC Control Input
1x BNC Control Output
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x DE-9/DB-9 Remote Input
HDCP Support Yes, Version 2.3
Media/Memory Card Slot No
Number of Expansion Slots 1
Hardware
Mobile App Compatible Yes, Adapter Required (Not Included): Android & iOS
Wireless LAN / Wi-Fi No
Bluetooth No
General
Light Source Laser Phosphor
Expected Lamp Life
Medium Brightness: 20,000 Hours
Low Brightness: 24,000 Hours
Security
Cable Lock Slot
Password Protection
Input Power 100 to 240 VAC, 50 / 60 Hz
Operating Temperature 32 to 113°F / 0 to 45°C
Operating Humidity 10 to 80%
Dimensions (W x H x D)
19.6 x 8.3 x 25.5" / 498.0 x 212.0 x 648.0 mm (with Lens and Feet)
19.6 x 7.7 x 21.2" / 498.0 x 196.0 x 538.0 mm (without Lens and Feet)
Weight 59.5 lb / 27 kg
