Product Overview
Panasonic MZ780 Overview

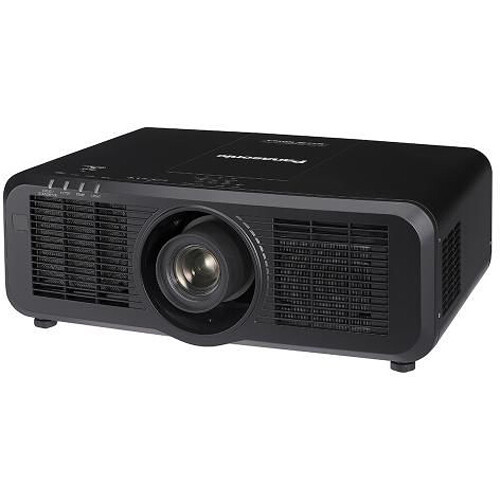

Enjoy bright images in most office, classroom, and exhibition spaces with the black Panasonic PT-MZ780 7000-Lumen WUXGA 3LCD Business Projector. Its 7000 ISO lumens of brightness and 3,000,000:1 dynamic contrast ratio work together to overcome light in most spaces and provide detail in dark areas of the image. It sports a 1920 x 1200 WUXGA native resolution for viewing detailed video, pictures, or data and accepts resolutions up to 4K UHD for compatibility with high-resolution output devices. The 1.61 to 2.76:1 throw ratio offers a range of throw distances for focused images from nearly anywhere in your installation area; additional lenses with varying throw distances are available separately.
The PT-MZ780 features HDBaseT via DIGITAL LINK, VGA, and three HDMI inputs to connect to nearly any device. The projector is controllable via the included remote control, DIGITAL LINK via Ethernet, or RS-232 with various control software options.
Key Features
- Brightness of 7000 ISO Lumens
- WUXGA (1920 x 1200) Native Resolution
- 1.61 to 2.76:1 Throw Ratio
- Uses Interchangeable Lenses
- VGA, DIGITAL LINK HDBaseT, 3x HDMI In
- Compatible with Various Control Systems
- Ethernet and RS-232 Controllable
- IR Remote Control Included
Well-Balanced Picture Quality
The refined optical engine balances brightness and color for immersive picture quality without dimming the lights. With dynamic optimization adjusting contrast, brightness, and color to suit the environment and content, and the Detail Clarity Processor 4 enhancing definition, images remain visible in well-lit rooms.
Flexible Design Fits Nearly Any Space
The projector fades from consciousness, with an unobtrusive cabinet and a low operating noise keeps attention focused on the content. Terminals fit infrastructure with 4K-signal ready DIGITAL LINK and three HDMI ports; the HDMI ports also enable auto power-on and playback via CEC from a compatible source device, such as the optional Wireless Presentation System PressIT, which is integrated via the powered USB port.
Flexible Installation in Museums
Bring museum exhibits to life with vivid, flexible LCD laser projection. This projector features the Edge-Blending, Contrast Sync, and Shutter Sync functions and supports some functions of Geo Pro software with Free Grid and an optional ultra-short throw zoom lens. These functions make it easy to edge-blend uniform images into a seamless widescreen museum display.
Efficient, Eco-Friendly Design
Maintenance extends to up to 20,000 hours, saving time, effort, and waste, while the amount of product packaging is also reduced.
Additional Features
- Works with the Smart Projector Control app
- Quick start/quick off
- ECO Management System
- Multi-screen support system
- Multi Monitoring & Control Software-compatible with optional Early Warning functions
- 360° installation
- Works with Crestron Connected, AMX DD, PJLink, and Art-Net DMX
- Control via separate LAN or DIGIAL LINK terminals
Panasonic MZ780 Specs
Image Display
| Display System | 3-Chip 0.76" LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Maximum Brightness | 7000 Lumens (ISO) |
| Uniformity | 85% |
| Aspect Ratio | Native: 16:10 |
| Dynamic Contrast Ratio | 3,000,000:1 |
Lens
| Focus | Manual Powered |
| Lens | f/1.7 - 2.3 (f = 26.8 - 45.5 mm) |
| Lens Shift | Horizontal: ± 35% Vertical: ± 67% |
| Optical Zoom | Powered: |
| Throw Distance | 4.46 - 78.64' / 1.36 - 23.97 m |
| Throw Ratio | 1.61 to 2.76:1 |
| Projection Size | 40 - 400" / 101.6 - 1016.0 cm |
Features
| Keystone Correction | Horizontal: ± 30° Vertical: ± 25° |
| Multi-Input Support (PIP/PBP) | Not Specified by Manufacturer |
| Ceiling Mountable | Yes |
| Projection Tilt Option | Yes |
| Remote | Yes |
Input/Output Connectors
| Inputs/Outputs | 1 x HDBaseT (RJ45) Audio, Control, Data, Video Input 3 x HDMI (HDMI Type-A) Audio, Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x RS-232 (DE-9/DB-9) Control Input 1 x DE-9/DB-9 Control Output 1 x 1/8" / 3.5 mm Mini Control Input 1 x DE-9/DB-9 Control Input 1 x 1/8" / 3.5 mm Mini Audio Input 1 x HDBaseT (1/8" / 3.5 mm Mini) Audio Output 1 x Ethernet (RJ45) LAN 1 x USB 2.0 (USB Type-A) Power Output |
| HDCP Support | Version 2.3 |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours |
| Fan Noise | Full Brightness: 32 dB Low Brightness: 26 dB |
| Security | Cable Lock Slot |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Full Brightness: 435 W Medium Brightness: 395 W Low Brightness: 280 W |
| Operating Temperature | 32 to 113°F / 0 to 45°C |
| Operating Humidity | 20 to 80% |
| Dimensions (W x H x D) | 22.1 x 8.8 x 17.3" / 561.0 x 224.0 x 439.0 mm Including Lens |
| Weight | 41 lb / 18.6 kg |
Packaging Info
| Package Weight | 53.2 lb |
| Box Dimensions (LxWxH) | 29.8 x 13.5 x 1.5" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
