Product Overview

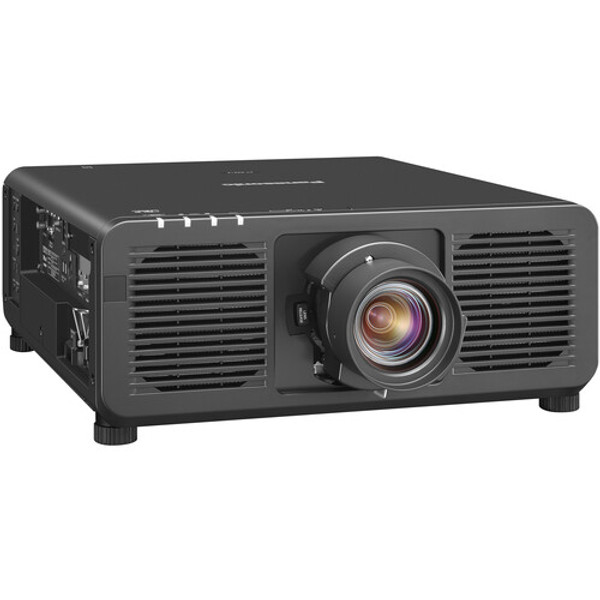

Enjoy high contrast, long life, and low maintenance with the PT-REZ10BU7 10,000-Lumen WUXGA DLP Laser Projector in black from Panasonic. With 10,000 ISO lumens, 24/7 operation, high contrast, and professional software, the REZ12 series is ideal for live events, higher education and corporate conference centers, retail spaces, museums, and more.
This model ships with a 1.36-2.10:1 standard throw lens, and has a selection of compatible optional lenses to cover different size and distance applications. Input connectivity is available via HDMI, DisplayPort, and an Intel SDM compatible upgradeable slot. The REZ12 series comes equipped with a full suite of professional features and software; combined with 360 degree orientation support, the PT-REZ10BU7 is ready to simplify the trickiest installations. An Ethernet LAN connection is available for integration and control, including NFC function, and Wi-Fi is available with an optional adapter (sold separately).
Specifications
Key Specs
Display System 1-Chip 0.80" DLP
Native Resolution 1920 x 1200
Maximum Brightness 10,000 Lumens (ISO)
Throw Ratio 1.36 to 2.10:1 (200" Screen Size @ 24.6' / 7.5 m)
Projection Size 70 to 700" / 1.8 to 17.8 m
HDR Support Yes,
Inputs/Outputs
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input
1x USB-A Data, LAN Input
1x USB-A Power Output
1x RJ45 (Ethernet) Control, Data, LAN Input/Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x BNC Control Input
1x BNC Control Output
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x DE-9/DB-9 Remote Input
Light Source Laser Phosphor
Image Display
Display System 1-Chip 0.80" DLP
Native Resolution 1920 x 1200
Supported Resolutions Maximum: 3840 x 2400
Maximum Brightness 10,000 Lumens (ISO)
Aspect Ratio
Native: 16:10
Supported: 16:9
Dynamic Contrast Ratio 25,000:1
Lens
Includes Lens Yes
Focus Manual Powered
Aperture f/1.84 to 2.31
Focal Length 23.9 to 37.2mm
Lens Shift
Vertical: ± 60%
Horizontal: ± 29%
Optical Zoom Powered:
Throw Distance 6.73 - 108.33' / 2.05 - 33.02 m
Throw Ratio 1.36 to 2.10:1 (200" Screen Size @ 24.6' / 7.5 m)
Projection Size 70 to 700" / 1.8 to 17.8 m
Features
Keystone Correction
Manual to Vertical: ± 40°
Manual to Horizontal: ± 40°
HDR Support Yes,
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker No
Projection Tilt Option Yes
Input/Output Connectors
Inputs/Outputs
2x HDMI Audio, Video Input
1x DisplayPort Audio, Video Input
1x USB-A Data, LAN Input
1x USB-A Power Output
1x RJ45 (Ethernet) Control, Data, LAN Input/Output
1x DE-9/DB-9 (RS-232) Control Input
1x DE-9/DB-9 (RS-232) Control Output
1x BNC Control Input
1x BNC Control Output
1x 1/8" / 3.5 mm Mini Remote Input
1x 1/8" / 3.5 mm Mini Remote Output
1x DE-9/DB-9 Remote Input
HDCP Support Yes, Version 2.3
Media/Memory Card Slot No
Number of Expansion Slots 1
Hardware
Mobile App Compatible Yes: Android & iOS
Wireless LAN / Wi-Fi No
Bluetooth No
General
Light Source Laser Phosphor
Expected Lamp Life
Medium Brightness: 20,000 Hours
Low Brightness: 24,000 Hours
Fan Noise Medium Brightness: 39 dB
Security
Cable Lock Slot
Password Protection
Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: < 840 W
Operating Temperature 32 to 113°F / 0 to 45°C
Operating Humidity 10 to 80%
Dimensions (W x H x D)
19.6 x 8.3 x 25.5" / 498.0 x 212.0 x 648.0 mm (with Lens and Feet)
19.6 x 7.7 x 21.2" / 498.0 x 196.0 x 538.0 mm (without Lens and Feet)
Weight 63.5 lb / 28.8 kg
