Product Overview

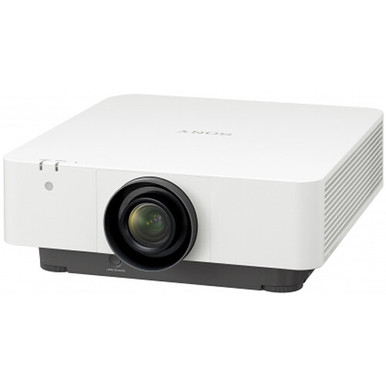

The VPL-FHZ80 6000-Lumen WUXGA Laser 3LCD from Sony features Bright View technology, which is designed to eliminate washed-out colors in strongly lit rooms. Newly improved Reality Creation ensures images, diagrams, and text look clear and sharp, even in bright conditions. Intelligent Settings with Ambiance match projected images with your environment for an enhanced viewing experience: there's even an ambient light sensor to measure room brightness.
- Brightness of 6000 Lumens
- WUXGA (1920 x 1200) Native Resolution
- Input via RJ45 Digital Link
- 1.6x Zoom & 1.39 to 2.23:1 Throw Ratio
- Bright View for Vibrant Colors
- HDMI, DVI-D & VGA Inputs
- Analog Audio Input & Output
Specifications
Key Specs
Display System 3-Chip 0.76" LCD
Native Resolution 1920 x 1200
Maximum Brightness
White: 6000 Lumens
Color: 6000 Lumens
6500 Lumens (Center)
Throw Ratio 1.39 to 2.23:1
Projection Size 40 to 600" / 1.0 to 15.2 m
HDR Support No,

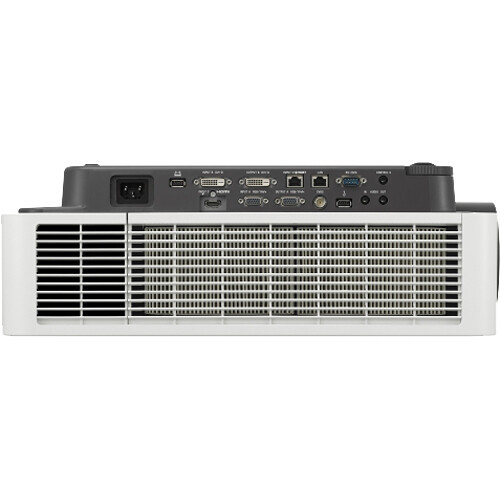

Inputs/Outputs
1x HDMI Audio, Video Input
1x DE-15/DB-15 Video Input
1x DVI-D Video Input
1x 1/8" / 3.5 mm Mini Audio Input
1x RJ45 (HDBaseT) Audio, Control, LAN, Video Input
1x BNC Video Input
1x DE-15/DB-15 (VGA) Video Output
1x DVI-D Video Output
1x 1/8" / 3.5 mm Mini Audio Output
1x DE-9/DB-9 (RS-232) Control Input
1x RJ45 (Ethernet) LAN Input/Output
1x 1/8" / 3.5 mm Mini Control Input
1x USB-A Data, Power Input/Output
Light Source Laser Phosphor
Image Display
Display System 3-Chip 0.76" LCD
Native Resolution 1920 x 1200
Supported Resolutions
Minimum: 640 x 480 @ 60 Hz
Maximum: 4096 x 2160 @ 24/25 Hz
Maximum Brightness
White: 6000 Lumens
Color: 6000 Lumens
6500 Lumens (Center)
Aspect Ratio Native: 16:10
Scan
Horizontal: 15 to 93 kHz
Vertical: 23 to 63 Hz
Lens
Includes Lens Yes
Focus Manual Powered
Lens Shift Vertical: -5 to 70%,Horizontal: -32 to 32%
Optical Zoom Powered: 1.6x
Throw Ratio 1.39 to 2.23:1
Projection Size 40 to 600" / 1.0 to 15.2 m
Features
Keystone Correction Horizontal: ± 30°,Vertical: ± 30°
HDR Support No,
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes
Projection Tilt Option No
Input/Output Connectors
Inputs/Outputs
1x HDMI Audio, Video Input
1x DE-15/DB-15 Video Input
1x DVI-D Video Input
1x 1/8" / 3.5 mm Mini Audio Input
1x RJ45 (HDBaseT) Audio, Control, LAN, Video Input
1x BNC Video Input
1x DE-15/DB-15 (VGA) Video Output
1x DVI-D Video Output
1x 1/8" / 3.5 mm Mini Audio Output
1x DE-9/DB-9 (RS-232) Control Input
1x RJ45 (Ethernet) LAN Input/Output
1x 1/8" / 3.5 mm Mini Control Input
1x USB-A Data, Power Input/Output
HDCP Support Not Specified by Manufacturer
Hardware
Bluetooth No
General
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours,Medium Brightness: 30,000 Hours
Fan Noise Full Brightness: 36 dB,Medium Brightness: 34 dB
Input Power 100 to 240 VAC, 50 / 60 Hz at 2.2 to 5.1 A
Power Consumption Full Brightness: 397 W,Medium Brightness: 288 W,Standby Mode (Lamp Off): 0.5 W
Operating Temperature 32 to 113°F / 0 to 45°C
Storage Temperature 14 to 140°F / -10 to 60°C
Operating Humidity 20 to 80%
Storage Humidity 20 to 80% (Non-Condensing)
Dimensions (W x H x D) 18.1 x 6.7 x 19.4" / 460.0 x 169.0 x 494.0 mm (Without Protrusions)
Weight 28.7 lb / 13 kg
Packaging Info
Package Weight 36.87 lb
Box Dimensions (LxWxH) 24.8 x 22.3 x 12.9"
