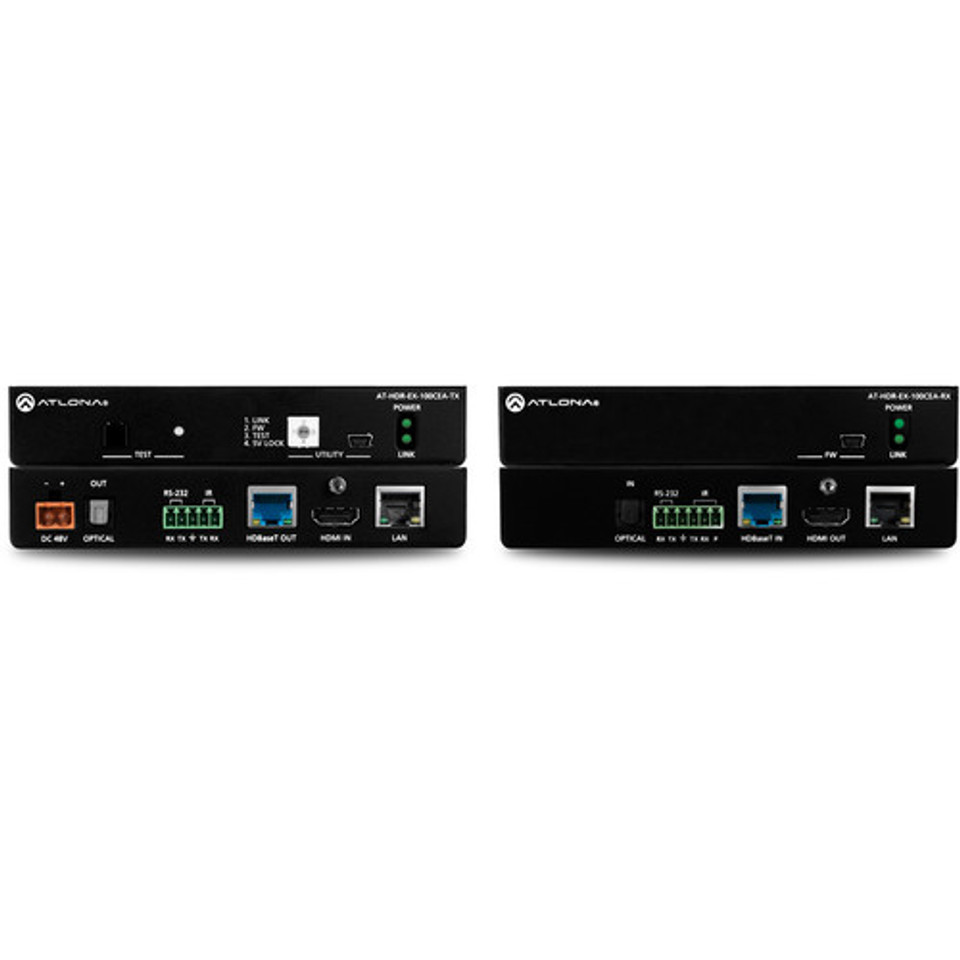

Atlona AT-HDR-EX-100CEA-KIT 4K HDR HDMI HDBaseT Transmitter and Receiver Set with Ethernet, Control, PoE and Return Audio (330')

Atlona

(No reviews yet) Write a Review
$1,331.00
SKU:
AT-HDR-EX-100CEA-KIT
UPC:
846352005795
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

Atlona AT-HDR-EX Overview

Transmit up to DCI 4K/60 and HDR content with visually lossless compression using the Atlona 4K HDR HDMI HDBaseT Transmitter and Receiver Kit with Ethernet, Control, PoE and Return Audio. Suitable for use in residential, commercial, and professional AV applications. The extender applies minimal compression and carries content at data rates from 10 to 18 Gb/s. This allows transmission of DCI 4K video at 60 Hz and 4:4:4 sampling or 4K HDR10 video at 60 Hz over a single Cat 5e - Cat 7 cable, enabling you to connect 4K and HDR sources and displays. At the same time, the extender supports all audio and color space formats supported by the HDMI 2.0b specification.

The transmitter/receiver kit passes IR and RS-232 control, as well as passing Metadata for your HDR content. It can transmit up to 330' when using Cat 6 or better cable, distance is lessened when using Cat 5e cable. An optical audio return (TOSLINK) from television to an AV receiver is supported. The system requires only a single 48-volt power supply connected to the transmitter.

4K / 4:4:4 Sampling / HDR
  • DCI and UHD 4K capability at 60 Hz with 4:4:4 chroma sampling
  • Compatible with 4K HDR10 at 60 Hz and Dolby Vision at 30 Hz
  • Ideal for DCI/UHD and HDR-capable sources and displays
  • Supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification
HDCP 2.2 Compliant
Allows protected content streams to pass between devices
Up to 330 ft Extension
Extends 4K and 1080p video and audio up to 330'
Visually Lossless Compression
HDBaseT transmission of HDMI signals at up to 18 Gb/s using very light video compression with no latency
Multi-Channel Audio Compliant
  • Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
  • Allows any multi-channel audio stream to be used within a professional audio system
HDBaseT Link Status Testing
  • Free software utility available for download to test the integrity of the HDBaseT cable link between the transmitter and the receiver
  • Provides real-time link status, plus detailed HDBaseT and HDMI signal information
  • Quick, easy verification or troubleshooting of RJ45 termination or twisted pair cable quality
Rear Panel I/O Connectors
  • Rear panel ports allow for simplified cable management and less clutter
Field-Updatable Firmware
  • Front panel USB port for device updates
Power and Link Status LEDs
  • LED indicators provide power and HDBaseT link status information
Low-Profile
  • 1"-high, quarter-rack-width enclosure
  • Keeps devices out of sight when placed in public spaces
5 Volt and Hot Plug Detect emulation for HDMI source and sink communications
Restores +5 volt and HPD signals lost due to issues at the source or display, as well as faulty or long cables. Enables the essential signal handshaking necessary for the source to deliver video content
EDID Support
Supports EDID emulation over the Ethernet cable

Atlona AT-HDR-EXSpecs

Supported Resolutions
Video
4096 x 2160: 60/50/30/25/24
3840 x 2160: 60/50/30/25/24
2048 x 1080p
1920 x 1080p: 60/59.94/50/30/29.97/35/24/23.98
1920 x 1080i 60/59.94/50
1280 x 720p at 60/59.94/50
576p/576i
480p/480i

VESA
2560 x 2048
2560 x 1600
2048 x 1536
1920 x 1200
1680 x 1050
1600 x 1200
1600 x 900
1440 x 900
1400 x 1050
1366 x 768
1360 x 768
1280 x 1024
1280 x 800
1280 x 768
1152 x 768
1024 x 768
800 x 600
640 x 480
Color Space
YUV, RGB
Chroma Subsampling
4:4:4, 4:2:2, 4:2:0
Color Depth
8-, 10-, 12-bit
HDR
4K HDR10 at 60 Hz and Dolby Vision at 30 Hz
Audio Formats
PCM 2 channel
LPCM 5.1
LPCM 7.1
Dolby Digital
DTS 5.1
Dolby Digital Plus
Dolby TrueHD
DTS-HD Master Audio
Dolby Atmos
DTS:X
Audio Sample Rate
32 kHz
44.1 kHz
48 kHz
88.2 kHz
96 kHz
176.4 kHz
192 kHz
Audio Bit Rate
Up to 24-bit
Distance
4K/HD over Cat 6a/7: Up to 330' / 100.58 m
4K/HD over Cat 5e/6: Up to 295.00' / 89.92 m
Bandwidth
18 Gb/s
HDMI
2.0b
CEC
Yes
HDCP
2.2
TMDS Clock Frequency
Max: 600 MHz
Connectors
Transmitter
HDMI In: 1 x Type A
USB: 1 x Mini -A
RS-232 / IR: 1 x 5-pin captive screw
HDBaseT: 1 x RJ45
LAN: 1 x RJ45
Optical Out: 1 x TOSLINK
Power: 1 x 2-pin captive screw

Receiver
HDMI Out: 1 x Type A
USB: 1 x Mini -A
RS-232 / IR: 1 x 6-pin captive screw
HDBaseT: 1 x RJ45
LAN: 1 x RJ45
Optical In: 1 x TOSLINK
Indicators & Controls
Test Button: 1 x Momentary, Tact-type
Test LED: 1 x Tri-color LED (green, amber, red)
Power LED: 1 x Green
Link LED: 1 x Amber
Certification
CE, FCC
Operating Temperature
32 to 122°F (0 to 50°C)
Humidity
20 to 90%, non-condensing
Storage Temperature
-4 to 140°F (-20 to 60°C)
Power Consumption
Transmitter: 5.25 W
Receiver: 7.55 W
Power Supply
Input: 100 - 240 VAC, 50/60 Hz
Output: 48 VDC, 0.83 A
Certification: CE, FCC, cULus, RoHS, CCC, RCM
Dimensions
Transmitter: 1.02 x 5.74 x 3.74" / 2.59 x 14.58 x 9.5 cm
Receiver: 1.02 x 5.74 x 3.81" / 2.59 x 14.58 x 9.68 cm
Weight
Transmitter: 0.89 lb / 0.4 kg
Receiver: 0.87 lb / 0.4 kg
Packaging Info
Package Weight
3.45 lb
Box Dimensions (LxWxH)
13.7 x 8.1 x 2.6"
