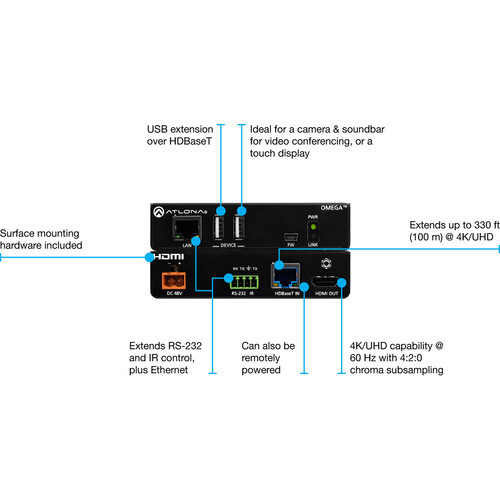

Receive and convert an incoming HDBaseT signal to HDMI and connect it to a display, screen, or projector with the Omega 4K UHD HDMI/USB-over-HDBaseT Receiver from Atlona. This receiver offers connections for HDMI video with embedded audio, USB, power, audio extraction, CEC pass-through, and IR, IP, and RS-232 control, all over a single HDBaseT connection. It is compatible with signaling and power to/from Atlona Omega series transmitters and Omega Matrix switchers.
HDBaseT is advantageous as it allows for longer cable distances than direct HDMI and USB connections, while carrying other important signals along a single cable. It can receive and output via two USB type-A connectors to provide keyboard and mouse control from a distance up to 330', and it can also provide 2.5W power to each of your USB peripherals. The AT-OME-EX-RX receives signals from up to 330' at 1080p with Cat 5e/6 cable or up to DCI/UHD 4K using Cat 6a/7 cable. You can pass through IP and/or RS-232 control via the HDBaseT connection and output control signaling via RJ45 or via the 3-pin RS-232 output.
Resolutions are supported up to DCI/UHD 4K, and HDCP 2.2 is supported in order to play protected high-resolution content. A power supply is included and the receiver sends downstream power via the HDBaseT connection, so no separate power supply is required for a compatible transmitter that supports PoE via HDBaseT. It can also be powered using an Omega Matrix switch with PoE.
The OME-EX-RX and an Omega Series switcher together provide a comprehensive and cost-effective integration solution for meeting rooms and other AV presentation spaces.
The OME-EX-RX and a compatible Omega Series transmitter or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with computers, cameras, speakerphones, and microphones. They can also provide AV and USB extension for a touch-enabled display, allowing remote PC control at a meeting table or other location.
The OME-EX-RX is not compatible with the Atlona HDVS-300 system for USB extension.
Receives from up to 330' at 1080p with Cat 5e/6 or UHD 4K using Cat 6a/7 cable.
Two USB type A ports for peripheral devices such as a camera or display, each supporting USB 2.0 devices, USB 3.0 devices compatible with USB 2.0, and legacy USB 1.x peripherals, providing an ideal USB integration solution for software video conferencing and other applications.
Compatible with sources up to DCI/UHD 4K60 4:2:0 and DCI/UHD 4K30 4:4:4 and supports HDMI data rates up to 10 Gb/s from computers, media players, and UHD Blu-ray players.
Adheres to the latest specification for High-Bandwidth Digital Content Protection and allows protected content stream to pass between authenticated devices.
Industry standard IEEE 802.3af PoE is supplied by an Omega Series switcher over HDBaseT, or it can be locally powered and supply IEEE 802.3af PoE over HDBaseT to an Omega Series transmitter.
Passes through multi-channel audio formats such as PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X.
Device can be updated in the field via the mini-USB port.
LED indicators provide power and HDBaseT link status information.
Easy installation into confined spaces below tables, in furniture, and behind or above displays and includes mounting hardware for installation onto surfaces.
Atlona AT-OME-EXSpecs
| Inputs |
1x RJ45 (HDBaseT) Female
|
| Outputs |
1x HDMI (HDMI 2.0) Female
2x USB-A Female
1x Block 4-Pin (RS-232) Female
|
| Embedded Audio Output |
HDMI: 2-Channel
RJ45: 2-Channel
|
| Other I/O |
1x RJ45 10/100 Ethernet Input/Output
1x Mini-USB Input
|
Standards
| HDCP Support |
Yes, Version 2.2
|
Transmission
| Max Transmission Distance |
DCI 4K, UHD 4K:
295.3' / 90 m (via Cat 5e)
1080p, DCI 4K, UHD 4K:
328.1' / 100 m (via Cat 6/6a/7)
1080p:
328.1' / 100 m (via Cat 5e)
|
| Video Format |
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)
DCI 4K: 24/25/30/50/60 fps
UHD 4K: 24/25/30/50/60 fps
1080p: 23.98/24/25/29.97/30/59.94/60 fps
1080i: 25/29.97/30 fps
720p: 50/59.94/60 fps
576p: 50 fps
PAL: 25 fps
480p: 59.94/60 fps
NTSC: 30 fps
|
| PC Resolutions |
HDMI: 2560 x 1600
HDMI: 2048 x 1536
HDMI: 1920 x 1200
HDMI: 1680 x 1050
HDMI: 1600 x 1200
HDMI: 1440 x 900
HDMI: 1400 x 1050
HDMI: 1280 x 1024
HDMI: 1200 x 800
HDMI: 1366 x 768
HDMI: 1360 x 768
HDMI: 1152 x 864
HDMI: 1024 x 768
HDMI: 800 x 600
HDMI: 640 x 480
|
| Audio Format |
Analog: 192 kHz
|
| DTS Compatibility |
DTS, DTS-HD Master Audio, DTS:X
|
| Dolby Compatibility |
Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
|
| Supported Cable Types |
Cat 5e/6/6a/7
|
Power
| Power I/O |
1x Mini-DIN 4-Pin (48 VDC at 0.8 A) Input
|
| PoE Support |
PoE 802.3af
|
| Power Consumption |
Power Supply: 100 to 240 VAC (18.67 W)
|
General
| Certifications |
CE, FCC, UL
|
| Operating Conditions |
32 to 82°F / 0 to 50°C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C
|
| Dimensions |
5 x 4.3 x 1" / 127 x 109 x 26 mm
|
| Weight |
14.5 oz / 410 g
|
Packaging Info
| Package Weight |
2.5 lb
|
| Box Dimensions (LxWxH) |
13.8 x 8.1 x 2.9"
|
