Product Overview
Atlona AT-OME-EX Overview

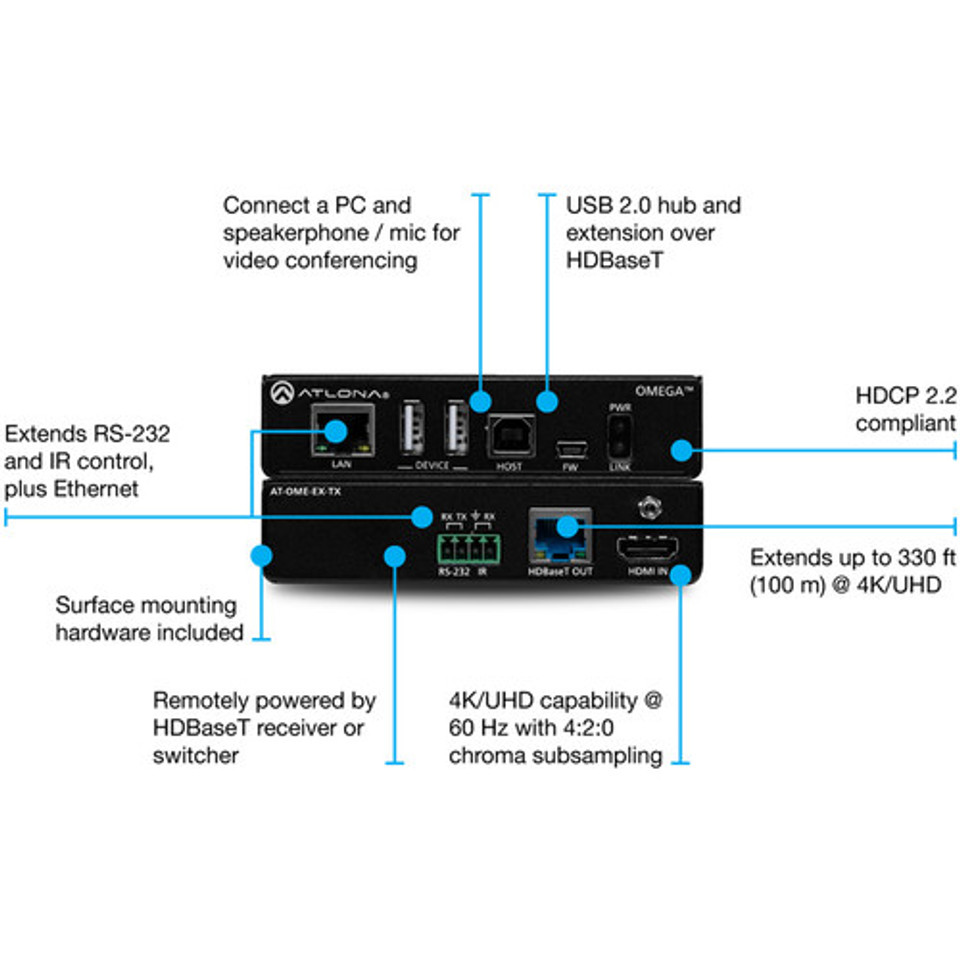

The Omega 4K/UHD HDMI/USB over HDBaseT Transmitter from Atlona is an HDBaseT transmitter for video up to 4K60 4:2:0 plus embedded audio, control, Ethernet, and USB over distances up to 330'. Part of the Omega series of integration products for modern AV communications and collaboration, the OME-EX-TX is HDCP 2.2 compliant and transmits IR, RS-232, and IP control signals. With a matching HDBaseT receiver, the integrated USB extension is ideal for software video conferencing and the use of touch or interactive displays. The OME-EX-TX includes a USB host for a computer, plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.
Specifications
| Video | |||||||||||
| HDMI Specification | HDMI 2.0, HDCP 2.2 | ||||||||||
| TMDS Clock | 300 MHz | ||||||||||
| UHD/HD | 4096×2160(DCI)@60*/30/24 Hz, 3840×2160(UHD)@60*/50/24/25/30 Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i@25/29.97/30 Hz, 720p@30/50/59.94/60 Hz | ||||||||||
| VESA | 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480 | ||||||||||
| VESA 21:9 | 2560×1080 @ 30 Hz 4:4:4 2560×1080 @ 60 Hz 4:4:4 3440×1440 @ 30 Hz 4:4:4 3440×1440 @ 50 Hz 4:4:4 3840×1600 @ 30 Hz 4:4:4 |
||||||||||
| Color Space | YUV, RGB | ||||||||||
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 | ||||||||||
| Color Depth | 8-bit, 10-bit, 12-bit | ||||||||||
* 4K/UHD @ 60 Hz only supports 4:2:0.
| Audio | |||||||||||
| Pass-through | PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos®, DTS®, DTS-HD Master Audio™, DTS:X | ||||||||||
| Sample Rate | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | ||||||||||
| Bit Depth | Up to 24-bit | ||||||||||
| USB | |||||||||||
| Signal | 2.0 | ||||||||||
| Maximum Data Rate | 120 Mbps | ||||||||||
| Internal Hubs | 1 USB hub | ||||||||||
| Control | |||||||||||
| CEC | Pass-through | ||||||||||
| RS-232 | Pass-through from control system to sink device; supports baud rates from 2400 to 115200 | ||||||||||
| IR | Pass-through from control system to sink device | ||||||||||
| IP | Pass-through from control system to sink device up to 100 Mbps over HDBaseT | ||||||||||

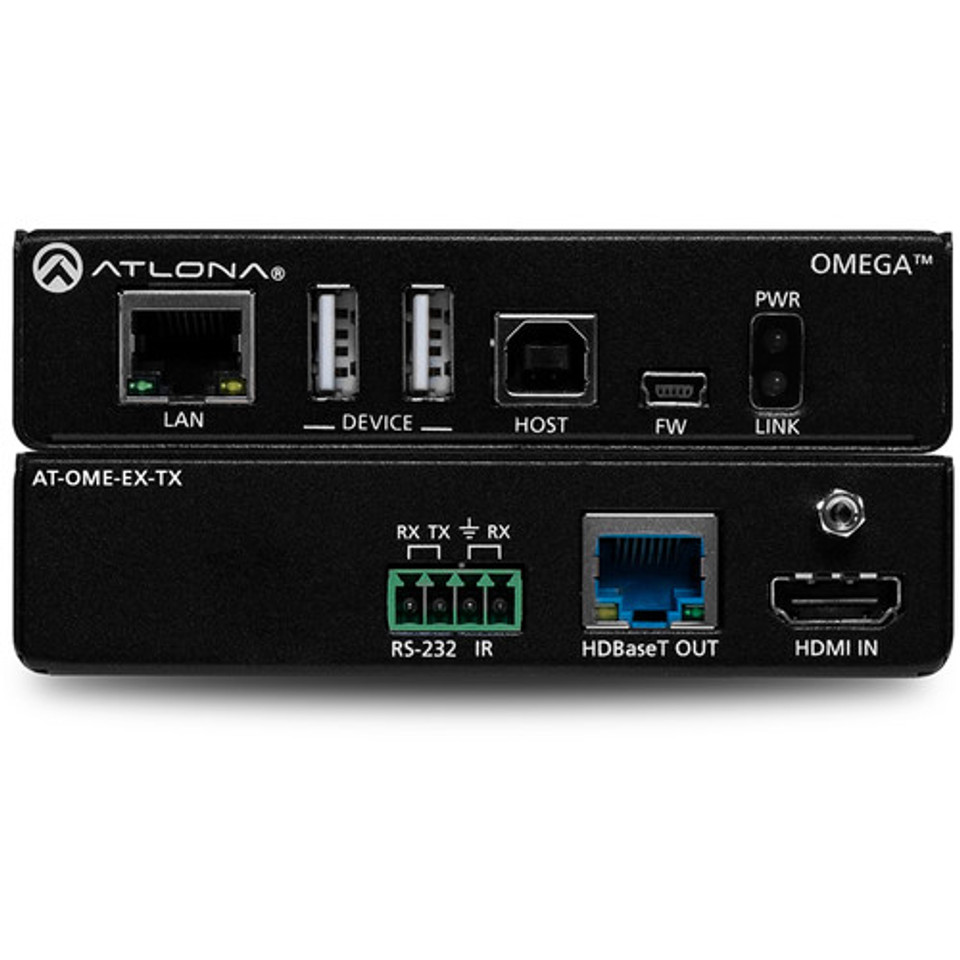

| Connectors | |||||||||||
| HDMI IN | 1 – Type A, 19-pin female | ||||||||||
| FW | 1 – mini-USB | ||||||||||
| HDBaseT OUT | 1 – RJ45 | ||||||||||
| HOST | 1 – USB Type-B | ||||||||||
| DEVICE | 2 – USB Type-A | ||||||||||
| LAN | 1 – RJ45, 10/100 Mbps | ||||||||||
| RS-232 / IR | 1 – captive screw, 4-pin | ||||||||||
| Indicators and Controls | |||||||||||
| PWR LED indicator | 1 – LED, green | ||||||||||
| LINK LED indicator | 1 – LED, yellow | ||||||||||
| Resolution / Distance | 4K/UHD – Feet / Meters | 1080p – Feet / Meters | ||
| HDMI IN/OUT | 15 | 5 | 30 | 10 |
| CAT5e | 295 | 90 | 330 | 100 |
| CAT6/6a/7 | 330 | 100 | 330 | 100 |
| Power | |||||||||||
| Consumption | 13.68 W | ||||||||||
| USB Power | 2.5 W per USB device interface | ||||||||||
| Safety | CE, FCC, cULus | ||||||||||
| Environmental | |||||||||||
| Operating Temperature | 0° to 122° F 0° – 50° C |
||||||||||
| Storage Temperature | -4° to +140° F -20° to +60° C |
||||||||||
| Operating Humidity (RH) | +20 to +90%, non-condensing | ||||||||||
| Chassis | |||||||||||
| Dimensions (H x W x D) | 1.02 in x 4.29 in x 5.00 in 26 mm x 109 mm x 127 mm |
||||||||||
| Weight | 0.89lb, 406g | ||||||||||
| Safety | CE, RoHS, FCC | ||||||||||
