Product Overview
The RoboSHOT 12E HDBT OneLINK Bridge Express System from Vaddio combines a white RoboSHOT 12E HDBT IP Camera System with a OneLINK Bridge Express A/V interface. The system captures 1080p60 video from a single 1/2.5" type CMOS sensor and transmits it up to 328' over a Cat 5 cable. The combination enables powering the camera, sending control signals, and transmitting video over a single Ethernet cable.

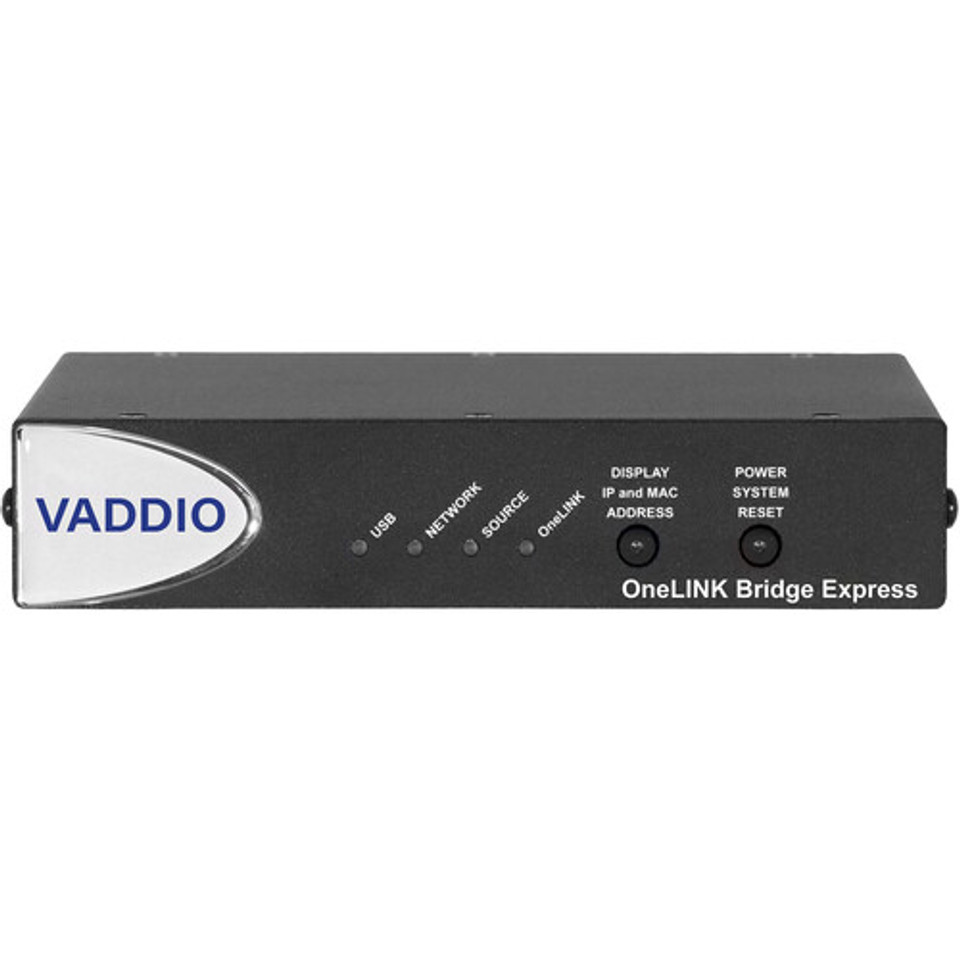

The PTZ camera features a 12x optical zoom with a 70.2° wide horizontal field of view. The OneLINK Bridge Express features HDMI, USB 3.0, and IP video outputs, audio inputs and outputs, and accepts HDBaseT input as well as RS-232 and Ethernet.

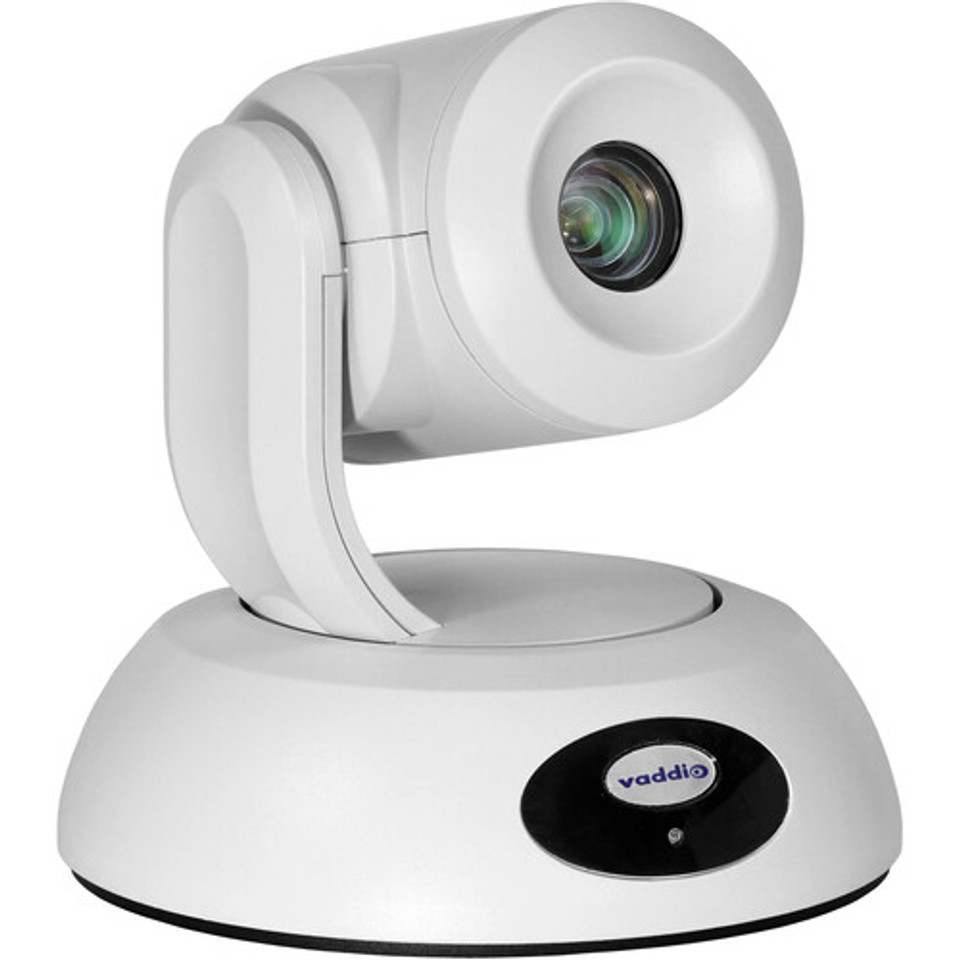

apture full motion video in conference rooms, training rooms, and classrooms with the white RoboSHOT 12E HDBT IP Camera System from Vaddio. Designed with 12x optical zoom and a 1/2.5" CMOS sensor, the camera delivers high-definition 1080p/60 video resolution. It features image signal processing and a wide dynamic range for enhanced lighting in dimly lit conditions. For smooth and natural motion, the camera features tri-synchronous motion technology allowing all three axes of the camera to move simultaneously. This camera can be controlled via integration-ready Telnet, serial RS-232 control, or an included IR remote control.
The RoboSHOT 12E provides a web-based user interface allowing configuration, management, and control from anywhere in the world over the IP network making this camera ideal for remote management, network operating centers, and overall IT control. Simply enter the camera's streaming URL into any standards-based H.264, RTSP format media player. This camera also allows you to simultaneously stream live events over YouTube, Livestream, and Facebook with the HDBaseT, HDMI, and IP video outputs. To simplify cabling and extend installation distance, you can connect it directly to HDBaseT-compatible devices or pair it with Vaddio OneLINK receivers.
Key Features:
- 12x Optical Zoom
- 1/2.5-type Exmor R CMOS sensor
- 70.2° horizontal field of view
- Simultaneous HDbaseT, HDMI and IP H.264 streaming
- Remote IP Management
- Simple, clutter-free camera extension with HDBaseT technology
- Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
- Bridges audio and video for easy soft-client conferencing
- Simultaneous HDMI, USB 3.0, and IP Streaming outputs
- Configurable audio matrix with AEC
- Up to 1080p/60 resolution available over uncompressed USB
Specifications
Dimensions & Measurements
Depth 6.75 in (17.1 cm)
Distance 328 in (833.1 cm)
Height 6.94 in (17.6 cm)
Operating Temperature 32° to 104°F (0° to 40°C)
Product Weight 4.85 lbs (2.2 kg)
Width 7.05 in (17.9 cm)
