Product Overview
Samsung DM65D Overview

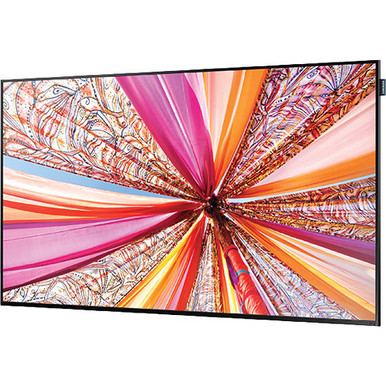

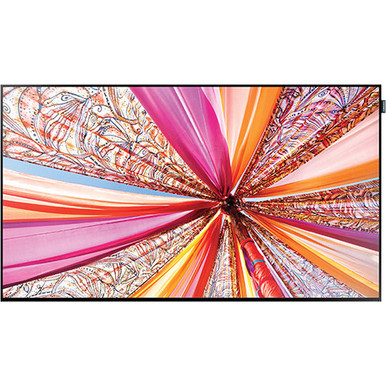

Display 1080p business content with the Samsung DM-D Series 65" Full HD Commercial LED Monitor. This model is endowed with a 65" LED display and features a 1920 x 1080 native resolution for viewing detailed high-definition content. This monitor's 450 nit brightness output and 4000:1 contrast ratio showcases its ability to handle light and dark on-screen images. A 60 Hz refresh rate and 6.5ms response time are incorporated to combat image blur and distortion on fast moving images.
The integrated media player allows you to configure your digital signage system without the need for an external media player. For network connectivity, this model has built-in Wi-Fi and Ethernet connectivity. A quad-core processor is also onboard for fast menu navigation and reliable performance.

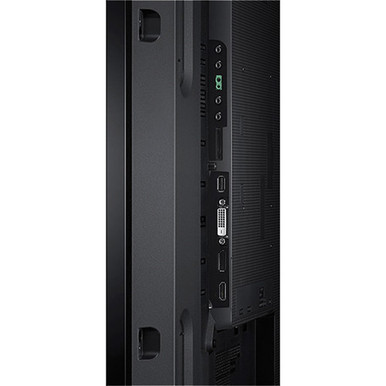

This Samsung commercial monitor features VGA, DVI-D, DisplayPort, and 1 HDMI port for interfacing a variety of video sources. There's even a USB port and an SD card slot onboard for interfacing additional devices. While this monitor does not include a table stand, it is compatible with optional 400 x 400mm mounts for wall placement.
Key Features
- 1080p (1920 x 1080) Native Resolution
- 4000:1 Contrast Ratio
- 450 nits Brightness
- 60 Hz Refresh Rate + 6.5ms Response Time
- Supports Portrait and Landscape
- Built-In Media Player + Quad-Core CPU
- Built-In Wi-Fi Connectivity
- 1 x HDMI / 1 x DisplayPort / 1 x DVI-D
- Integrated SD Card Reader
- Suitable for 24/7 Operation
Embedded SoC Technology
Built-In Wi-Fi
Content Control
LED Backlight Display
Optional Touch Overlay
Additional Features
- Suitable for 24/7 operation
- Slim chassis and industrial design
- DP 1.2 Digital Daisy Chain (HDCP Support)
- Supports landscape and portrait viewing
- Built-in MagicInfo player S2
- Super clear coating
- Temperature sensor
- Video wall (15 x 15)
- Pivot display
- Clock battery (80-hrs clock keeping)
- Built-in speaker
- Magic clone (to USB)
- Auto source switching and recovery
- RS232C/RJ45 MDC
- Plug-and-play
- PIP/PBP support
- Image rotation
- Button lock
- Firmware update over network
- LFD home screen
- PC-less video wall
- Predefined template for vertical usage
- Multi-channel
- Mobile control
- Event schedule
- Backup player
- PC-less touch support with optional accessory
- MagicPresenter
Samsung DM65D Specs
| Screen Size | 65.0" (165.1 cm) |
| Panel Technology | Slim D-LED BLU |
| Refresh Rate | 60 Hz |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Brightness | 450 nits |
| Contrast Ratio | 4000:1 |
| Orientation | Landscape / Portrait |
| Response Time | 6.5 ms (G-to-G) |
| Media Player | Type: Internal CPU: ARM Cortex-A9 1 GHz quad-core RAM: 1.5 GB DDR3 Storage: 4GB FDM Connectivity: USB 2.0 Operating System: Linux |

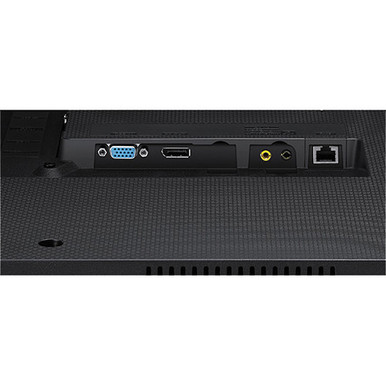

| Input | 1 x HDMI 1 x DisplayPort 1 x VGA (D-Sub 15 Pin) 1 x DVI-D 1 x Video (Composite / Component) 1 x 1/8" (3.5 mm) audio 1 x RS232C 1 x IR, Ambient |
| Output | 1 x 1/8" (3.5 mm) audio 1 x RS232C 1 x DisplayPort (loop) |
| Other Connectors | 1 x RJ45 1 x USB 1 x Power |
| Media Card Slots | 1 x SD |
| Speaker | Built-in |
| Power Requirements | 100 - 240 VAC (+/- 10%), 50 / 60 Hz |
| Power Consumption | Typical: 105 W Maximum: 264 W Standby: <0.5 W |
| Environmental | Operating Temperature: 32 to 104°F (0 to 40°C) Operating Humidity: 10 - 80 % |

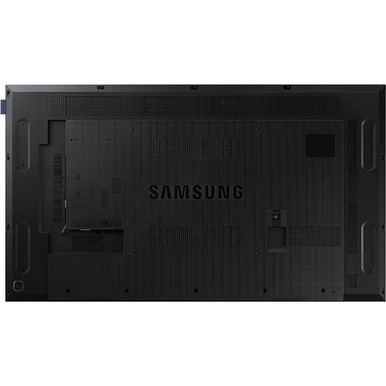

| VESA Compatibility | 400 x 400 mm |
| Compliances | Emission Standard: EMC RoHS Compliant |
| Bezel Width | Top/Side: 0.7" (18.0 mm) Bottom: 0.9" (23.5 mm) |
| Dimensions | 57.8 x 33.4 x 2.2" (146.8 x 84.8 x 5.6 cm) |
| Weight | 60.5 lb (27.4 kg) |
| Package Weight | 84 lb |
| Box Dimensions (LxWxH) | 63 x 38 x 11" |
