Product Overview

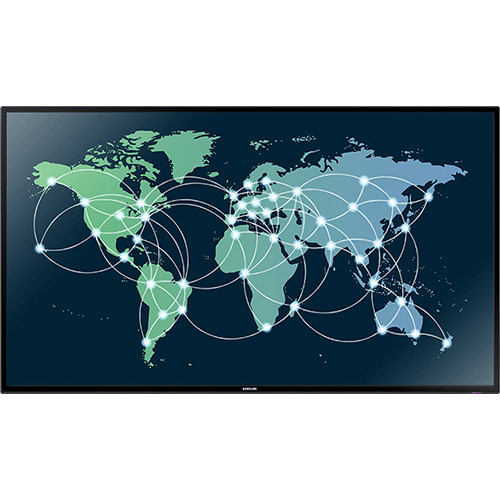

Samsung ED65E Overview
The EDE Series 65" Digital Signage Display from Samsung is equipped with a direct-lit LED panel to provide crisp, clear full HD images and realistic color on a sleek display. A sleek, lightweight design, and slim bezels keep your viewers focused on your presentation. A pivot function gives you the flexibility to display your message vertically or horizontally for the optimal view.
- Offers crisp, clear full HD images and realistic color on a sleek display with Samsung d-LED technology
- Sleek, lightweight design and slim bezels keep your audience focused on your message
- The pivot function gives you the flexibility to display your message vertically or horizontally for the optimal view
- With its slim and lightweight design, the display is easy and economical to install, further helping to reduce startup cost
- Requires less energy, emits less heat, and is durable
Samsung ED65E Specs
Panel
| Diagonal Size | 65" (165 cm) |
| Panel Type | 60 Hz LED |
| Resolution | 1920 x 1080 (FHD) |
| Pixel Pitch (H x V) | 0.744 (H) x 0.744 (V) |
| Brightness | 400 cd/m2 |
| Viewing Angle | 178° horizontal and vertical |
| Display Colors | 10-Bit Dithering: 1.07 billion |
| Active Display Size (H × V) | 56 x 31" (143 x 80 cm) |
| Contrast Ratio | 4000:1 |
| Response Time | 6 ms |
| Color Gamut | 70% |
Display
| Dynamic Contrast Ratio | Mega. DCR (AV Mode) |
| Scanning Frequency | Vertical: 48 to 75 Hz Horizontal: 30 to 81 kHz |
| Pixel Frequency | 148.5 MHz maximum |
Sound
| Speaker | Built in speaker (10 + 10 W) |
Connectivity
| Input | RGB: Analog D-sub, DVI-D Video: CVBS, Component, HDMI Audio: Stereo mini jack USB: USB player |
| Output | Audio: Stereo mini jack |
| External Control | RS232C (in/out) thru stereo jack |
| External Sensor | Yes |
Power
| Type | Internal |
| Power Supply | 100 to 240 VAC (±10%), 50/60 Hz |
| Power Consumption | Maximum: 253 W/hour Typical: 180 W/hour BTU (maximum): 862.73 Sleep Mode: Less than 0.5 W Off Mode: Less than 0.5 W |
Features
| Key Features | LED LFD |
| Special Features | Built in speaker (10 + 10 W), PIP/PBP, narrow bezel, light weight, RS232 in/out 1 x D-Sub & 1 x HDMI |
Operation Conditions
| Hours of Operation | 16/7 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Humidity | 10 to 80% |
Certification
| Safety | EN60950-1 |
| EMC | Class A |
Mechanical
| VESA Mount | 400 x 400 mm |
| Bezel Width | Top/Left/Right: 0.4" (11 mm) Bottom: 0.6" (16.9 mm) |
| Dimensions | 57.9 x 33.3 x 2.2" (147 x 84.8 x 5.62 cm) |
| Weight | 60.4 lb (27.4 kg) |
Packaging Info
| Package Weight | 84 lb |
| Box Dimensions (LxWxH) | 62 x 38.5 x 11" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
